HBD-610kW-610kWh

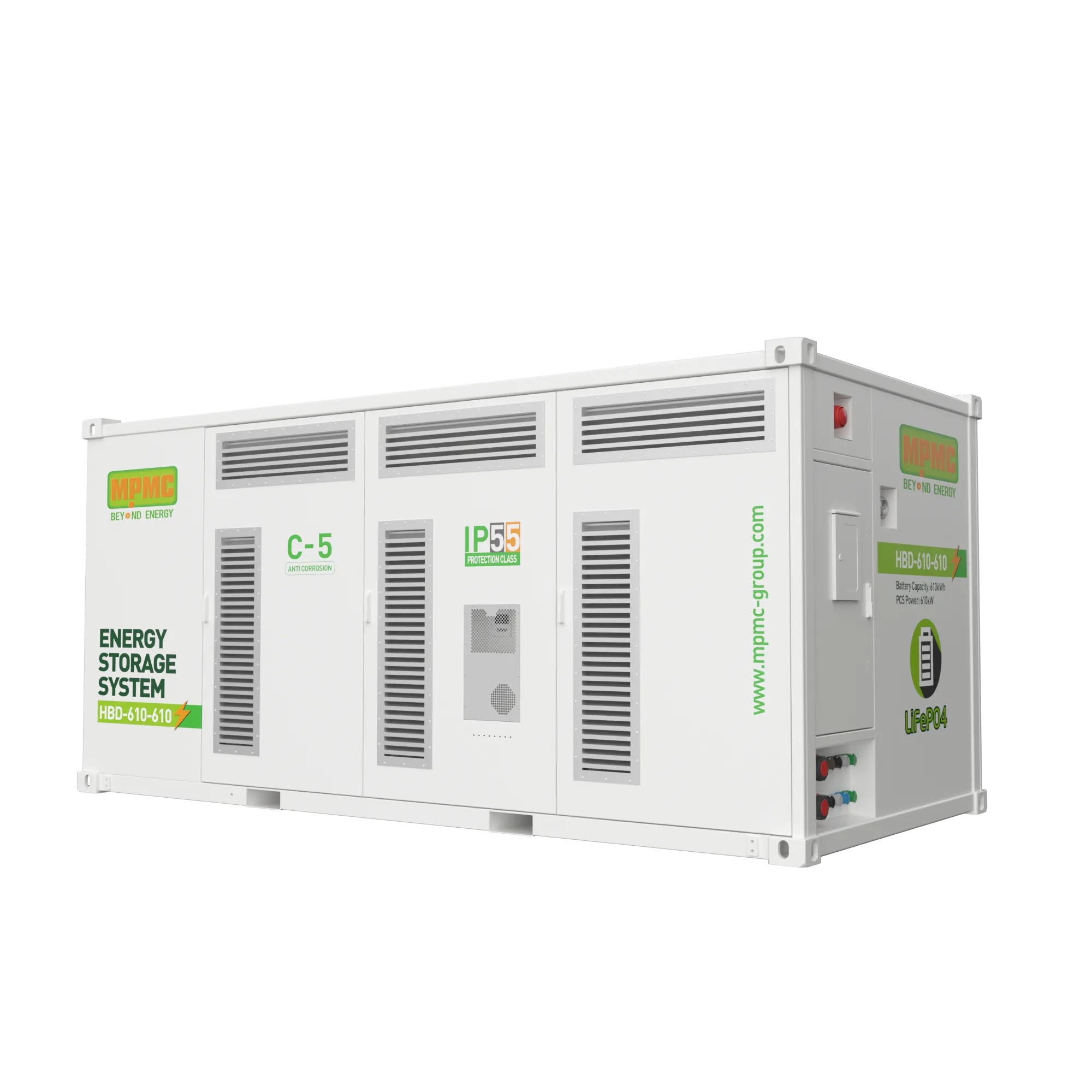

MPMC HBD-610kW-610kWh is a heavy-duty 1C high-power energy storage container built for large-scale heavy-load power demands. Delivering 610kW continuous output and 610kWh capacity, it handles severe peak loads and equipment startup surges perfectly.
Equipped with high-efficiency LCAC liquid cooling and full multi-layer fire safety systems, it runs stably in extreme weather with silent, zero-emission operation. Fitted with heavy-duty quick Powerlock connectors for plug-and-play fast deployment. Ideal for large industrial parks, factory peak shaving, mega construction sites, remote mining projects, large event temporary power and grid backup stations, offering reliable long-duration clean power for high-capacity industrial and engineering applications.
.webp?x-oss-process=image/resize,w_100/quality,q_100)

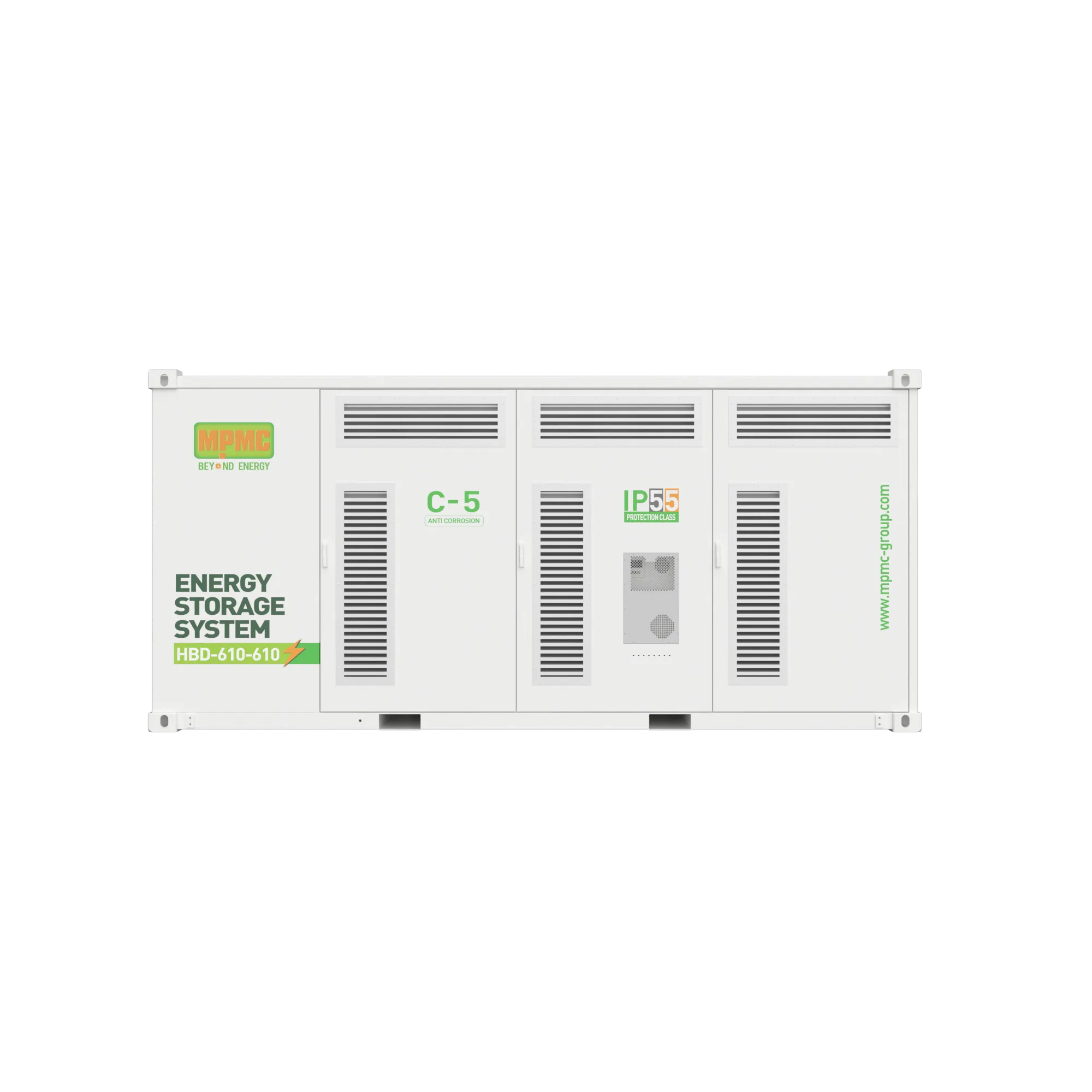

HBD-610kW-610kWh

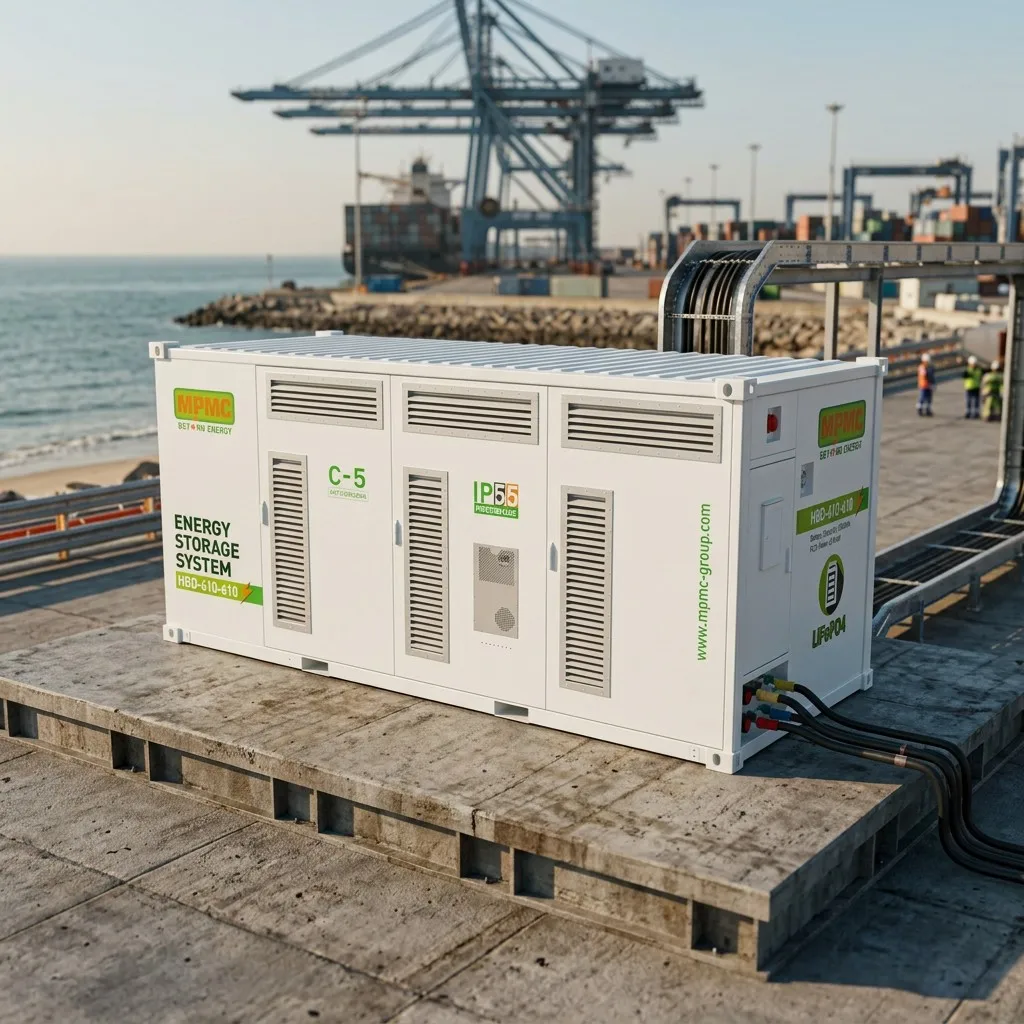

The flagship MPMC HBD-610kW-610kWh is a massive 610kW energy storage powerhouse. Featuring standard C-5 grade anti-corrosion and IP55 protection, it is the ultimate rental energy solution for coastal ports, island microgrids, and utility-scale infrastructure.
Core Advantages
C-5 Marine Grade
Heavy-duty anti-corrosion coating prevents salt-spray damage in coastal ports and islands.
Massive 1C Power
610kW instantaneous output capability effortlessly handles the surges of port cranes and utility grids.

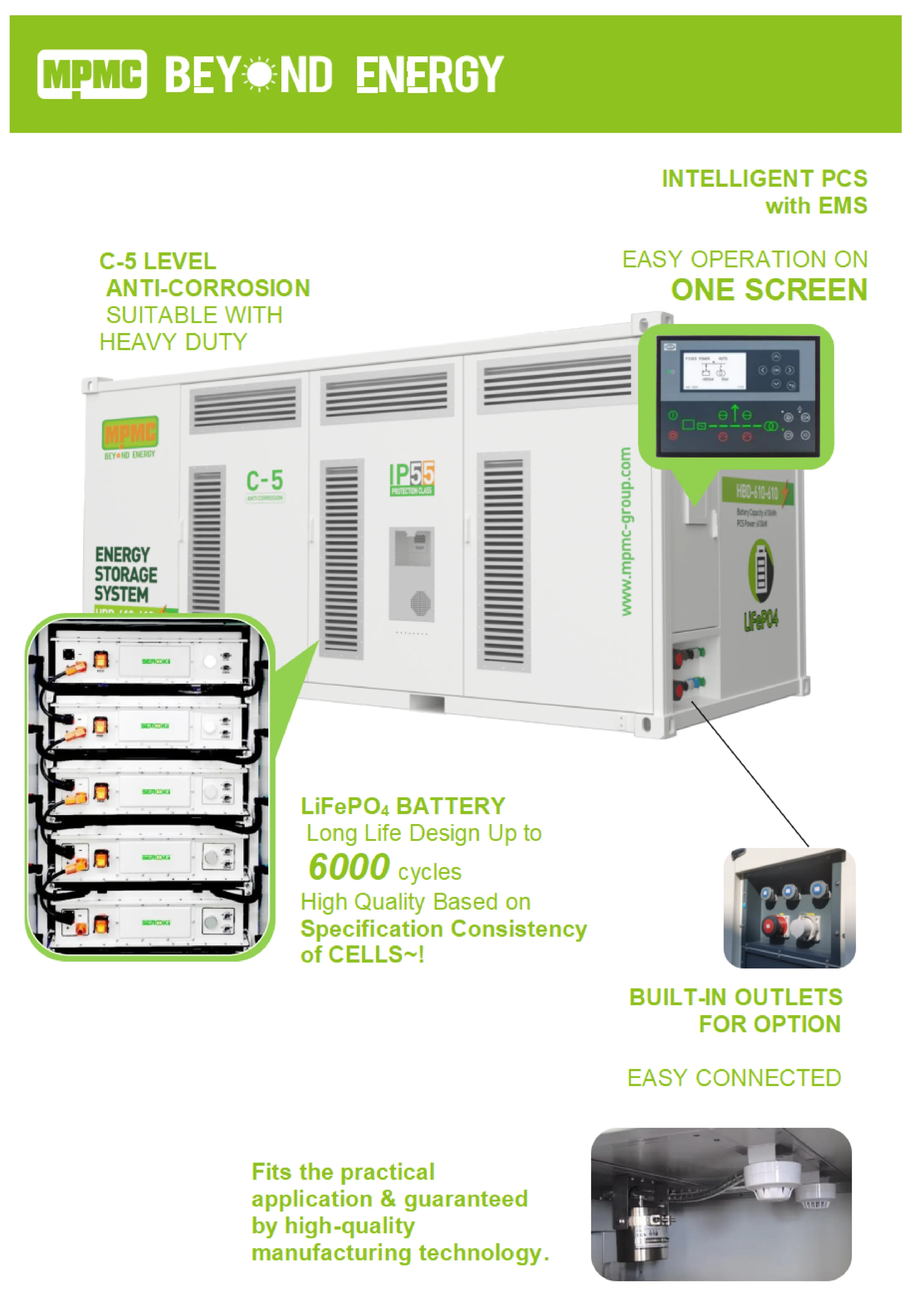

Advanced LCAC
Full-spectrum liquid cooling ensures cell-to-cell consistency even under full 610kW load cycles.
Utility Integration
Equipped with 5x PWS1-135M PCS modules, providing industry-leading reliability and redundancy.
System Specifications
| General Information | |
| Rated Power (Continuous) | 610kW |
|---|---|
| BESS Energy @ 25℃ | 610.6kWh |
| Charge/Discharge Rate | 1C / 1C |
| Cooling System | LCAC (Liquid Cooling) |
| Rated Voltage/Phase | 400Vac/3P (346V~415V changeable) |
| Protection / Corrosion | IP55 / C-5 High Anti-Corrosion |
| Battery System | |
| Pack Capacity | 265Ah |
| Pack Qty. | 15pcs |
| Battery Cluster Voltage | 768VDC |
| Cycle Life @ 90%DOD | 6000 times |
| PCS & Control | |
| PCS Model | PWS1-135M (x5 Modules) |
| PCS Rated Power | 135kW (per module) |
| Control System | Integrated EMS with Grid-Forming Control |
| Physical Parameters | |
| Dimensions (L x W x H) | 4800 * 2250 * 2250 mm |
| Weight | 12 t |
| Loading Capacity | 1 unit/20'GP | 2 units/40'GP |
Technical FAQ
In coastal areas, high humidity and salt spray rapidly corrode standard enclosures. The HBD-610-610 features specialized C-5 high-grade coatings, ensuring a service life exceeding 15 years in extreme maritime environments.

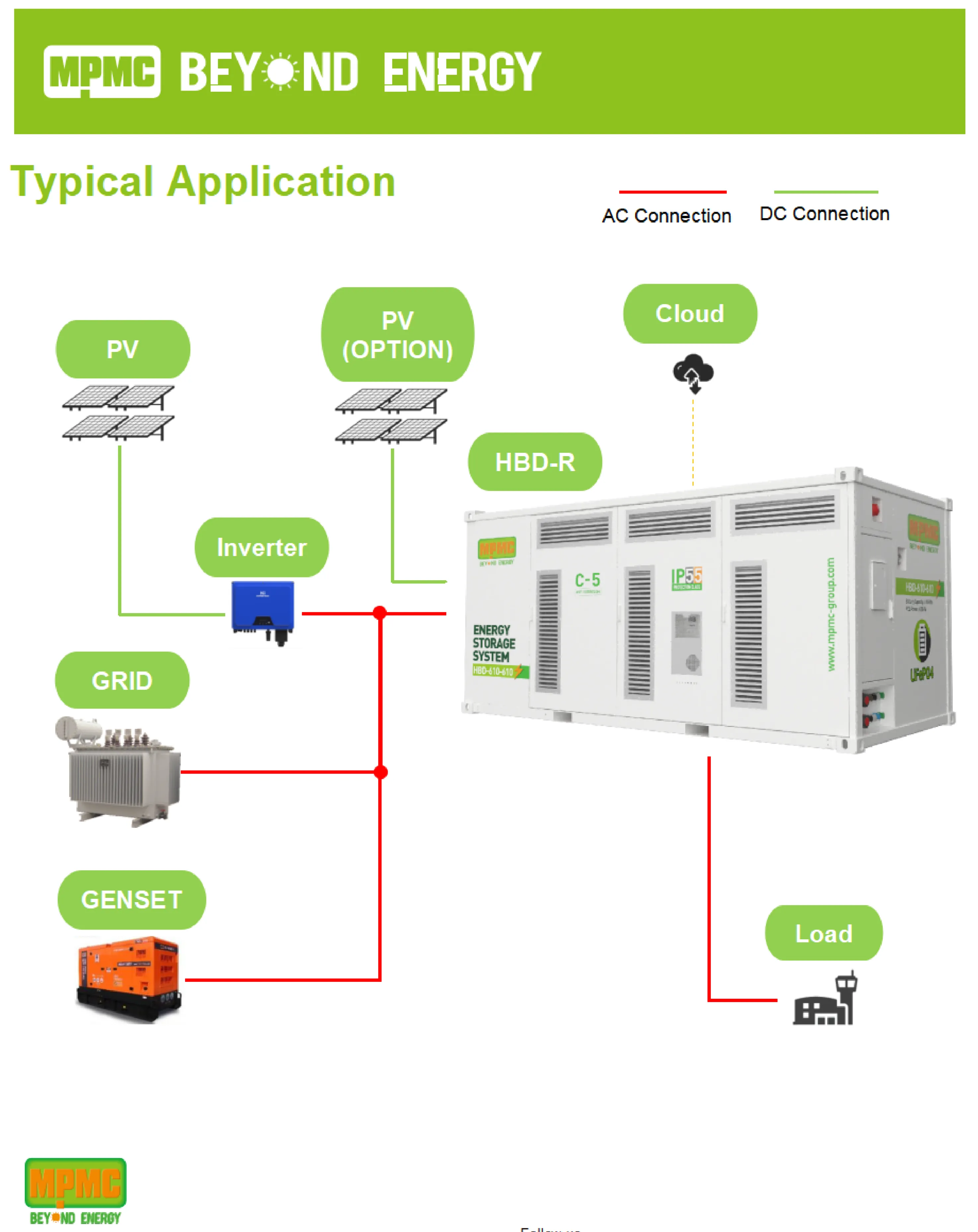

Absolutely. Using its integrated EMS and Grid-forming controllers, multiple units can be synchronized to form a multi-MW energy storage farm for stadiums, large hospitals, or utility peak shaving.
The unit is equipped with a triple-protection system: Aerosol (CE certified) fire suppression, combustible gas (off-gas) detectors, and a standby water spray inlet for maximum jobsite safety.
| Battery | |
| Cell Type | LFP(LiFePO4) |
| Pack Capacity | 40.7 kWh |
| Pack Rated Voltage | 153.6 VDC |
| Cyclic Life | 6000 Times(1C@80%DOD) |
| Battery Voltage of Rack | 768 VDC |
| Connection of Rack | 5S3P |
| PCS | |
| Max. Current (AC) | 926 A |
| Max. Output Power | 610 kW |
| Rated Output Power | 610 kW |
| PF | 1 lagging~1 leading |
| AC Connection | 3W+N+PE |
| Max. Efficiency | 0.989 |
| Transformer | N/A |
| Communication | CAN/RS485/Ethernet |
| Grid-tied Certificates | EN50549,VDE4105,G99 |
| Safety &EMC Certificates | IEC61000,IEC62477 |
| Auxiliary Inverter Device | |
| AC Charger(OPTION) | 0kW as standard (Min.40kW~Max.600kW Changeable) |
| Solar Charger(OPTION) | 0kW as standard (Min.60kW~Max.600kW Changeable) |
| PCS(OPTION) | 610kW as standard (Min.135kW~Max. 610kW Changeable) |
| Cooling System | |
| Battery Cabin | LCAC |
| PCS Cabin | Fans |
| Protection Device | |
| Fire Suppressant | Aerosol (CE) first，water inlet valve reserved |
| Sensor | Smoke,temperature,harmful gas,water immersion,door’s open |
| EMS | |
| Display and Monitor | Local screen |
| Function | Energy management and coordinated control of energy storage system |
