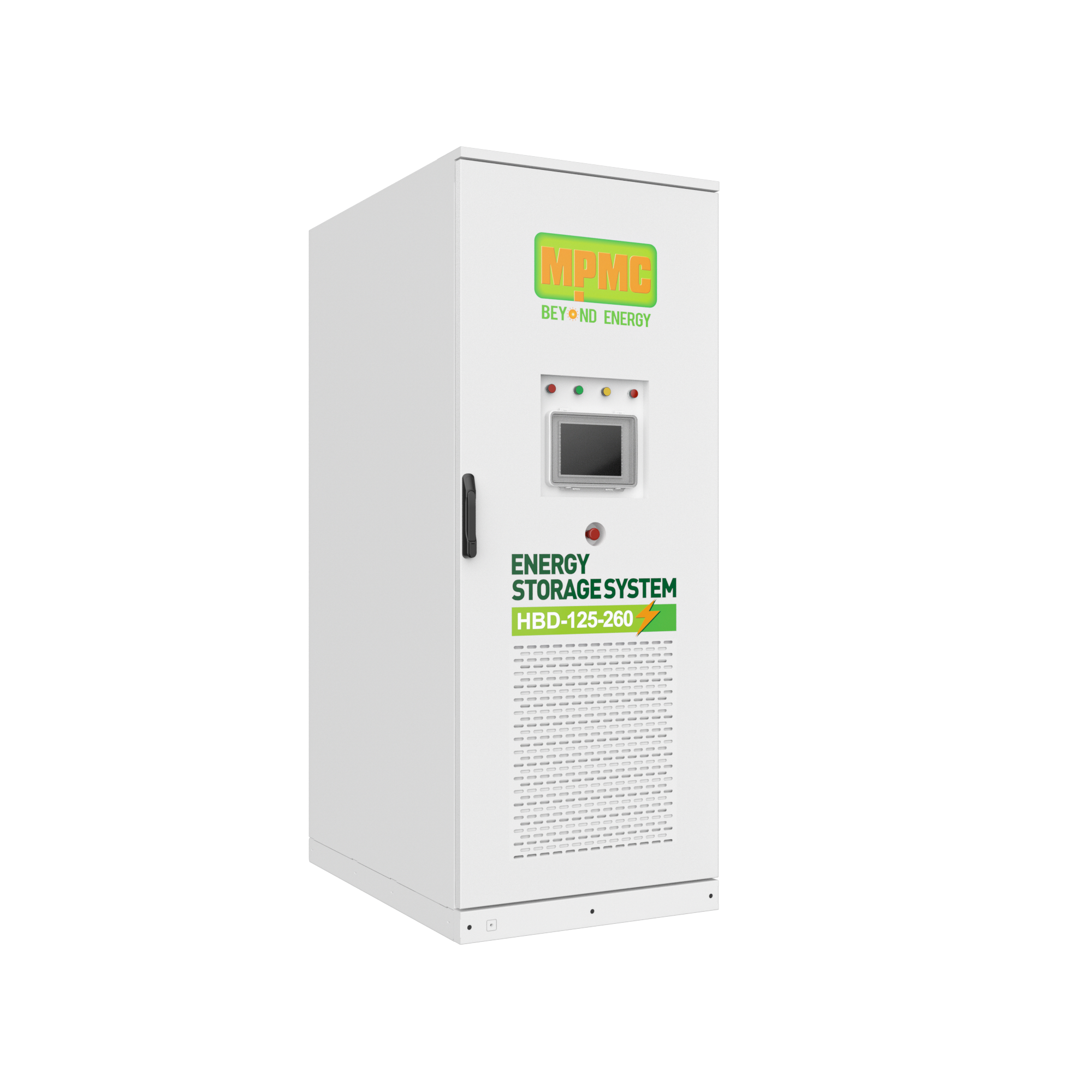

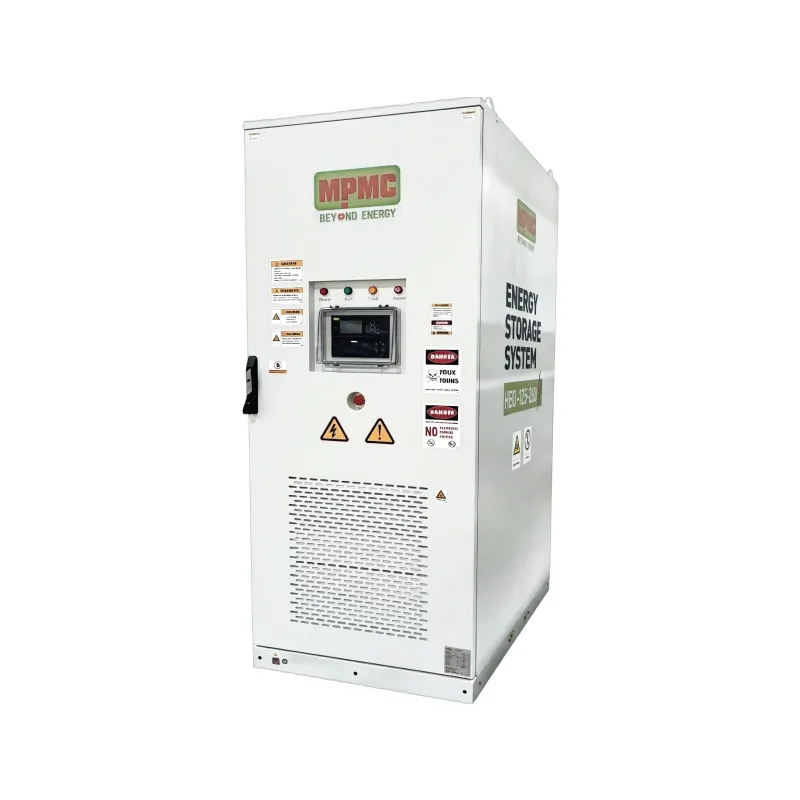

HBD-125kW-260kWh

HBD® is a new range of secure integrated Battery Energy Storage System. This fixed and modular solution includes batteries, PCS, HVLC, fire protection and control system; STS, solar inverter, ATS and auxiliary components for option. The A series can be connected to grid power and assist users in optimizing their power consumption. HBD® is mainly developed for no emission and low noise, Reduce the dependence on grid, Improve power supply quality and Ensure the power consumption of emergency load.

HBD-125kW-260kWh

HBD-125-260 Battery Energy Storage System A Series CATALOG.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Design Standards

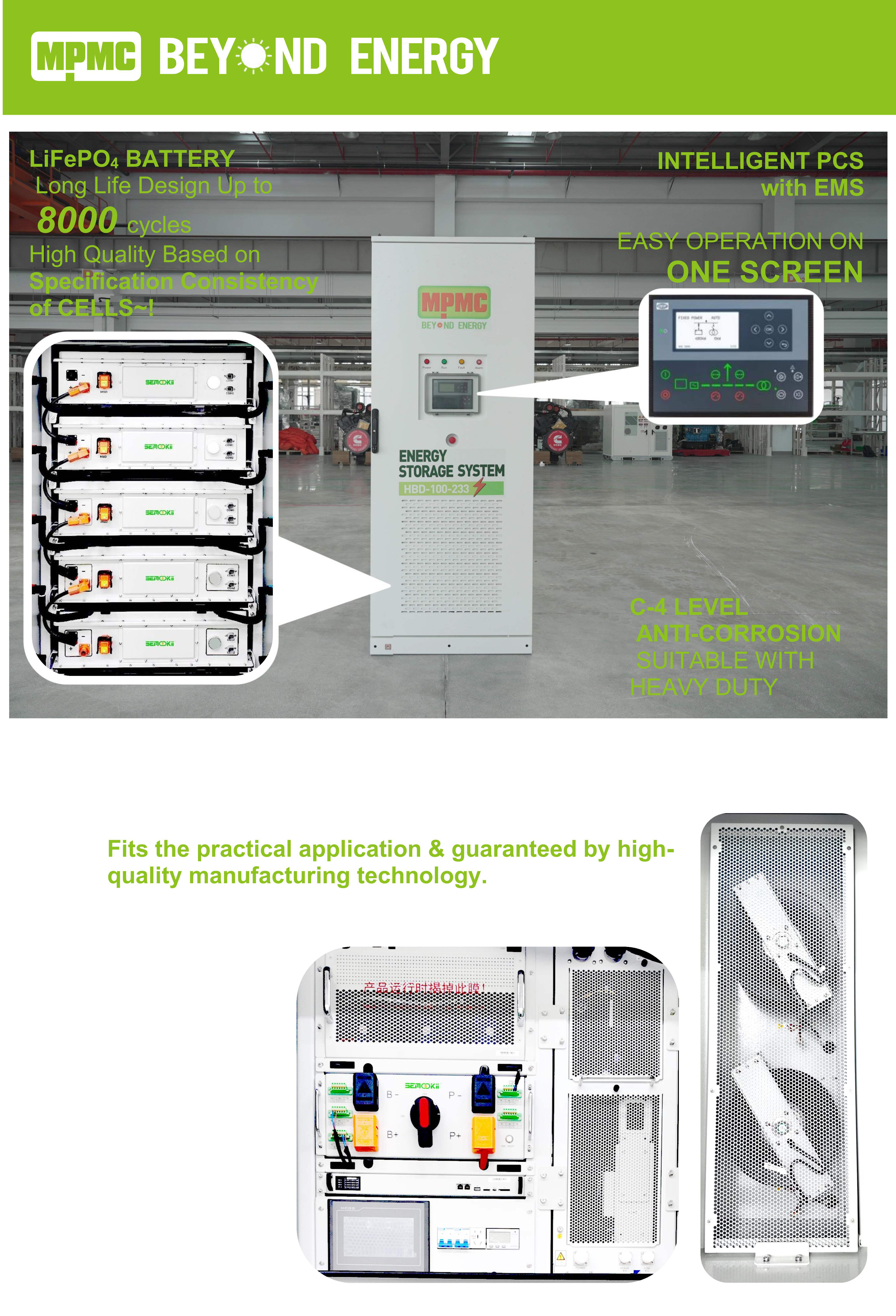

HBD^® is a new range of secure integrated Battery Energy Storage System. This fixed and modular solution includes batteries, PCS and control system; HVLC, fire protection and auxiliary components for option. The A series can be connected to grid power and assist users in optimizing their power consumption. HBD® is mainly developed for no emission and low noise, Reduce the dependence on grid, Improve power supply quality and Ensure the power consumption of emergency load.

Benefits

Integrated installation, convenient storage and transportation;

High return on investment and short payback period;

Simple operation and easy maintenance;

Power and Capacity can be expanded, meet different user needs;

Certification

Specification

General Information
Rated Output Power@25℃		125kVA
Rated Power Factor		0.8 lagging
Rated Output Voltage		380V@50Hz/60Hz,3ph. (400V & 415V available)
Rated Battery Storage Capacity		261.25kWh
Output	Terminals	Copper Busbar
	Sockets	N/A
Protection Class		IP54
Loading Dimension(WDH)		105013002385mm
Net.Weight		2700kg
Loading Capacity	20’GP	N/A
	40’HC	18 units
Discharge Temperature Range		-20~50°C(> 45℃ derating)
Max Altitude		3000m(> 2000m derating)

Battery
Cell Type	LFP(LiFePO4)
Pack Capacity	52.25kWh
Pack Rated Voltage	166.4VDC
Cyclic Life	8000(0.5C@90%DOD)
Battery Voltage of Rack	832VDC
Connection of Rack	5S1P
PCS
Max. Current (AC)	182A
Max. Output Power	150kW
Rated Output Power	125kW
AC Input Voltage Range	380~415Vac
Rated Frequency Range	50/60Hz(±2.5Hz)
PF	1 lagging~1 leading
AC Connection	3W+N+PE
Max. Efficiency	99%
Transformer	N/A
Communication	CAN/RS485
Grid-tied Certificates	EN50549,NRS 097, C10/11,VDE4105, G99
Safety & EMC Certificates	IEC61000, IEC62477
Cooling System
Cooling type	HVLC for Liquid cooling
Fire Protection
Type	Aerosol (CE)
EMS
Display and Monitor	Local screen
Function	Energy management and coordinated control of energy storage system

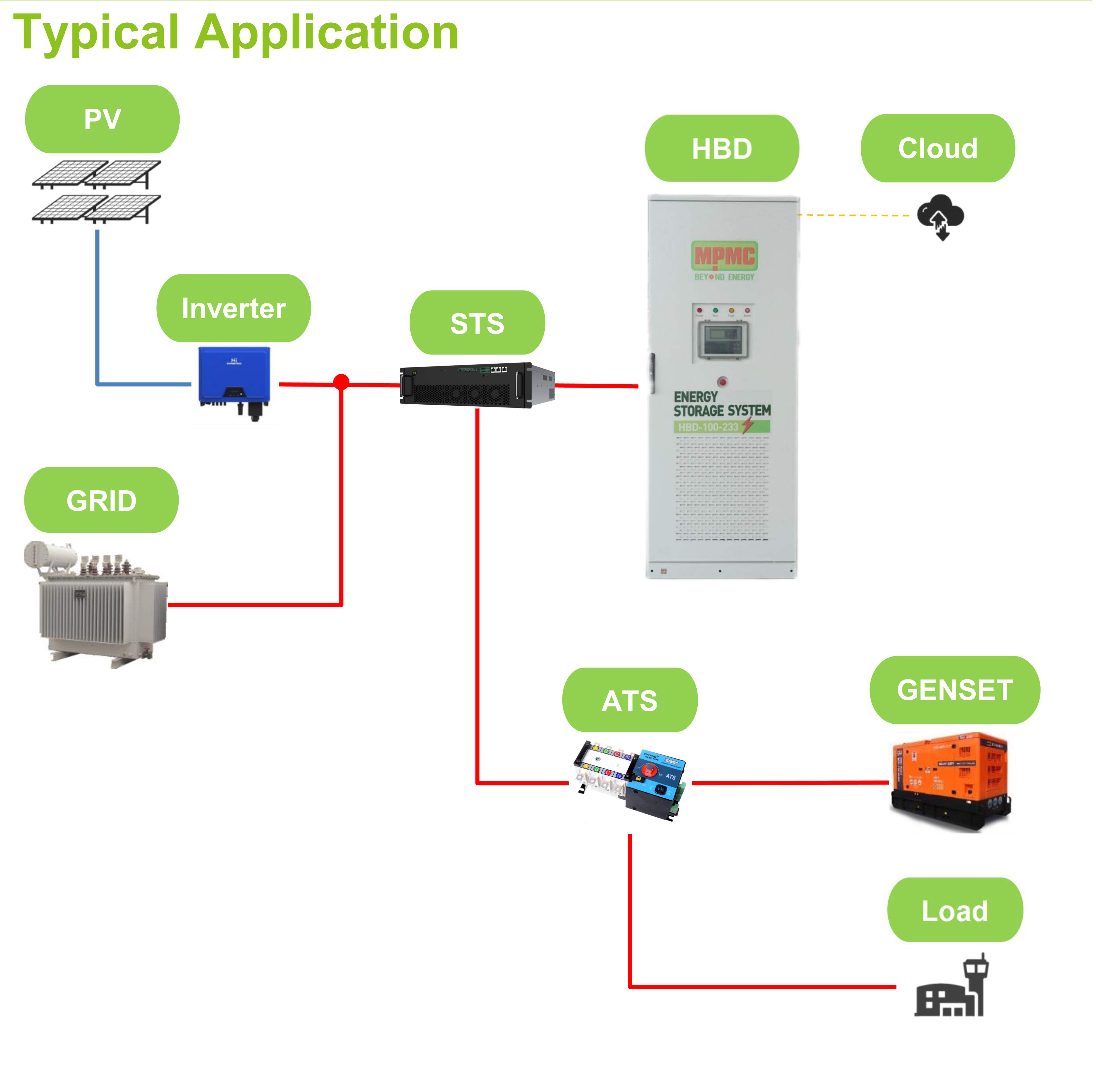

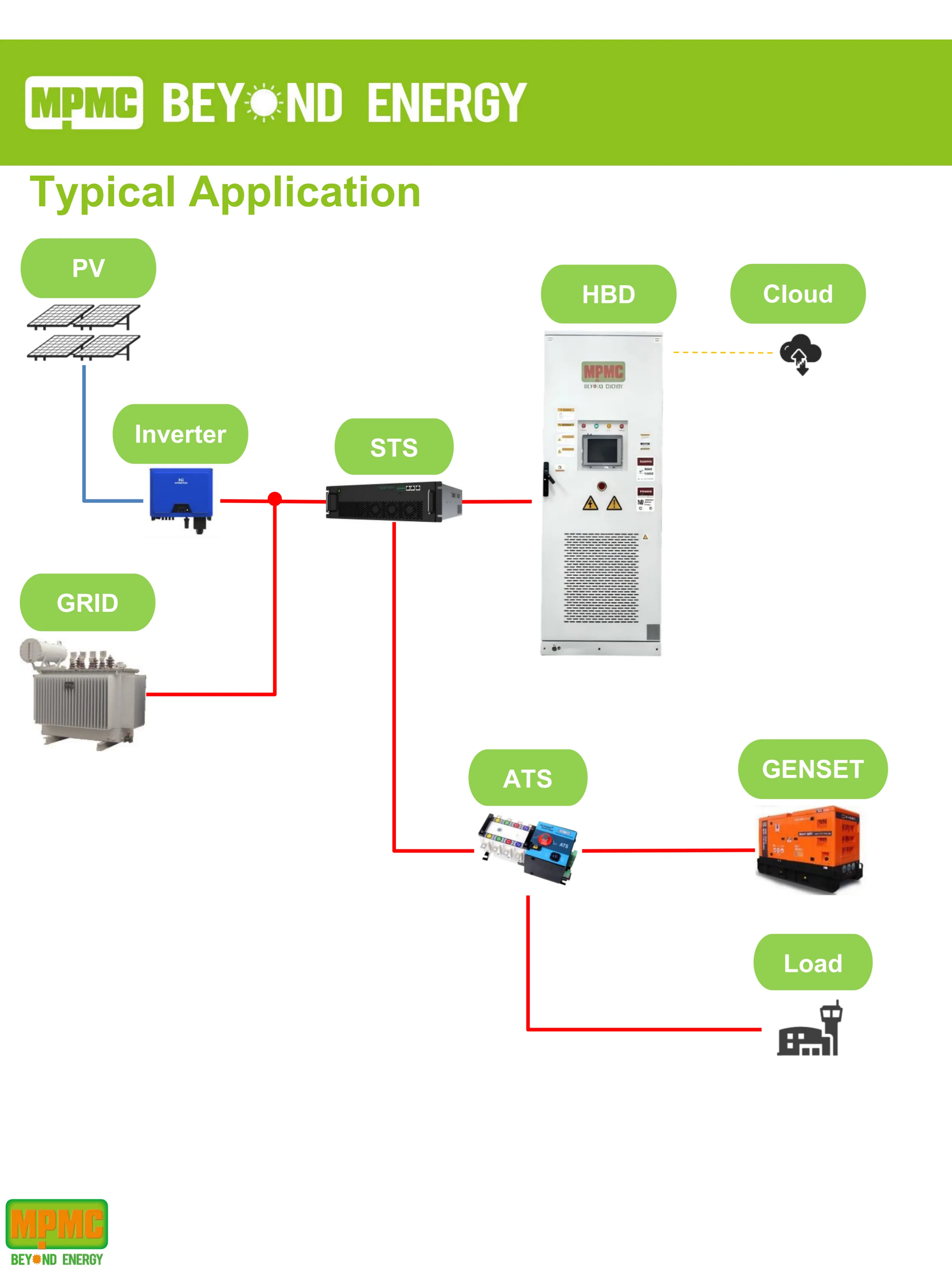

Typical Application
