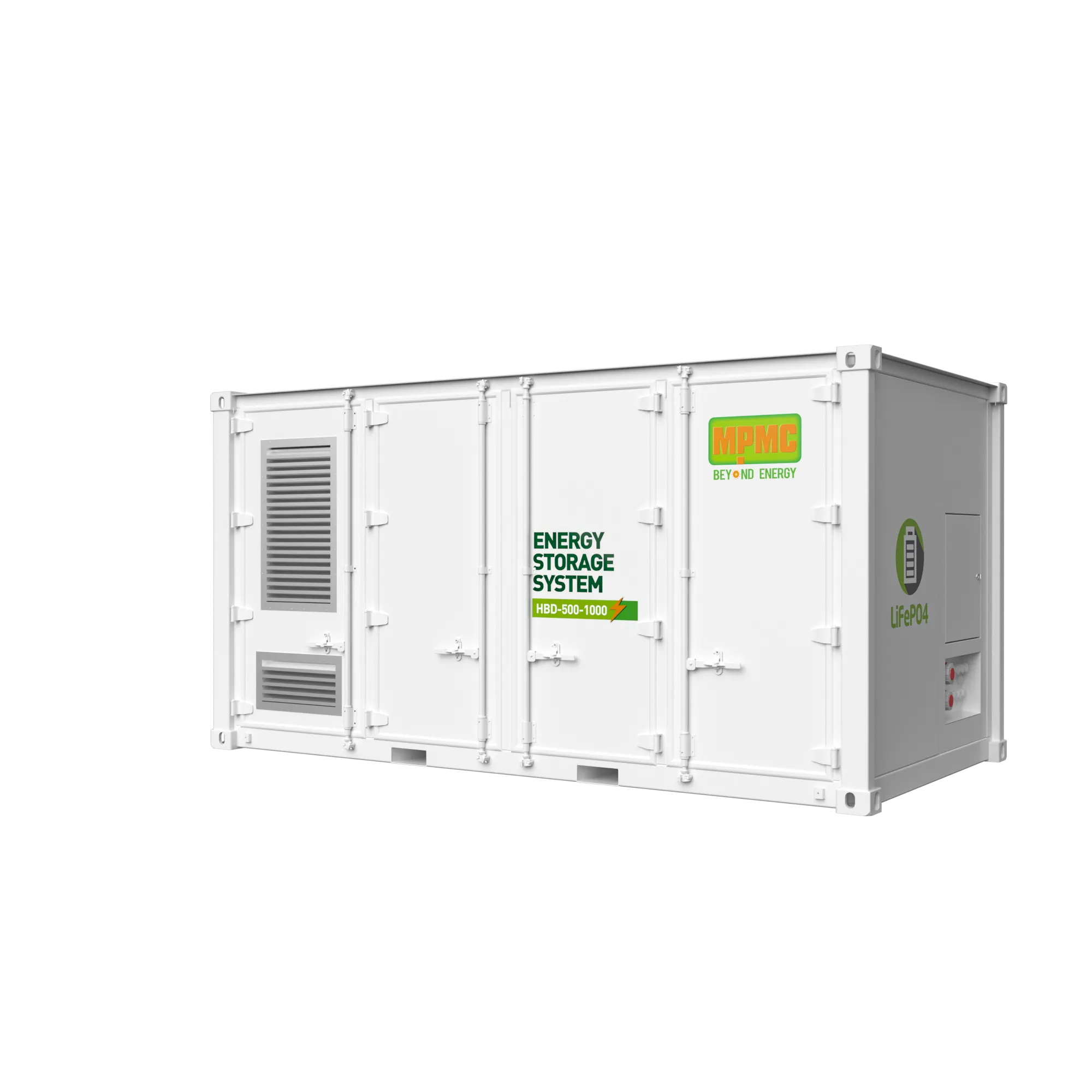

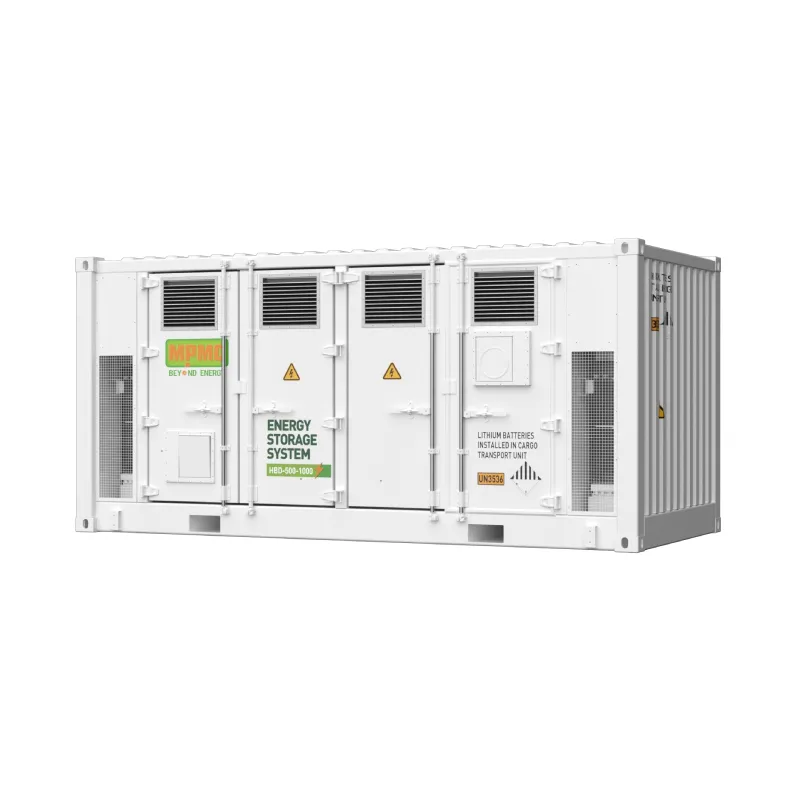

HBD-500kW-1000kWh

HBD®is a new range of secure integrated battery energy storage system. This mobile and modular solution includes batteries, PCS and control system; liquid cooling system , fire protection and auxiliary components for option. It can be connected to external PV power station, AC generator and grid power.

HBD-500kW-1000kWh

BESS HBD-500-1000.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Design Standards

HBD®is mainly developed for no emission and low noise, Reduce the dependence on grid, Improve power supply quality and Ensure the power consumption of emergency load.

Benefits

1. Weatherproof cabinet, C4 & UV resistant;

2. Modular assembly;

3. High Safety;

4. Better Efficiency;

5. Professional liquid cooling system;

6. Intelligent Operation and Maintenance.

Specification

General Information
Model	HBD-500-1000
Rated Output Power@25℃	500kW
Rated Output Voltage	400V@50Hz,3p3W.
Battery Storage Capacity	1012.8kWh
Loading Dimension(LWH)	395022502250
Weight	12.5t
Operating Temperature Range	-30~60℃(> 45℃ derating)
Max Altitude	3000m(> 2000m derating)

Battery
Cell Type	LFP(LiFePO4)
Pack Model	MF154314
Pack Capacity	48.23kWh
Pack Rated Voltage	153.6VDC
Cyclic Life	6000(0.5C@80%DOD)
Charger/Discharge Current	157A(0.5C)
Battery Voltage of Rack	1075.2VDC
Connection of Pack	3P7S
PCS
Battery Voltage Range	720~1500VDC
Max. Current (AC)	735A
Max. Output Power	528kW
Rated Output Power	500kW
Rated Voltage	400Vac
Rated Frequency Range	50/60Hz(±2.5Hz)
PF	1 lagging~1 leading
AC Connection	3W4P
Max. Efficiency	98.5%
Transformer	Optional
Communication	CAN/RS485/Ethernet/WIFI
Certificates	IEC62477 / IEC61000 / EN50549-1 / UL1741 / IEEE1547 / CSA22.2 VDE4110 / G99 / AS4777 / CEI0-16 (TBD)
Cooling System
Cooling Type	Liquid cooling + Heating film
Operation Mode	Refrigeration and heating
Fire Protection
Type	Novec™ 1230
EMS
Display and Monitor	Local screen/APP/Web
Function	Energy management and coordinated control of energy storage system

Basic Logic
