HBD-250kW-400kWh

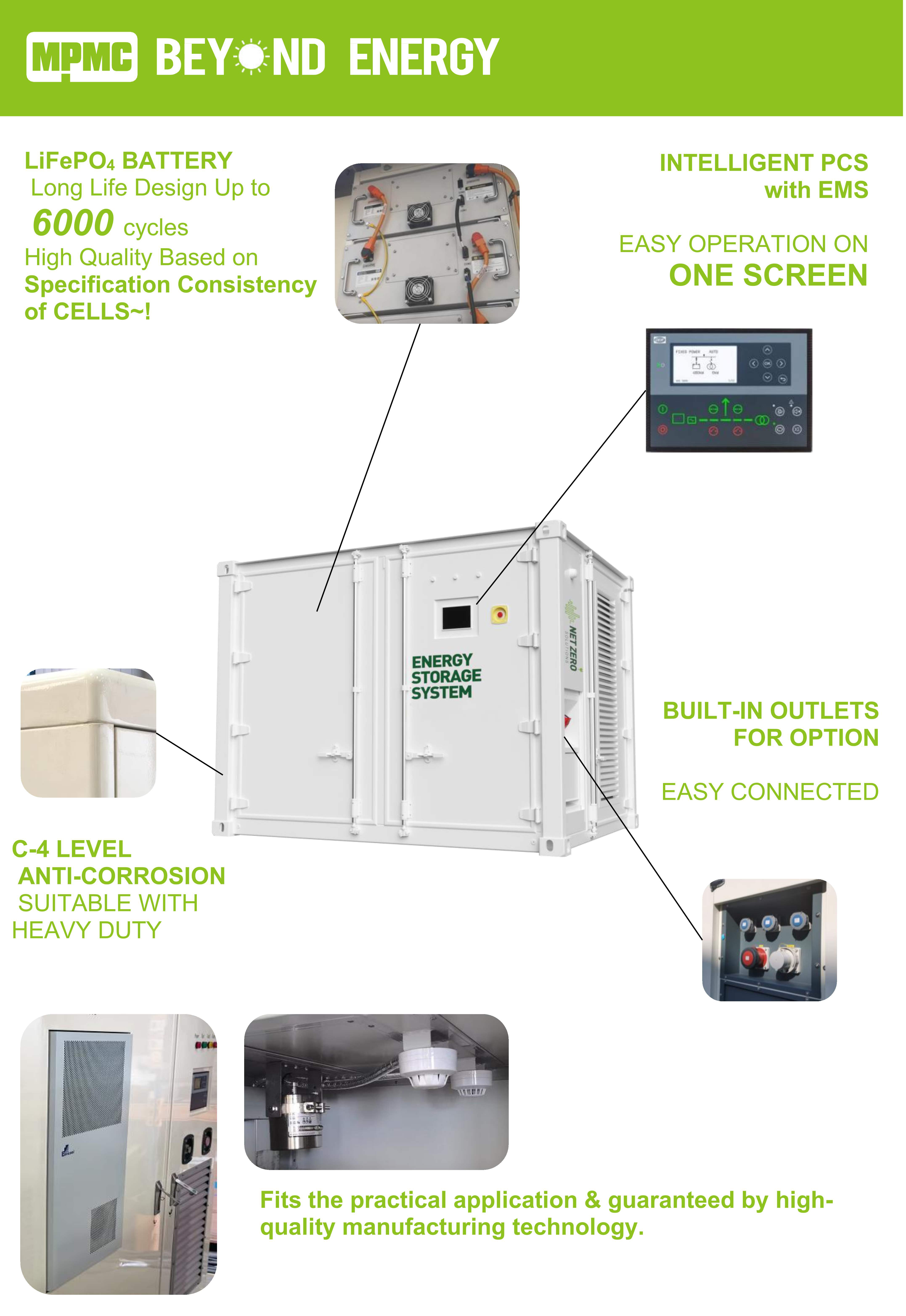

HBD® is a new range of secure integrated Battery Energy Storage System. This mobile and modular solution includes batteries, PCS, HVAC, fire protection and control system; Sockets and auxiliary components for option. The R series can be connected to external PV power station, AC generator and grid power.HBD® is mainly developed for no emission and low noise, Reduce the dependence on grid, Improve power supply quality and ensure the power consumption of emergency load.

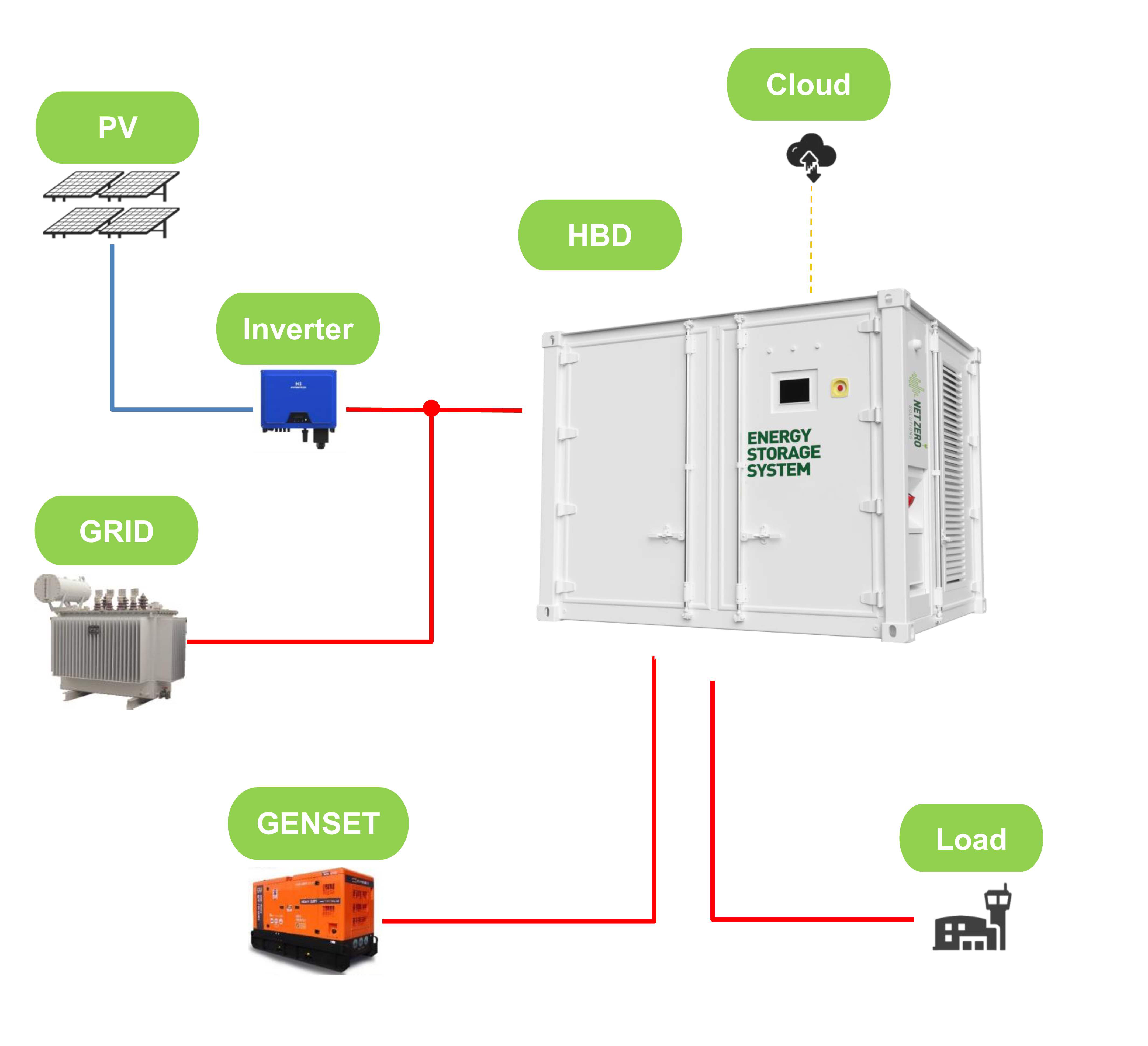

HBD® is a new range of secure integrated Battery Energy Storage System. This mobile and modular solution includes batteries, PCS and control system; HVAC, fire protection and auxiliary components for option. The R series can be connected to external PV power station, AC generator and grid power.
HBD® is mainly developed for no emission and low noise, Reduce the dependence on grid, Improve power supply quality and ensure the power consumption of emergency load.
Integrated installation, convenient storage and transportation;
High return on investment and short payback period;
Simple operation and easy maintenance;
Power and Capacity can be expanded, meet different user needs;
|
General Information |
||
|
Rated Output Power@25℃ |
250 kVA |
|
|
Rated Power Factor |
0.8 lagging |
|
|
Rated Output Voltage |
380V@50/60Hz,3ph. |
|
|
Rated Battery Storage Capacity |
401.4 kWh |
|
|
Output |
Terminals |
Copper Busbar |
|
Sockets |
MAX. 7 Sockets available |
|
|
Protection Class |
IP54 |
|
|
Loading Dimension(W*D*H) |
2950*2250*2250 mm |
|
|
Net.Weight |
7600 kg |
|
|
Loading Capacity |
20’GP |
2 units |
|
40’HC |
4 units |
|
|
Discharge Temperature Range |
-20~50°C(> 45℃ derating) |
|
|
Max Altitude |
3000m(> 2000m derating) |
|
|
Battery |
|
|
Cell Type |
LFP(LiFePO4) |
|
Pack Capacity |
14.336 kWh |
|
Pack Rated Voltage |
51.2 VDC |
|
Cyclic Life |
6000 Times(0.5C@90%DOD) |
|
Battery Voltage of Rack |
716.8 VDC |
|
Connection of Rack |
14S2P |
|
PCS |
|
|
Max. Current (AC) |
364 A |
|
Max. Output Power |
300 kW (1 minute) |
|
Rated Output Power |
250 kW |
|
AC Input Voltage Range |
340~460Vac |
|
Rated Frequency Range |
50/60Hz(±2.5Hz) |
|
PF |
1 lagging~1 leading |
|
AC Connection |
3W+N+PE |
|
Max. Efficiency |
99% |
|
Transformer |
N/A |
|
Communication |
CAN/RS485/Ethernet |
|
Grid-tied Certificates |
EN50549, VDE4105, G99 |
|
Safety & EMC Certificates |
IEC61000, IEC62477 |
|
Cooling System |
|
|
Cooling type |
HVAC for Air cooling |
|
Fire Protection |
|
|
Type |
Aerosol (CE) |
|
EMS |
|
|
Display and Monitor |
Local screen |
|
Function |
Energy management and coordinated control of energy storage system |
