ALL-IN-ONE MOBILE & FIXED BESS CHARGER

MPMC BCH Series BESS Charger

The MPMC BCH Series BESS Charger (Battery Energy Storage & EV Charger) is a next-generation, fully integrated, ultra-safe, and plug-and-play green energy replenishment system engineered for global electric heavy-duty trucks, construction machinery, commercial buses, and specialized utility vehicles.

The BCH Series deeply integrates 200 kWh to 1,000 kWh (203.5 kWh – 1,075 kWh) lithium iron phosphate (LiFePO4) energy storage systems, 150 kW to 600 kW high-power DC ultra-fast charging modules, intelligent microgrid Energy Management Systems (EMS), and industrial-grade high-reliability protective enclosures (available with mobile trailer chassis or fixed containerized formats).

Comprising two core product matrices — Mobile and Fixed/Hybrid — the BCH Series delivers key capabilities including peak shaving, high-power DC fast charging, multi-standard AC emergency power supply, and multi-energy hybridization (Grid / Diesel Genset / Solar PV). Featuring a truly plug-and-play design with zero complex civil construction and no lengthy grid capacity expansion approvals required, it thoroughly resolves the critical pain points of "difficult charging, slow replenishment, and prohibitive costs" across off-grid, weak-grid, remote job sites, and temporary operating conditions.

BCH Series Product Matrix

Complete lineup of mobile and fixed BESS chargers engineered with 6,000+ cycle LFP battery storage, dual CCS2 guns, and flexible AC/DC grid integration.

Fixed Model

BCH-240-200 Fixed BESS & EV Charger (W/O AC Output)

Battery Capacity203.5 kWh (LFP)
DC Charging Power240 kW (2 × CCS2 350A)
Output VoltageDC 50 ~ 1000 V
AC Grid Input60 kW (Busbar)
Cooling / SafetyLCAC / Aerosol Fire Ext.
Dimensions / Weight1.6×1.3×2.45m / ~2,600 kg
VIEW SPECIFICATION
Mobile Model

BCH-275-200 Mobile BESS & EV Charger (with AC Output)

Battery Capacity203.5 kWh (LFP)
DC Charging Power150 kW (2 × CCS2 250A)
AC Output (Site Power)125 kW (137.5 kW Peak)
Multi-Source InputGrid (80kW) / Solar (63A) / DC In
Mobility SetupTrailer / Rapid Relocation
Dimensions / Weight2.25×1.45×1.8m / 2,750 kg
VIEW SPECIFICATION
Mobile Model

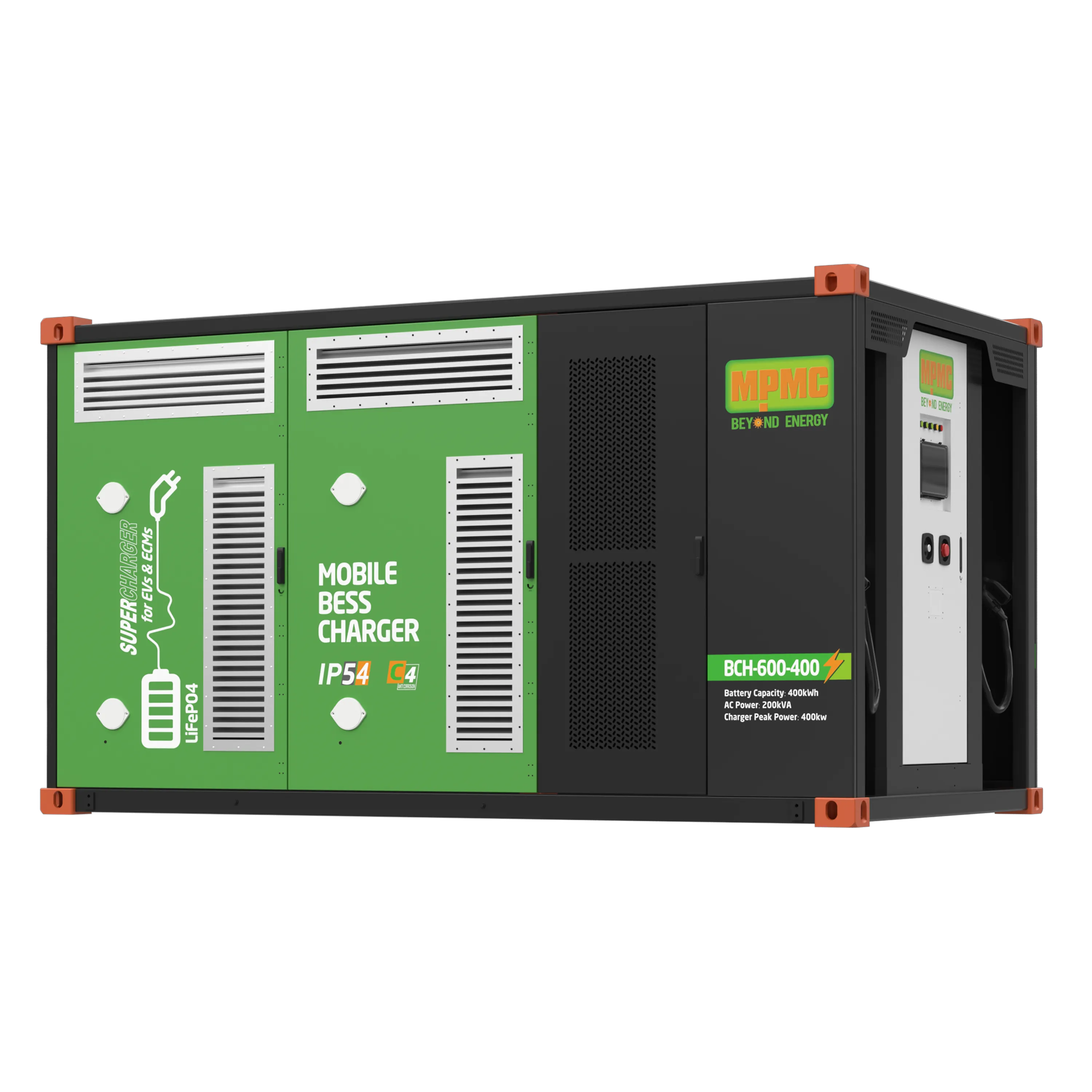

BCH-600-400 Mobile BESS & Charger (High-Power Dual Gun)

Battery Capacity407.0 kWh (LFP)
DC Charging Power400 kW (2 × CCS2 350A)
AC Output (Site Power)200 kW (270 kW Peak)
AC Input / Interface160 kW / PowerLock 250A
Control SystemEMS with 4G & OCPP 1.6
Dimensions / Weight3.95×2.25×2.25m / 8,300 kg
VIEW SPECIFICATION
Mobile Model

BCH-600-600 Mobile BESS & Charger

Battery Capacity610.6 kWh (LFP)
DC Charging Power600 kW (2 × CCS2 600A)
Gun Cooling SystemActive Liquid Cooling
DC Fast Input Recharge350A (DC 672~864V)
ArchitecturePure Off-Grid DC Supercharger
Dimensions / Weight~4.8×2.25×2.25m / ~11,200 kg
VIEW SPECIFICATION
Fixed Hybrid

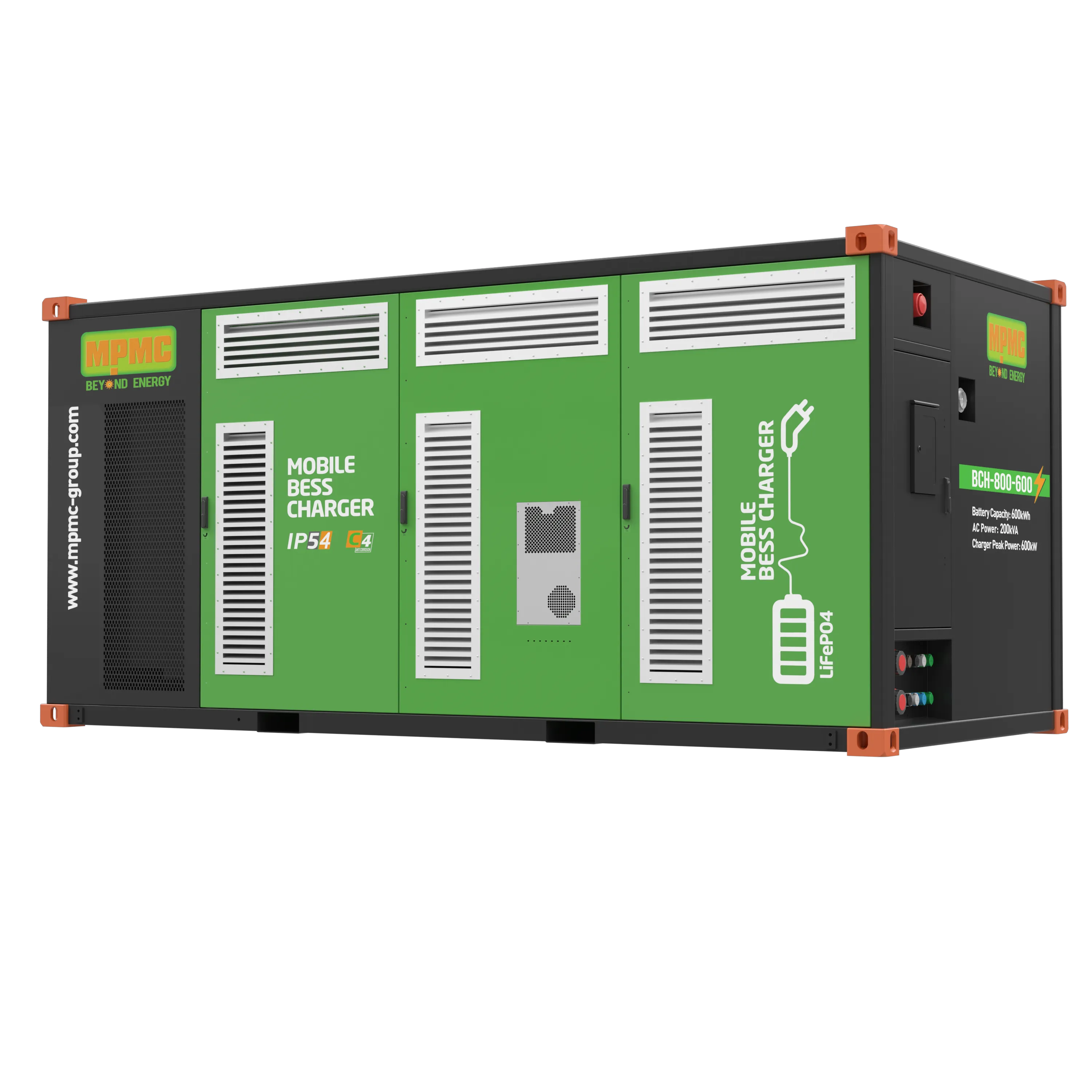

BCH-800-600 Fixed Hybrid & EV Charger

Battery Capacity610.6 kWh (LFP)
DC Charging Power600 kW (2 × CCS2 350A)
AC Input Capacity280 kW (PowerLock 400A)
AC Sockets Output200kW + 5× Multi-Spec CEE Sockets
Hybrid IntegrationGrid + Solar PV + Genset Sync
Dimensions / Weight4.8×2.25×2.25m / 13,200 kg
VIEW SPECIFICATION
Fixed 20'GP

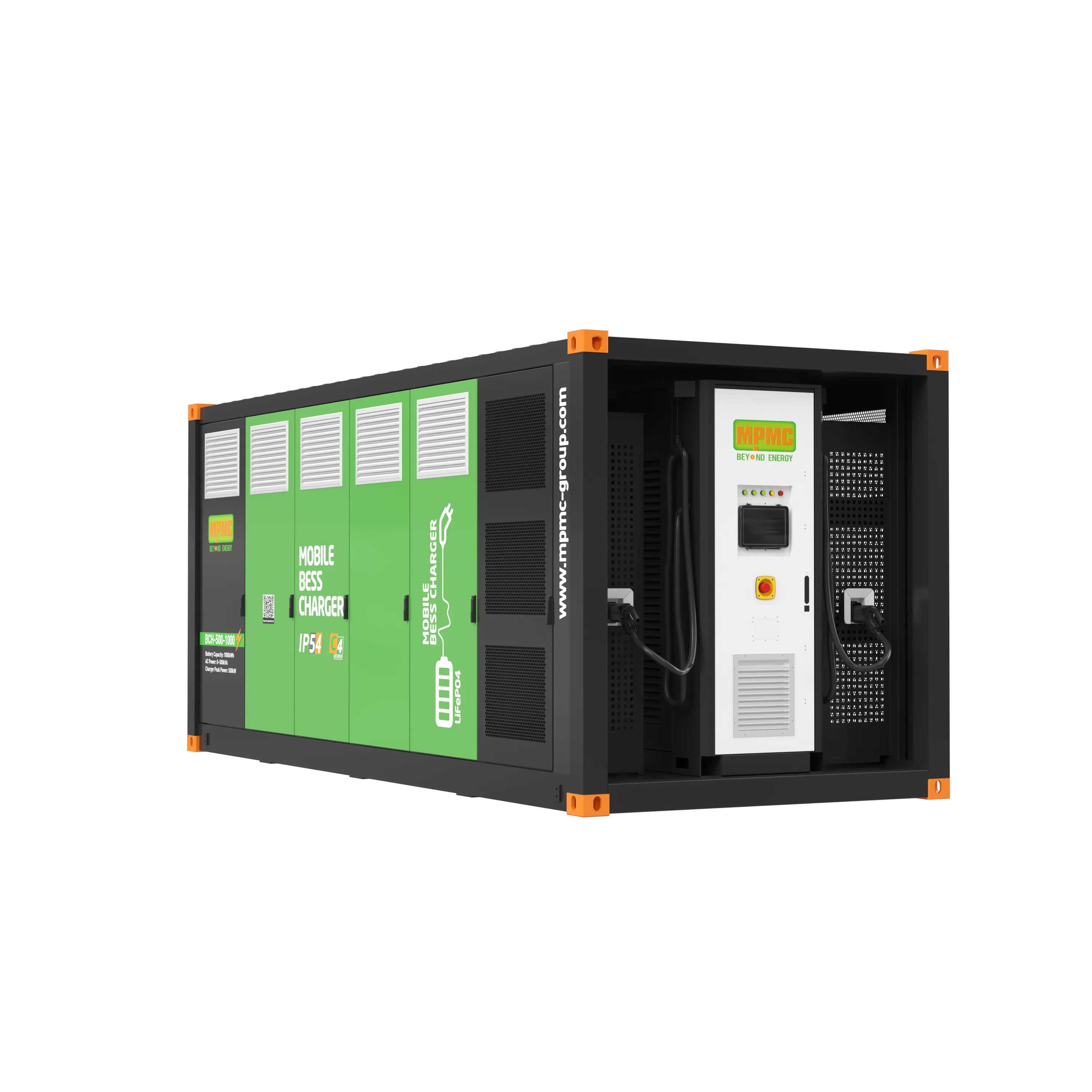

BCH-500-1000 Fixed Megawatt BESS & EV Charger Station

Battery Capacity1075.0 kWh (1.075 MWh)
DC Charging Power500 kW (2 × CCS2 350A)
AC Output Power200 kW (270 kW Peak)
AC Input / Interface200 kW / PowerLock 400A
Container FormatStandard 20' GP Container
Weight / Rating19,800 kg / Heavy Industrial
VIEW SPECIFICATION

BCH Core Technical Highlights

01
DC 50~1000V Ultra-Wide Fast Charge

High-voltage platform natively compatible with 400V, 800V, and 1000V commercial vehicles, electric mining trucks, and port machinery. Dual CCS2 guns support dynamic load balancing and liquid-cooled ultra-fast charging up to 600A.

02
Solar-Diesel-Storage Multi-Energy Hub

Advanced hybrid microgrid synergy seamlessly integrating solar PV, backup diesel generators, and off-peak grid power. Intelligent power routing minimizes fuel consumption and maximizes clean solar energy capture.

03
Smart EMS & OCPP 1.6 Protocol

Proprietary microgrid EMS with millisecond-level dynamic power dispatching. Equipped with 4G/IoT connectivity, remote OTA diagnostics, and standard OCPP 1.6 for seamless integration into third-party charging platforms.

04
Industrial Safety & Fire Protection

Automotive-grade LiFePO4 cells delivering 6,000+ cycles (@90% DOD). Integrated with industrial LCAC precision thermal management, IP54 weatherproof enclosure, and CE-certified aerosol automatic fire suppression.

05
Turnkey Plug & Play Deployment

Skid-mounted or standard ISO container design with dedicated lifting points and optional mobile trailer. Deployable and ready to charge in under 60 minutes without foundation casting or transformer overhaul.

Comprehensive Application Scenarios

Empowering commercial fleet electrification with advanced Solar-Diesel-Storage-Grid hybrid microgrids across mobile job sites and permanent commercial hubs.

Mobile Fleets & Off-Grid Field Works Mobile Series

⚡ Solar-Diesel-BESS Synergy: Up to 60% fuel reduction vs. continuous generator operation.

Engineered for high mobility, remote construction, temporary operations, and areas with zero grid infrastructure (BCH-275-200, BCH-600-400, BCH-600-600).

  • ✓
    Off-Grid Construction & Earthmoving Sites

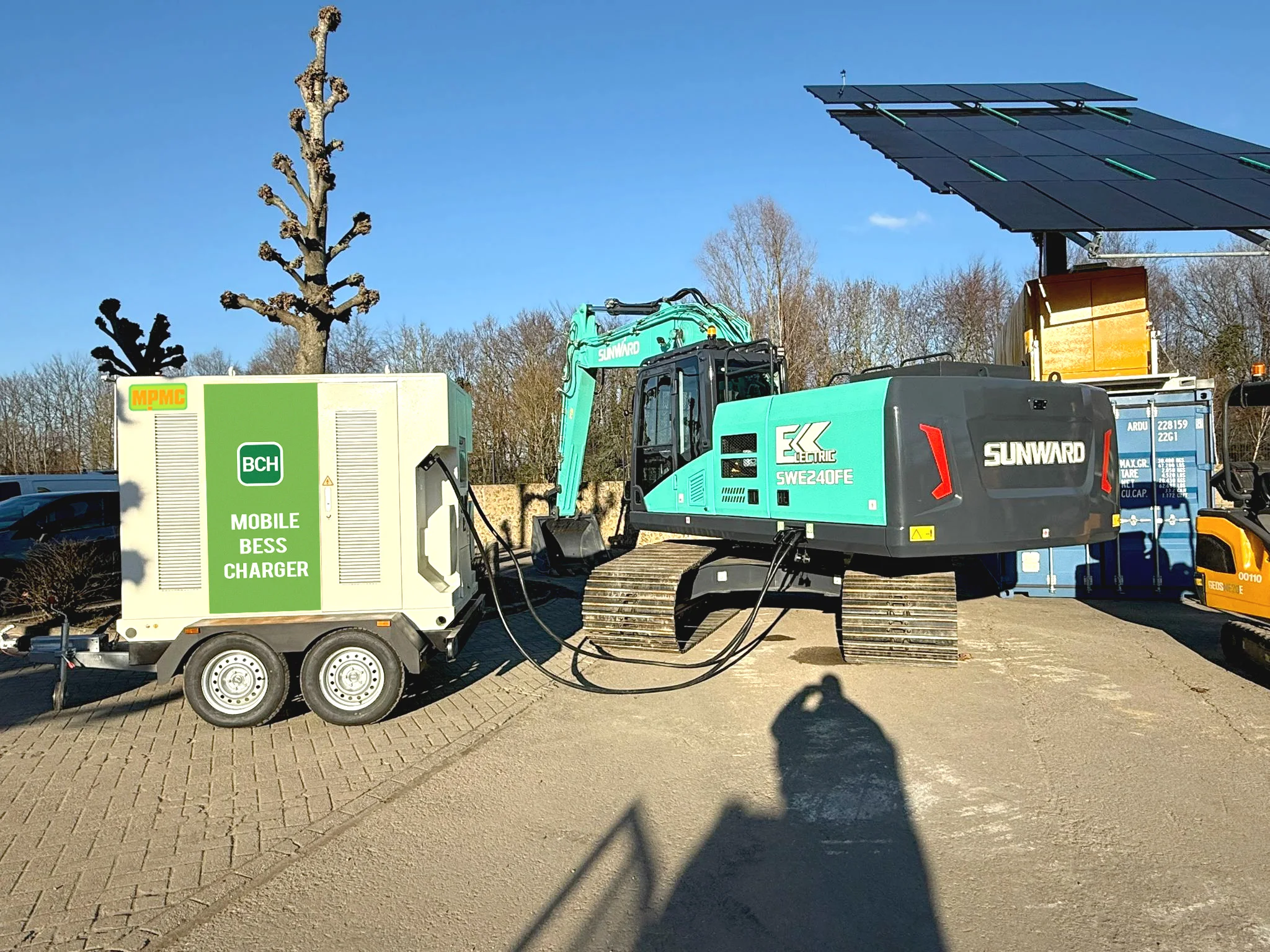

    Combines on-site solar PV arrays and intermittent diesel generator runs to charge the battery buffer. Delivers instantaneous 400kW DC fast charging for electric excavators and heavy dump trucks while providing 200kW AC power for night site lighting and power tools.

  • ✓
    Mining Pits & Zero-Emission Tunnel Excavation

    Moves flexibly alongside advancing mining faces. Eliminates harmful diesel exhaust emissions in enclosed underground tunnels by providing clean, high-voltage fast charging for electric haulers and underground utility trucks.

  • ✓
    Emergency Roadside EV Rescue & Rapid Fleet Recovery

    Trailer-mounted mobile emergency charging unit capable of rapid dispatch to recover depleted electric buses, intercity coaches, and heavy freight haulers stranded on highways or urban rings.

  • ✓
    Temporary Events, Remote Camps & Disaster Relief

    Delivers continuous, whisper-quiet microgrid power by orchestrating clean solar storage with emergency backup diesel synchronization, ensuring zero-interruption power for medical stations, mobile command centers, and event fleets.

Fixed Hubs & Multi-Energy Microgrids Fixed Series

⚡ Multi-Source Integration: Rooftop Solar PV + Grid Peak-Shaving + Multi-Socket AC Output.

Designed for permanent depots facing grid transformer bottlenecks, high peak electricity tariffs, or demanding rapid station rollout (BCH-240-200, BCH-800-600, BCH-500-1000).

  • ✓
    Grid-Constrained Logistics & Freight Depots

    Enables ultra-fast charging without waiting 12+ months for costly grid transformer upgrades. Uses rooftop solar during the day and low-cost off-peak grid power at night to replenish battery storage, discharging at full power during peak vehicle turnarounds.

  • ✓
    Ports, Container Terminals & Heavy Shunting Yards

    Ensures 24/7 continuous operation for electric terminal tractors (AGVs) and reach stackers with dual-gun 600kW fast charging and heavy-duty PowerLock power interfaces.

  • ✓
    Multi-Energy Hybrid Industrial Microgrids (BCH-800-600)

    Acts as an industrial microgrid brain: seamlessly synchronizes local solar PV, existing grid lines, and auxiliary diesel gensets, distributing up to 200kW AC power through 5 standard industrial CEE socket outlets (16A/32A/63A/125A) and PowerLock 400A.

  • ✓
    Megawatt Highway Service Stations (BCH-500-1000)

    Standard 20'GP container housing 1.075 MWh mega-storage. Delivers sustained 500kW ultra-fast charging for heavy intercity freight trucks along highway corridors with zero transformer overload.

Market Pain Points & MPMC BCH Breakthrough Value

How MPMC BCH eliminates the primary infrastructure, cost, and mobility bottlenecks in commercial vehicle electrification.

01
✕ Grid Upgrade: Long Approval & Heavy CAPEX

Applying for high-voltage grid transformer upgrades often takes 6 to 18 months with exorbitant civil and connection fees, severely delaying electric fleet deployment.

✓ Zero Expansion: Buffer Storage & Rapid Commissioning

BCH acts as a power buffer reservoir: Draws low-power steady feed (60kW~200kW) from weak grids to deliver instantaneous 150kW~600kW ultra-fast charging. Deploys in days, not years.

02
✕ Diesel Generators: Skyrocketing Fuel Cost & Emissions

Off-grid charging relying on diesel gensets incurs heavy fuel expenses, high maintenance frequency, and heavy carbon/noise emissions that breach environmental regulations.

✓ Solar-Diesel-Storage Synergy: 50%+ Fuel & LCOE Reduction

Hybrid Microgrid Optimization: Maximizes clean solar intake and runs backup diesel generators only at their optimal efficiency curve to recharge the battery buffer, slashing total energy costs by over 50%.

03
✕ High-Power Fleet Charging: Severe Grid Impact

Simultaneous high-power charging (300kW–600kW) of heavy trucks causes severe grid voltage drops, peak load penalties, and risk of transformer tripping.

✓ Grid-Friendly Peak Shaving: Buffer & Demand Optimization

BCH decouples fast charging from grid capacity: The battery pack absorbs peak charge bursts while maintaining smooth, gentle grid power intake, protecting upstream electrical assets.

04
✕ Fixed Civil Infrastructure: Stranded Asset Risk

Traditional concrete charging stations cannot be relocated when a construction project, mining phase, or temporary lease concludes, resulting in stranded capital.

✓ Modular & Mobile: 100% Asset Reusability

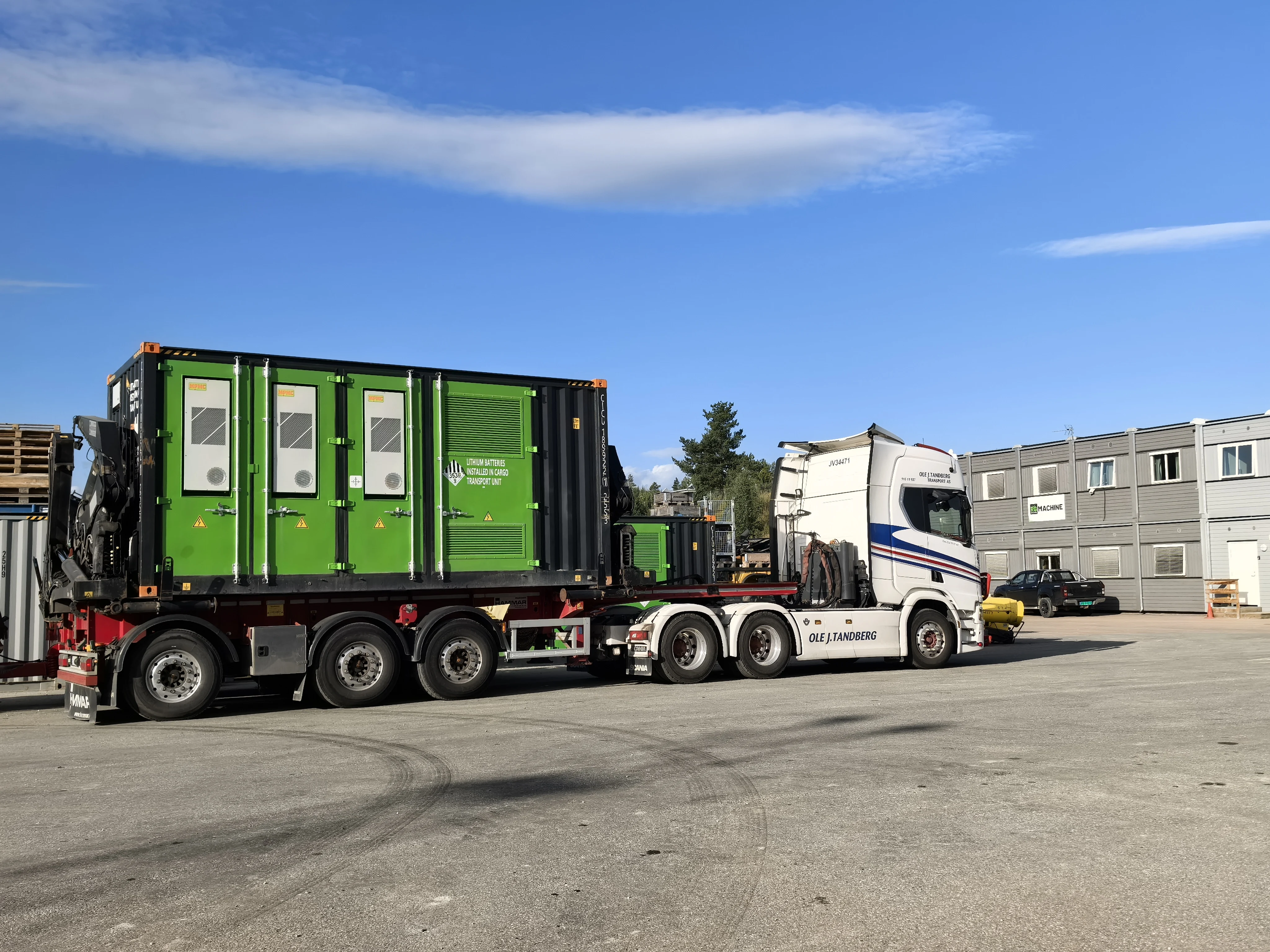

Turnkey skid/trailer design: Zero civil works required. Relocates seamlessly via trailer or crane truck to follow fleet operations, preserving high residual asset value across decades.

05
✕ Fragmented Site Power: Multiple Generator Sets

Remote job sites require separate equipment for EV charging, 3-phase machinery, tools, and office lighting, creating complex cabling and maintenance headaches.

✓ All-in-One Energy Hub: DC Fast Charge + Multi-Spec AC Power

Integrated DC & AC dispatch: Dual-gun DC charging (50~1000V) paired with up to 200kW AC 3-phase power output and multiple CEE industrial sockets (16A/32A/63A/125A/PowerLock).

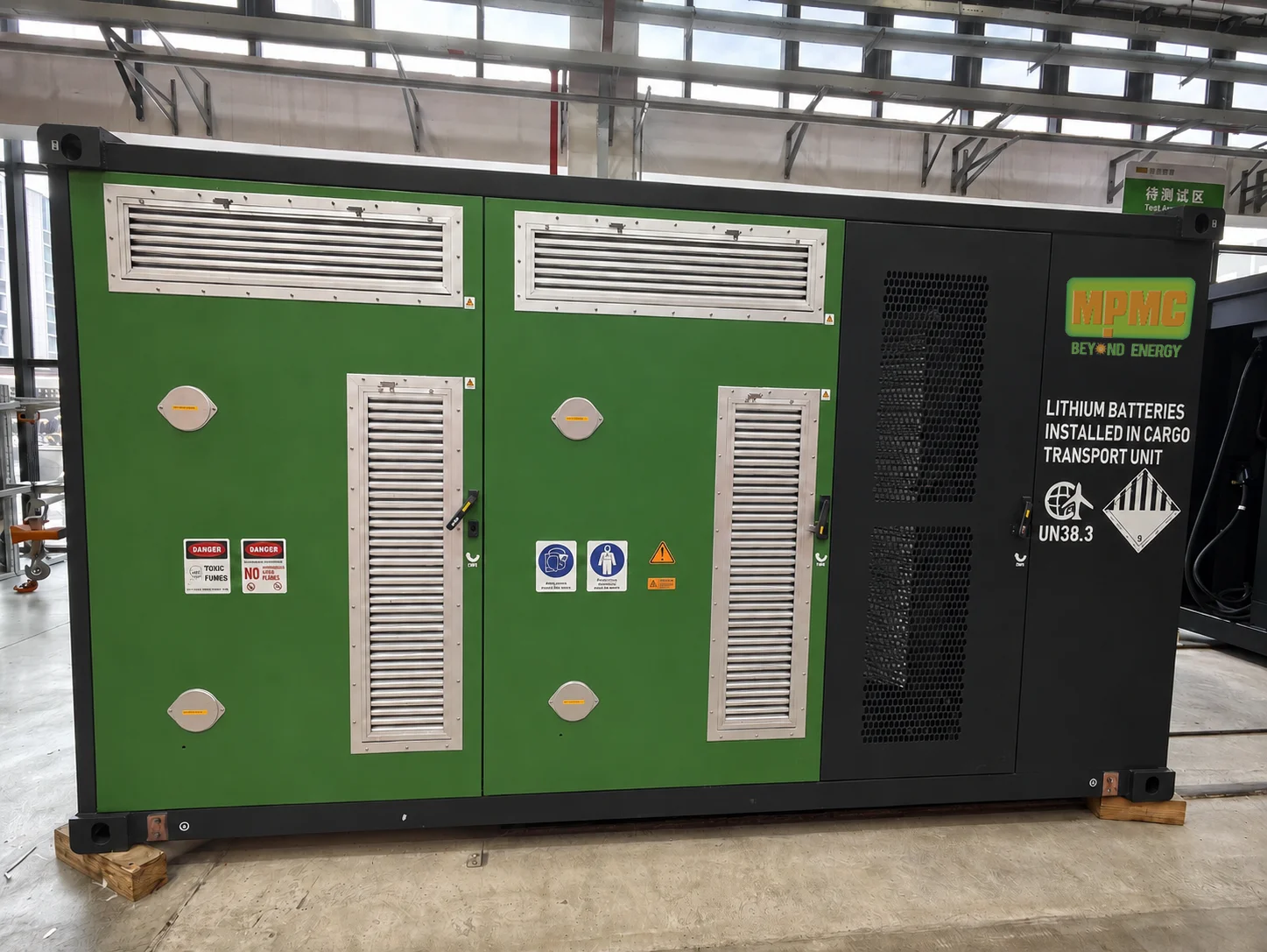

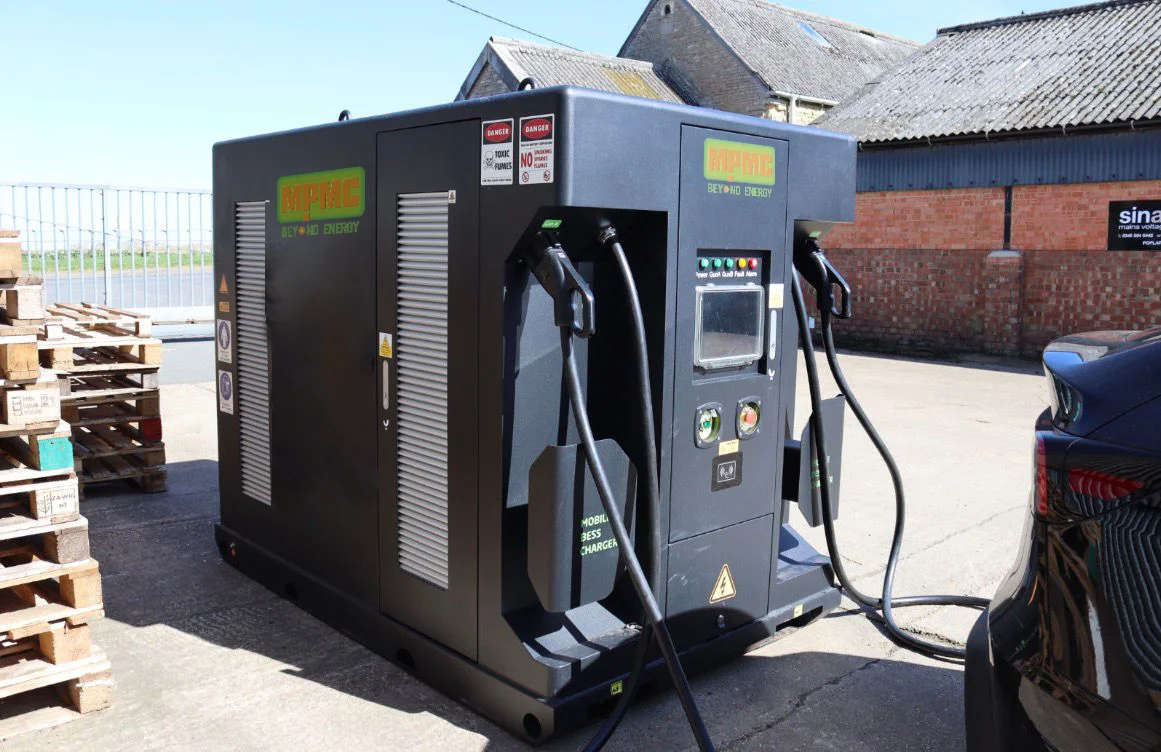

BCH Series Showcase

High-power mobile charging in action. Watch how MPMC BCH redefines off-grid fleet management in demanding environments.

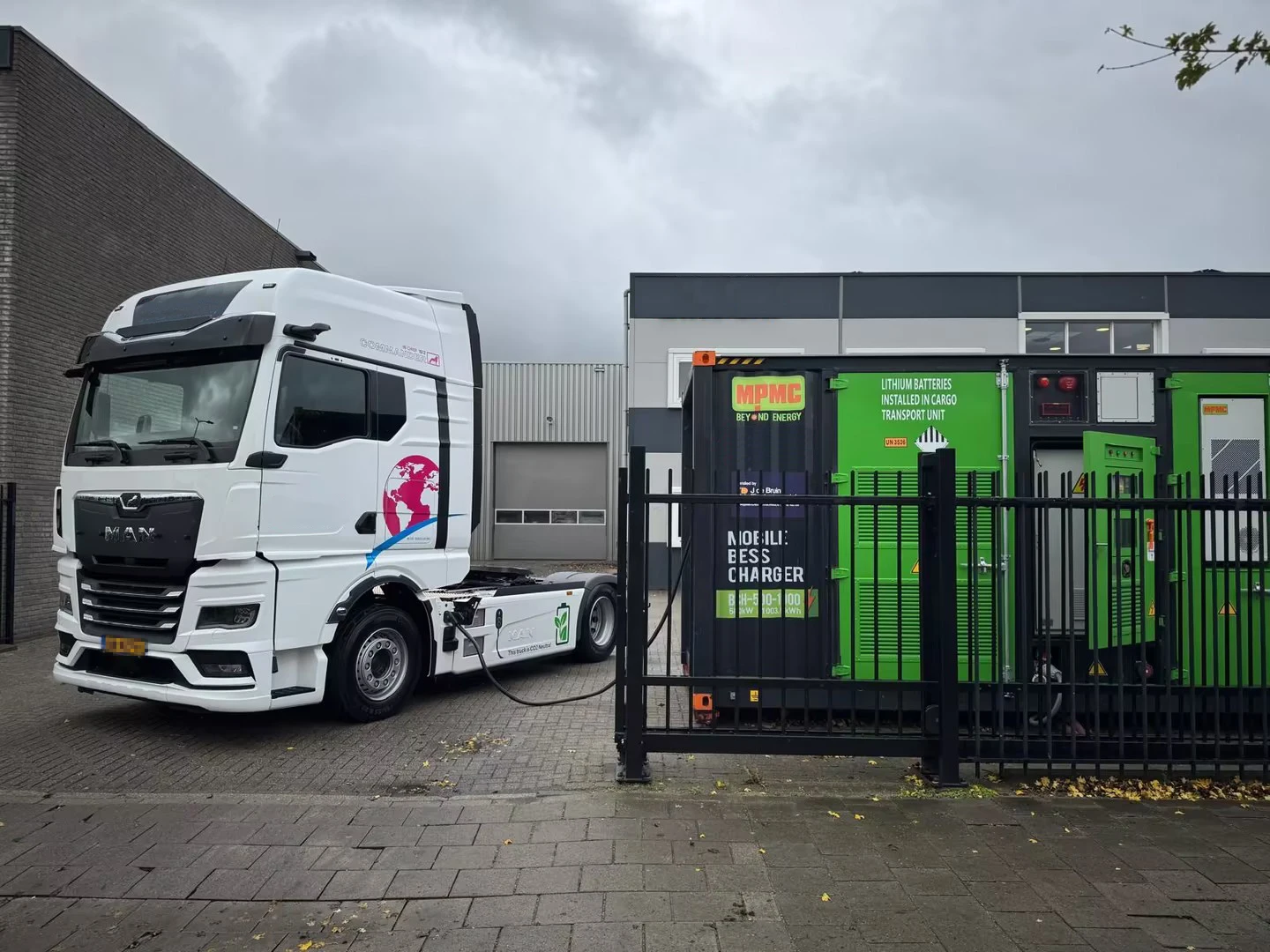

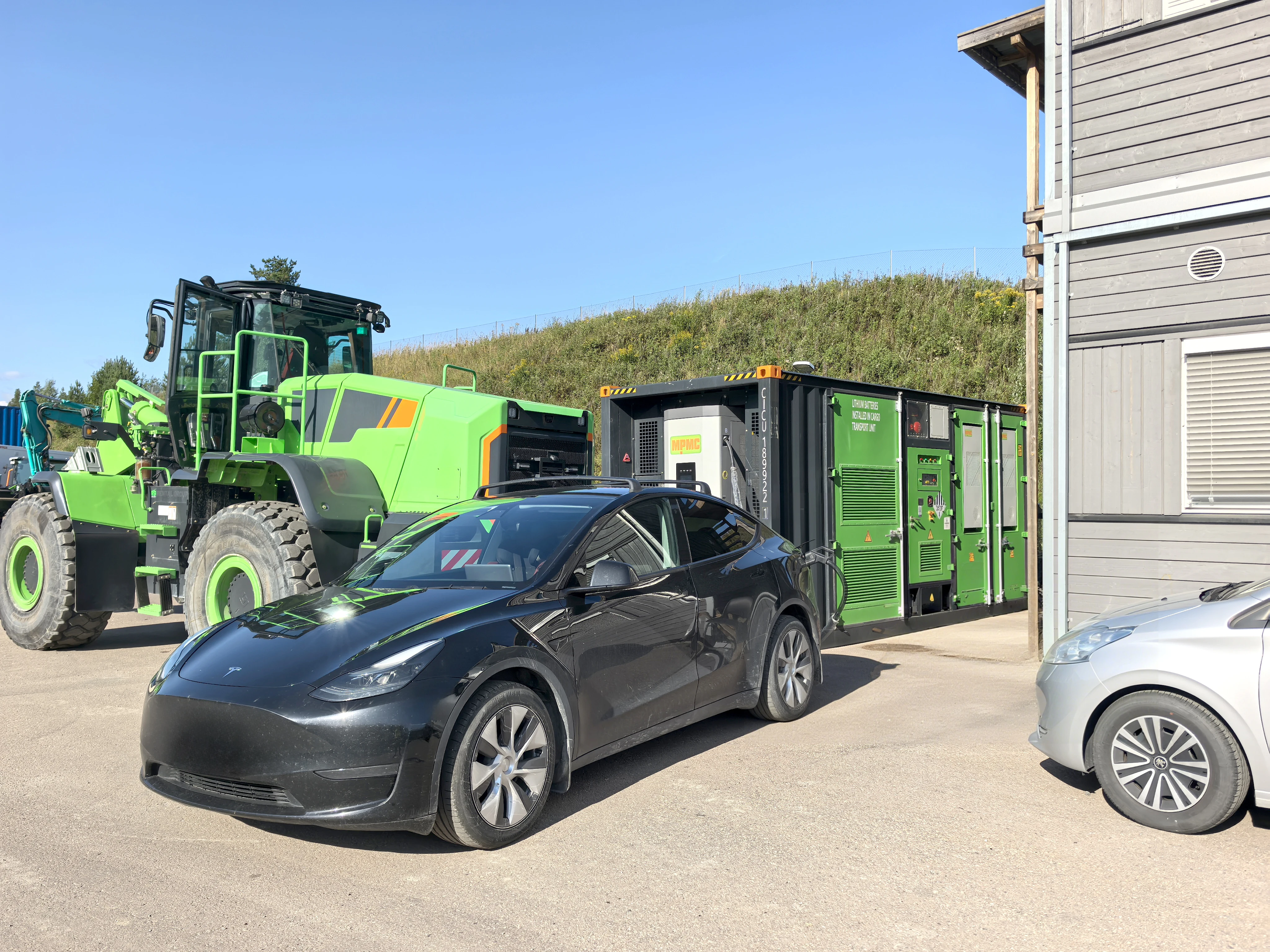

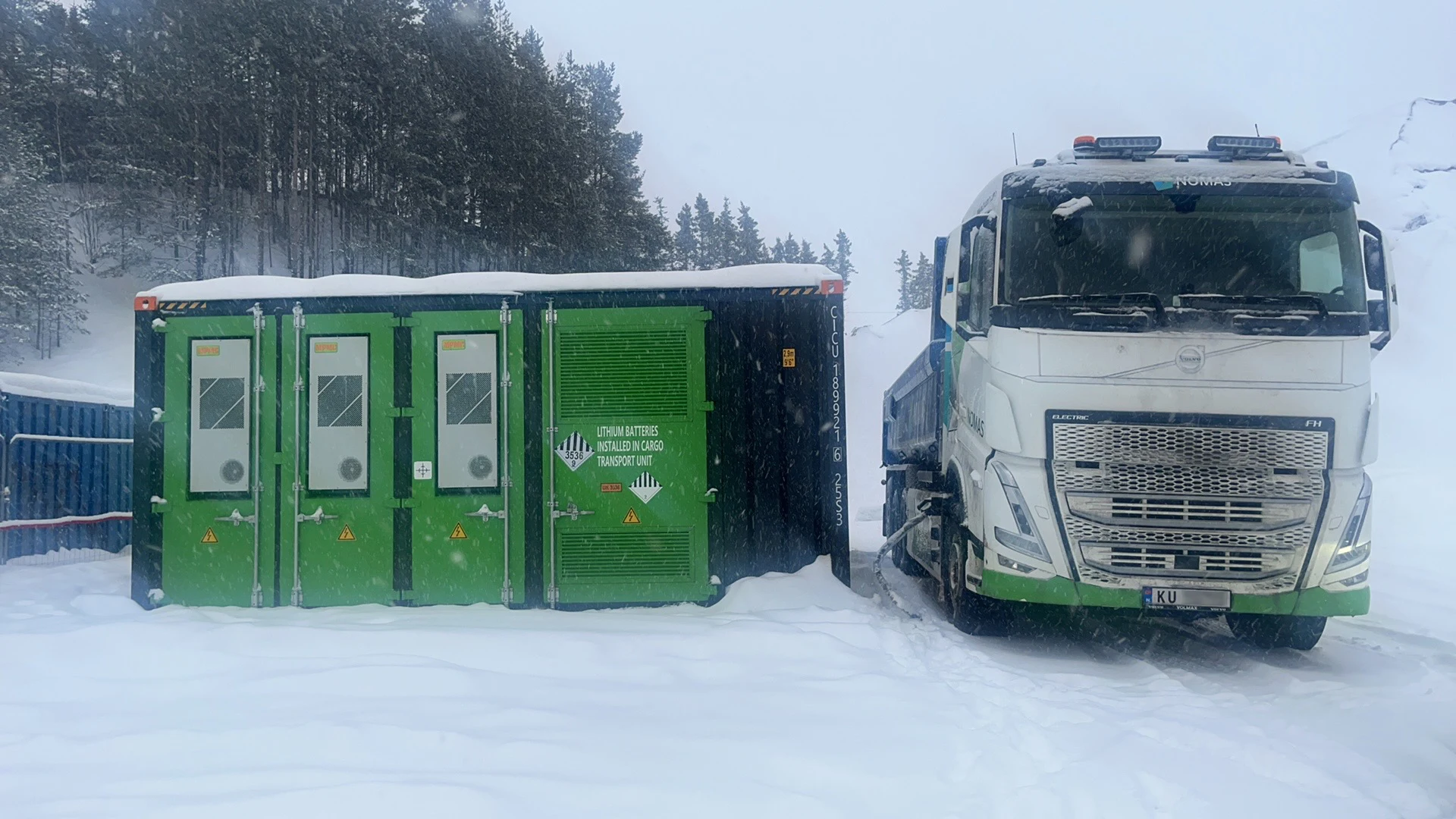

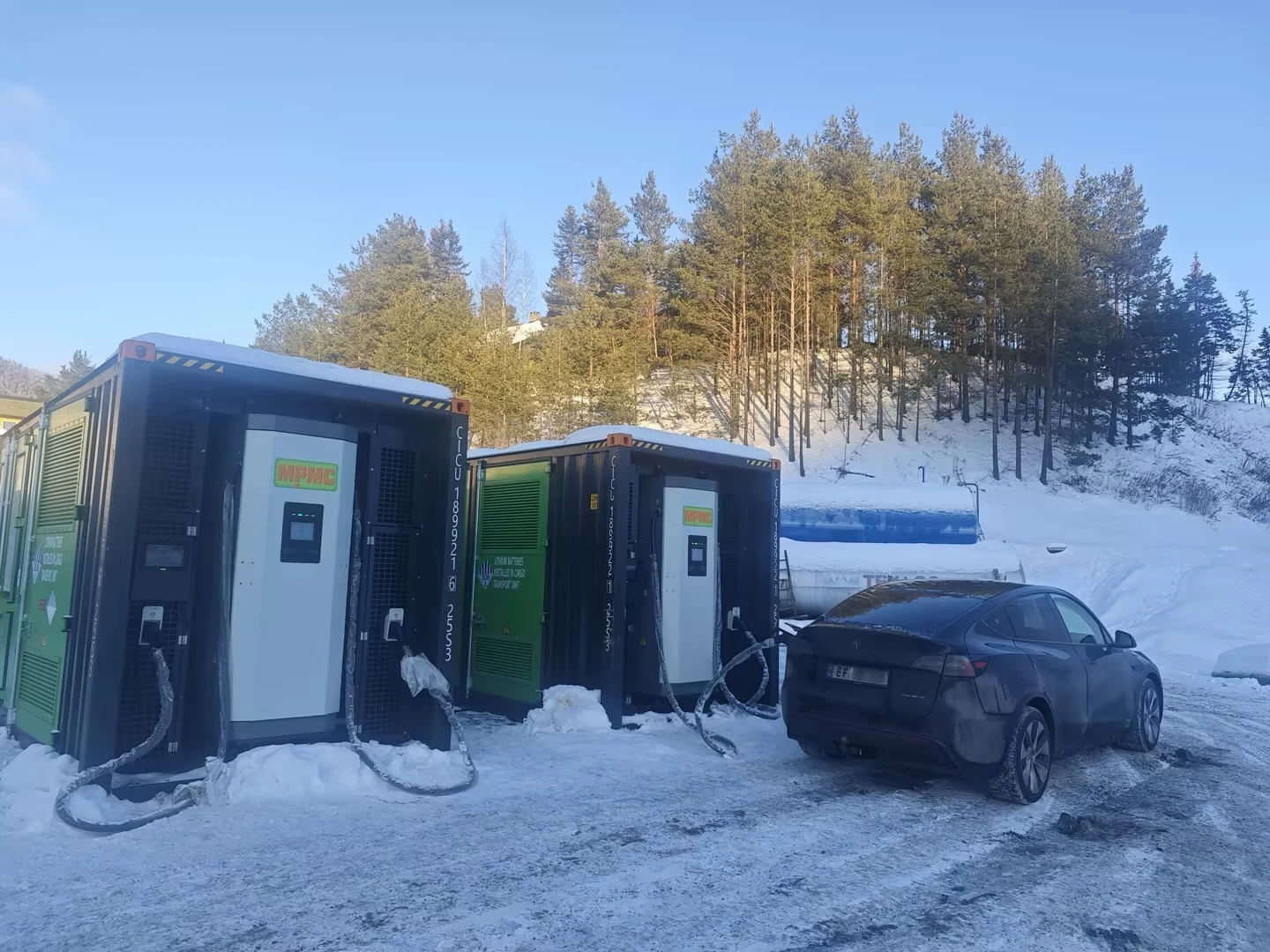

Global Success Scenarios

Global Compliance & Certification

CE Certified UN3536 IEC 61000 IEC 62477 IEC 62933-5-2 MSDS UN38.3 UL1741
```
