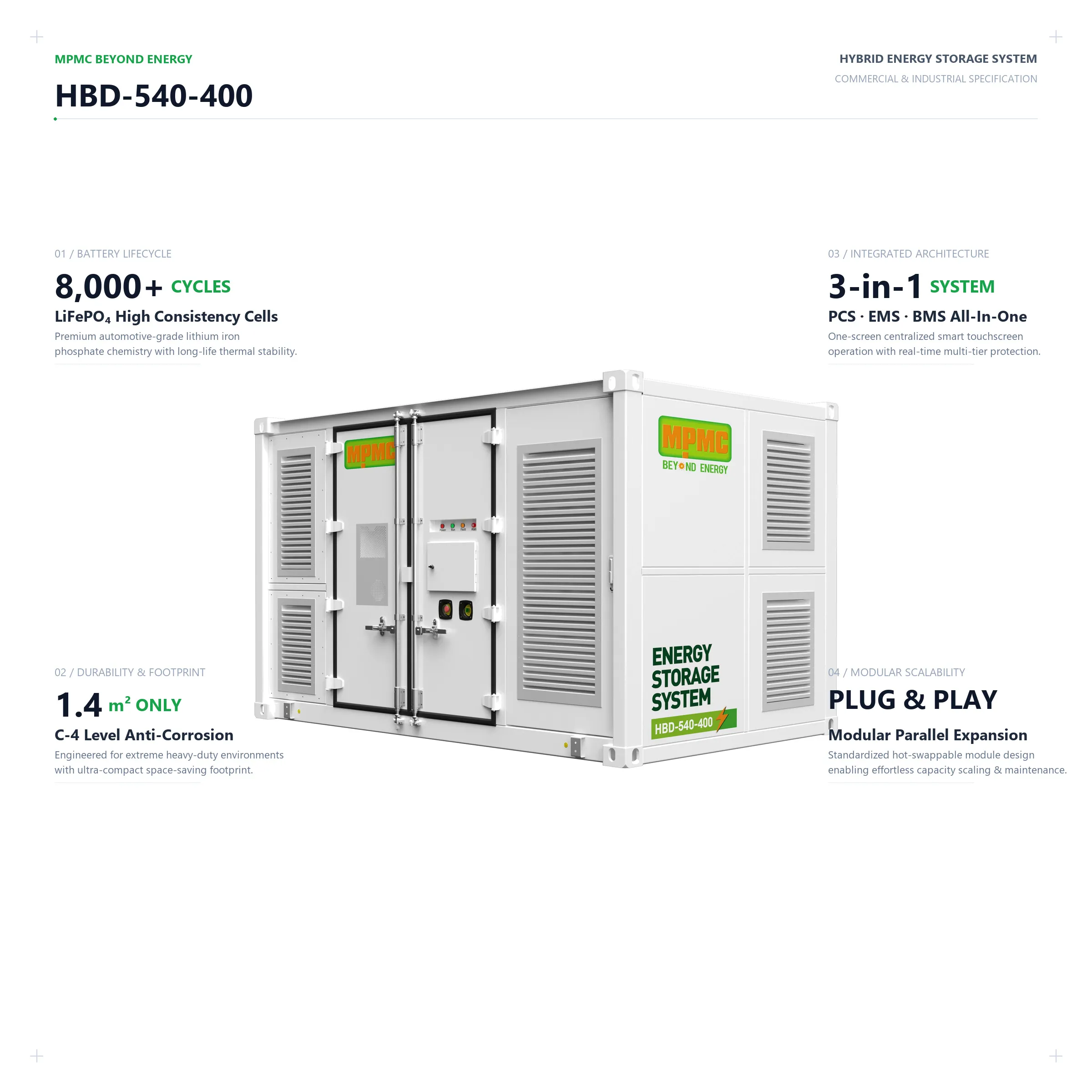

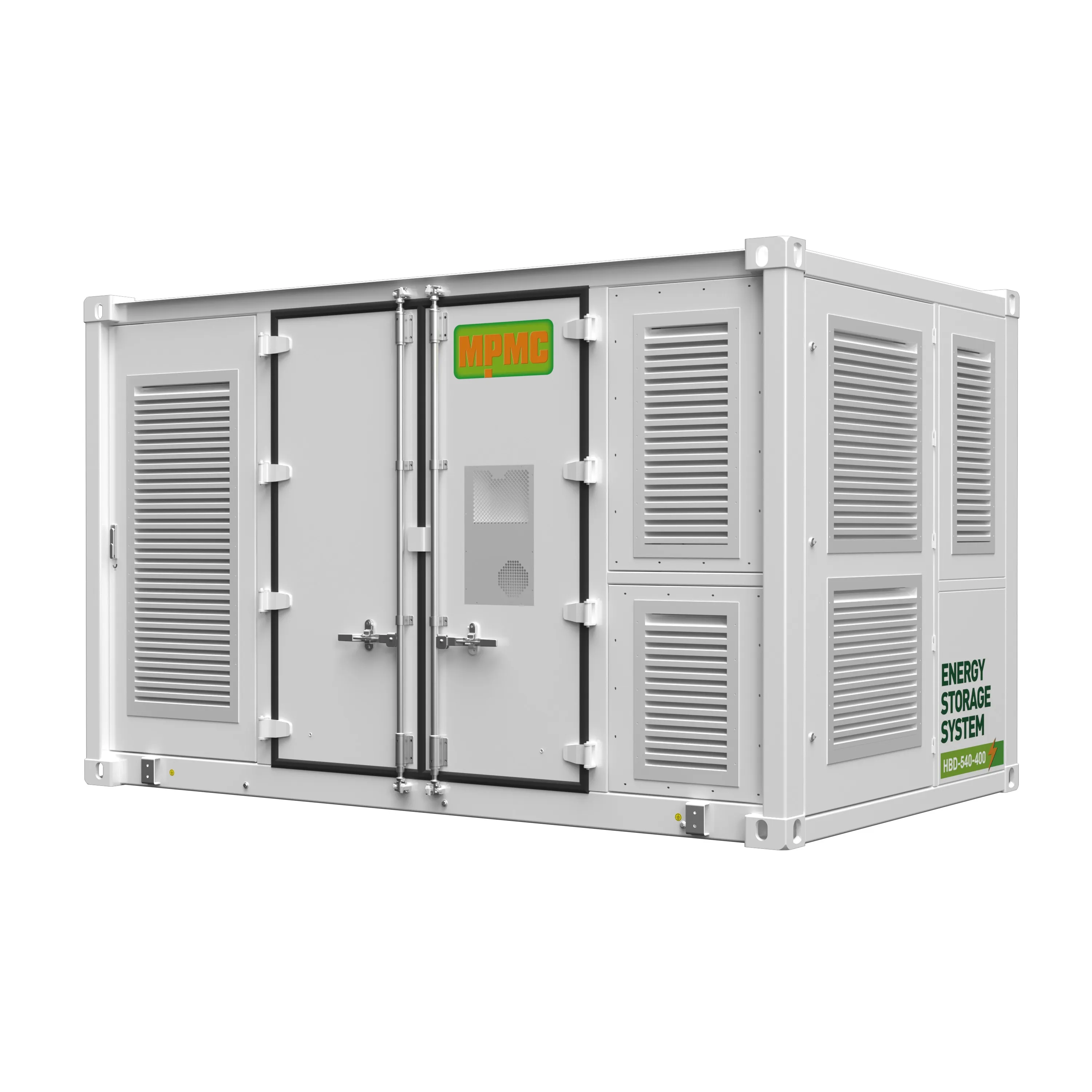

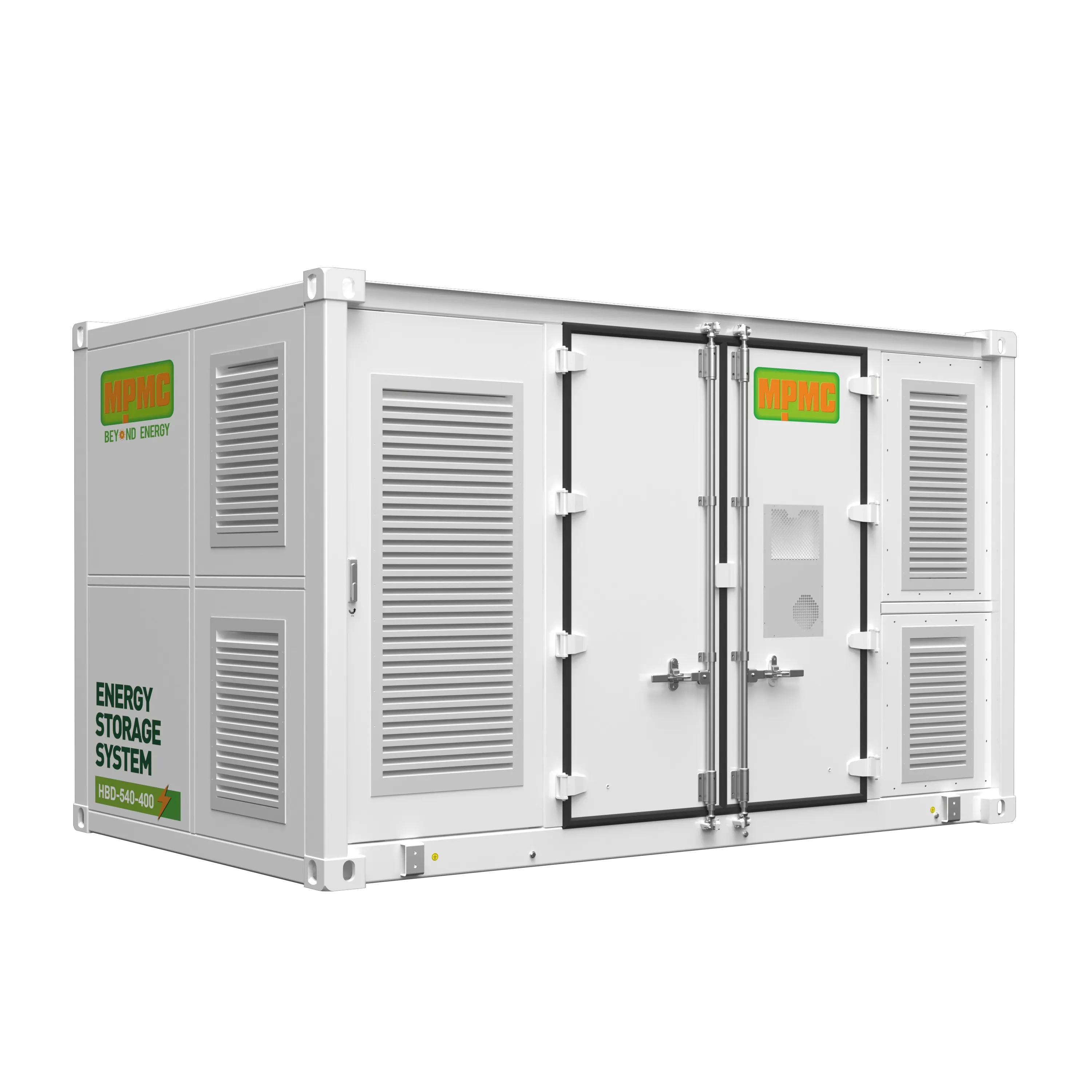

HBD-540kW-400kWh
MPMC HBD-540-400 Fixed Hybrid BESS (HBD A Series) is our heavy-duty stationary energy storage system delivering 540 kW AC power output and 407 kWh battery capacity. Engineered with IP65 ingress protection, C-4 anti-corrosion coating, and liquid cooling, it operates reliably in harsh environments from -20°C to 55°C.

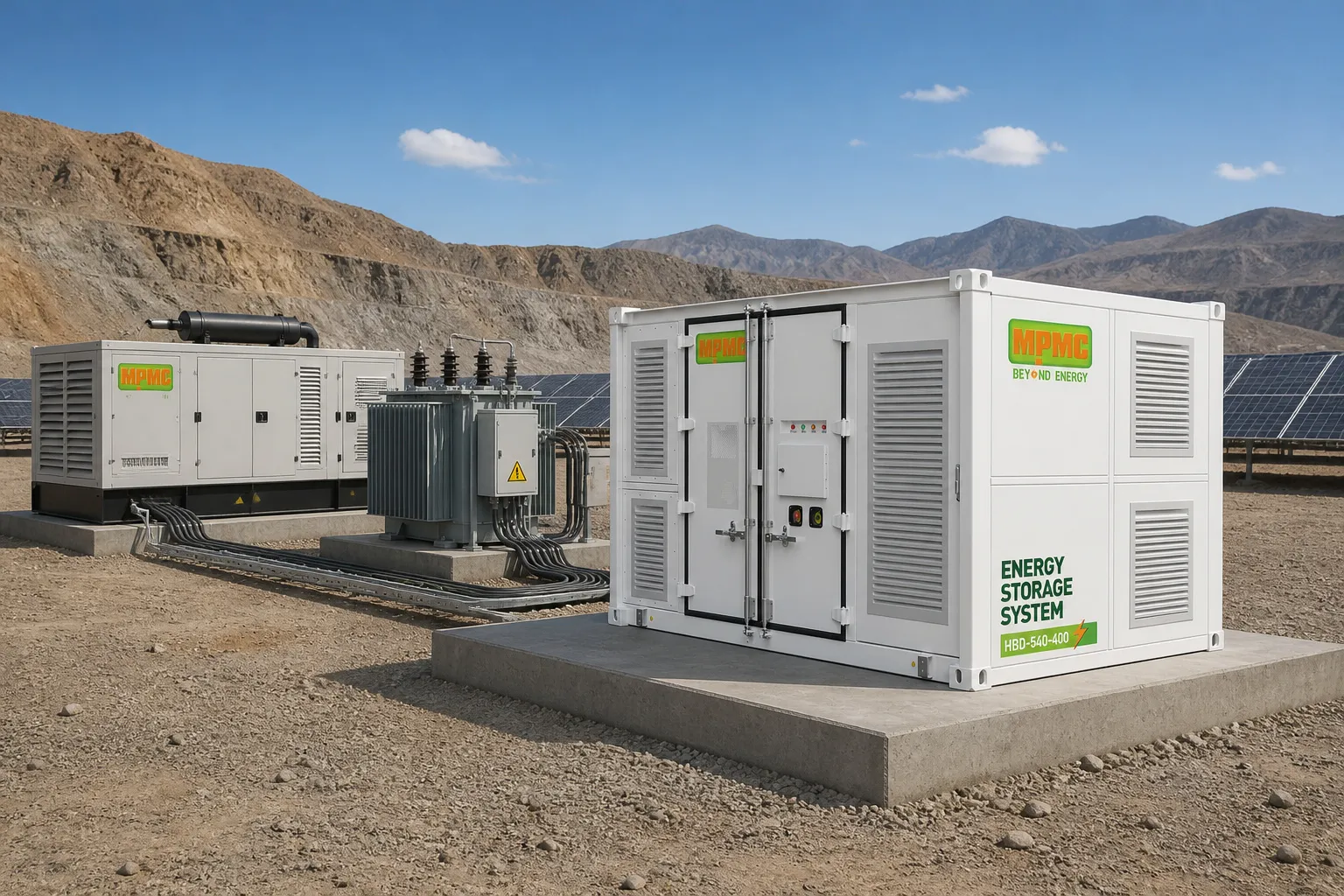

Designed to optimize energy costs and ensure power resilience, it is ideal for diesel genset hybridization (slashing fuel consumption and emissions), remote mining and quarry operations, heavy construction sites, and industrial microgrids requiring reliable peak shaving and backup power.
HBD® Series is a new range of secure, integrated battery energy storage systems. This modular solution includes batteries, PCS, LCAC, FSS, and EMS, with optional components such as STS, PV inverters, PV modules, ATS, and auxiliary units to meet diverse application needs. Support emergency backup, peak shaving, Arbitrage, Grid Service,Self -consumption
Technical Specifications
Detailed engineering parameters for HBD-540-400.
| Model | HBD-540-400 |
|---|---|
| Typical Application | Heavy Duty Condition, Fixed Separated Hybrid Solution |
| Rated Power (AC Output) | 540kW |
| Battery Capacity @25°C | 407kWh |
| Rated Voltage / Phase | 400Vac / 3P |
| Frequency | 50/60Hz |
| AC Connection | 3P4W |
| Battery Cell Type | LFP |
| BESS Cluster Energy | 203.52kWh |
| Cycle Life @90%DOD | 6000 cycles |
| AC Rated Power | 540kVA |
| Control System | EMS |
| Cooling System | Liquid Cooling |
| Fire Fighting System | Aerosol (CE) |
| Operating Temp. | -20~55°C |
| Altitude | ≤3000m (> 2000m derating) |
| IP Class | IP65 |
| Painting Level | C-4 |
| Dimensions (L x W x H) | 3950*2250*2250 mm |
| The Loading Capacity | 3 units / 40'HC |
| Weight | ~5900kg |
