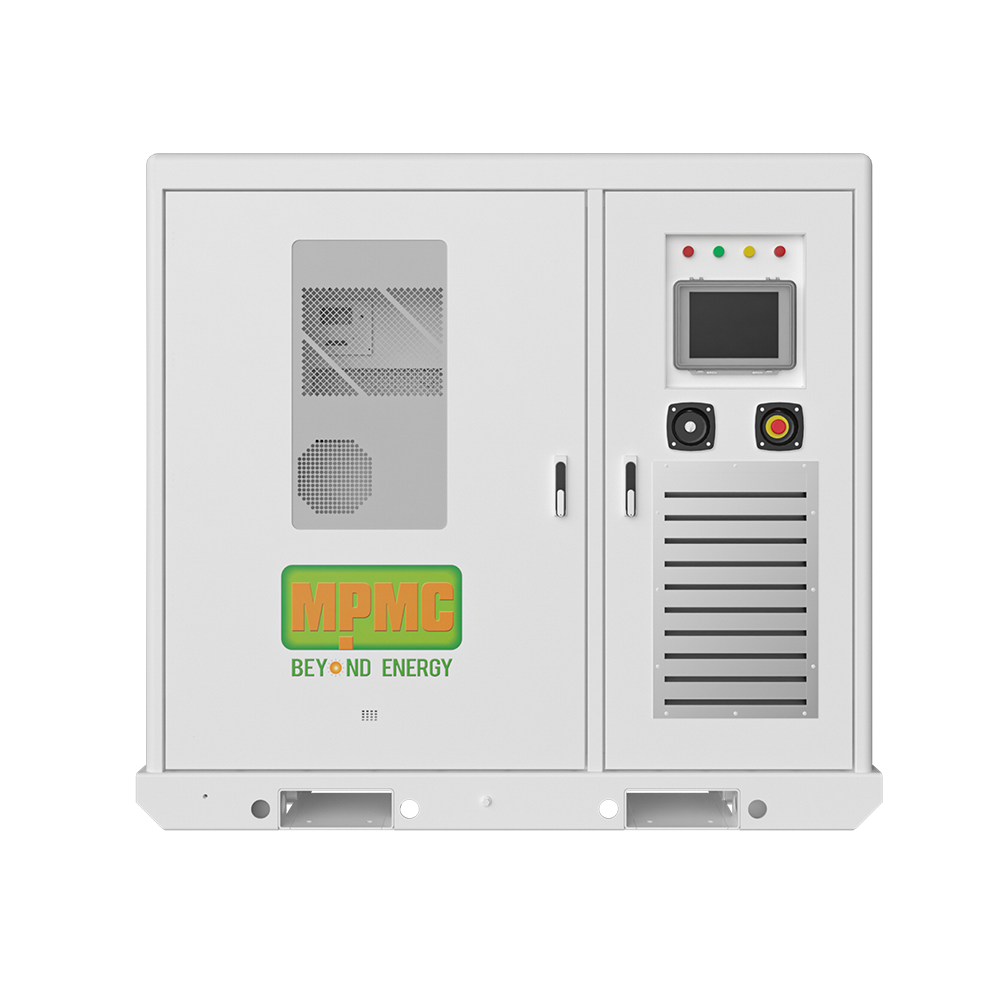

HBD-30kW-60kWh

HBD^® is a new range of secure integrated battery energy storage system. This mobile and modular solution includes batteries, PCS and control system; HVAC, fire protection and auxiliary components for option. It can be an connected to an external PV power station, AC generator and grid power.

HBD-30kW-60kWh

BESS HBD-30-60 Datasheet.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Video

Design Standards

HBD^® is a new range of secure integrated battery energy storage system. This mobile and modular solution includes batteries, PCS and control system; HVAC, fire protection and auxiliary components for option. It can be connected to an external PV power station, AC generator and grid power.

HBD^® is mainly developed for no emission and low noise, reducing the dependence on the grid, improving power supply quality and ensuring the power consumption of emergency loads.

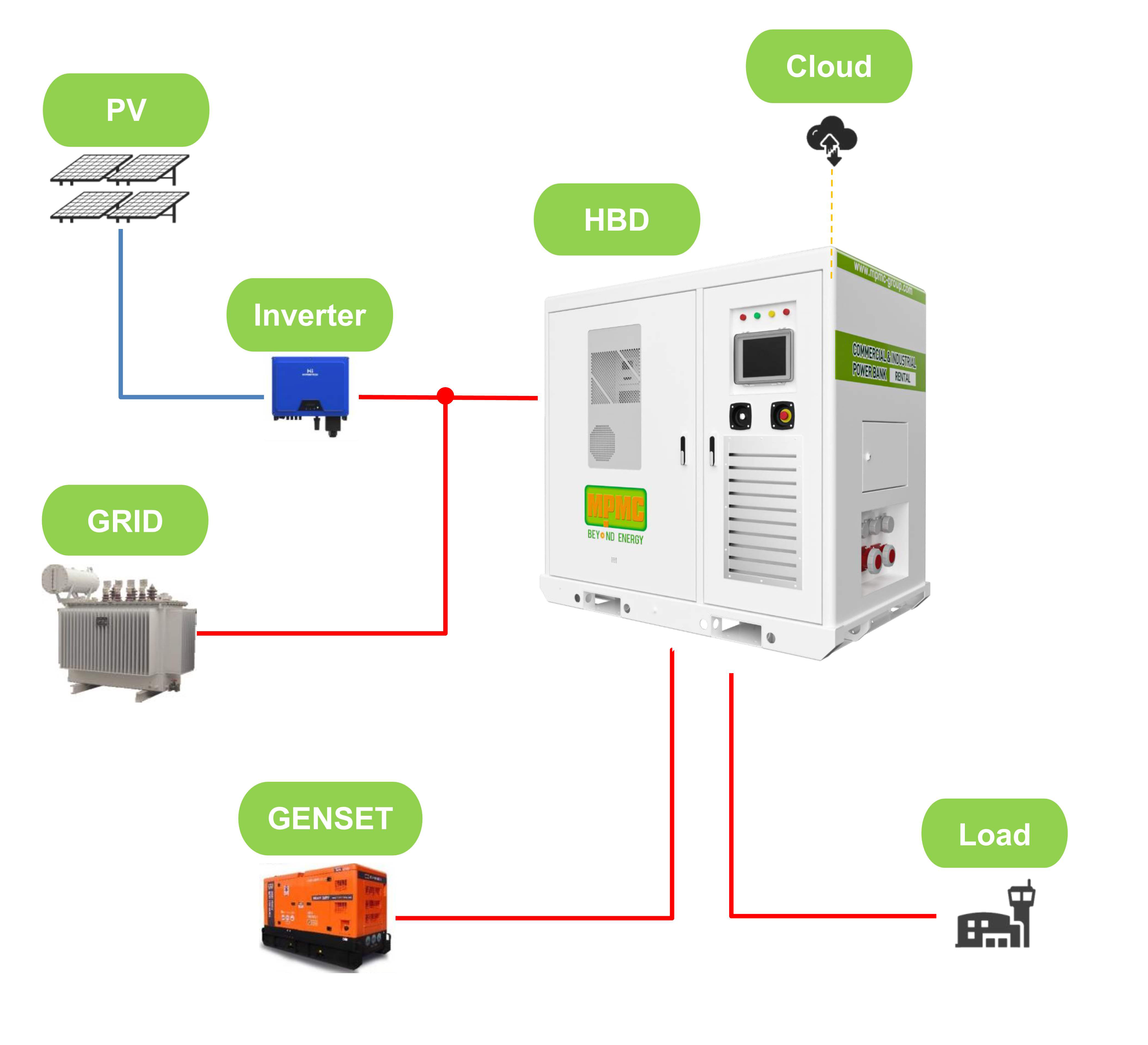

Scene Diagram

Benefits

1. Integrated installation, convenient storage and transportation;

2. High return on investment and short payback period;

3. Simple operation and easy maintenance;

4. Power and Capacity can be expanded, meet different user needs;

5. Accept customer customization, suitable for various scenarios;

Specification

General Information
Model	HBD-30-60
Rated Output Power@25℃	30kW
Rated Output Voltage	400V@50Hz,3ph.
Battery Storage Capacity	61.44kWh
Loading Dimension(LWH)	195011501800mm
Weight	2000kg
Operating Temperature Range	-20~50°C(> 45℃ derating)
Max Altitude	3000m(> 2000m derating)

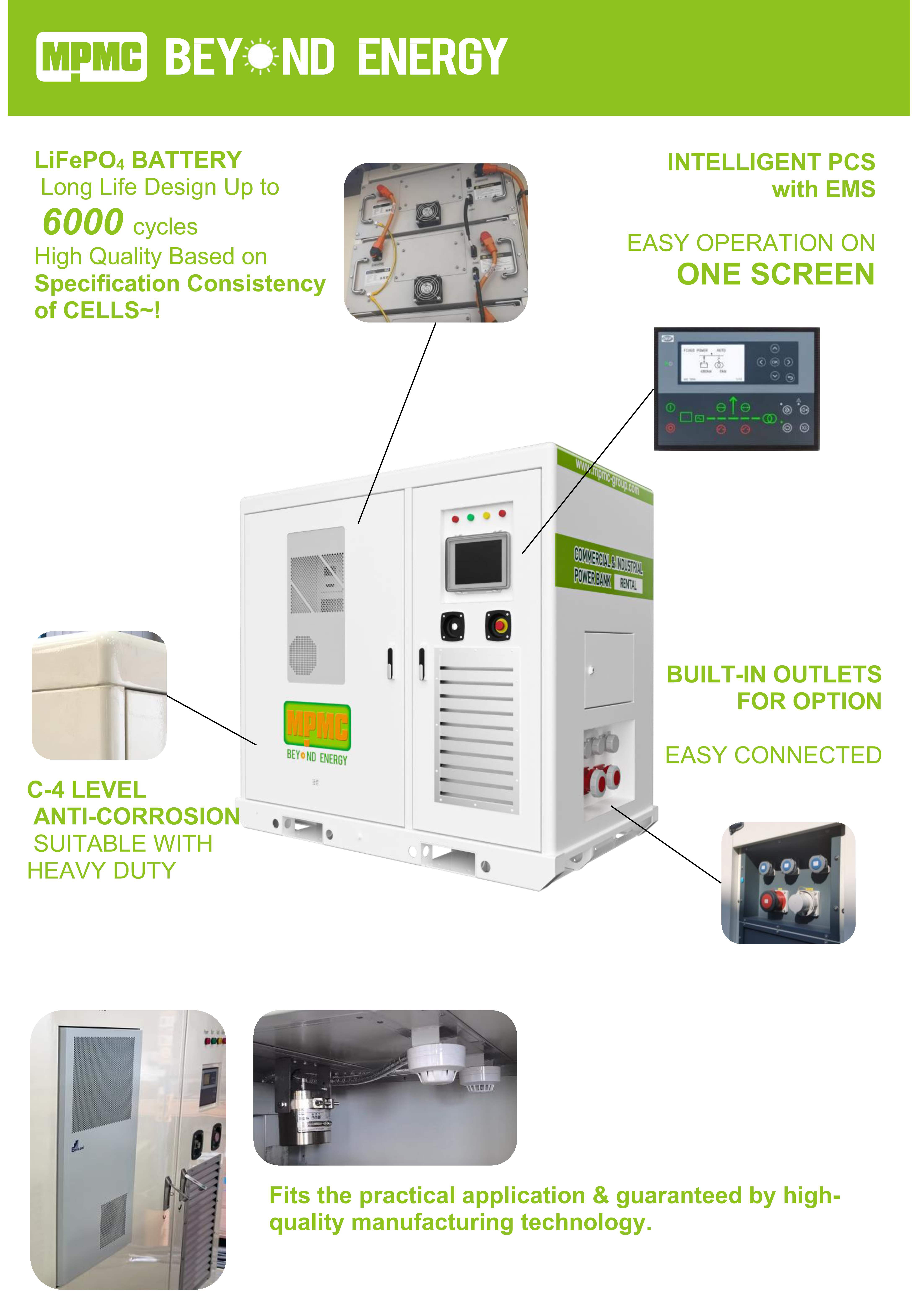

Intelligent PCS with EMS easy operation on one screen
LiFePO4 battery long life design up to 6000 cycles high quality based on specification consistency of cells
Built-in outlets for option easy connected

Battery
Cell Type	LFP(LiFePO4)
Pack Model	MF51100
Pack Capacity	5.12kWh
Pack Rated Voltage	51.2VDC
Cyclic Life	6000(0.5C@90%DOD)
Charger/Discharge Current	50A(0.5C)
Battery Voltage of Rack	614.4VDC
Connection of Rack	12S1P
PCS
Battery Voltage Range	150~750VDC
Max. Current (AC)	47.6A
Max. Output Power	33kW
Rated Output Power	30kW
Rated Voltage	400Vac
AC Input Voltage Range	340~460Vac
Rated Frequency Range	50/60Hz(±2.5Hz)
PF	1 lagging~1 leading
AC Connection	3W+N+PE
Max. Efficiency	97.3%
Transformer	N/A
Communication	CAN/RS485/Ethernet/WIFI
Grid-tied Certificates	EN50549, AS4777.2, VDE4105, G99, IEEE1547, NB/T 32004
Safety Certificates	IEC62109, NB/T 32004, UL1741
EMC Certificates	IEC61000, NB/T 32004
Cooling System
Cooling Type	HVAC
Operation Mode	Refrigeration and heating
Fire Protection
Type	Aerosol (CE)
EMS
Display and Monitor	Local screen/APP/Web
Function	Energy management and coordinated control of energy storage system
