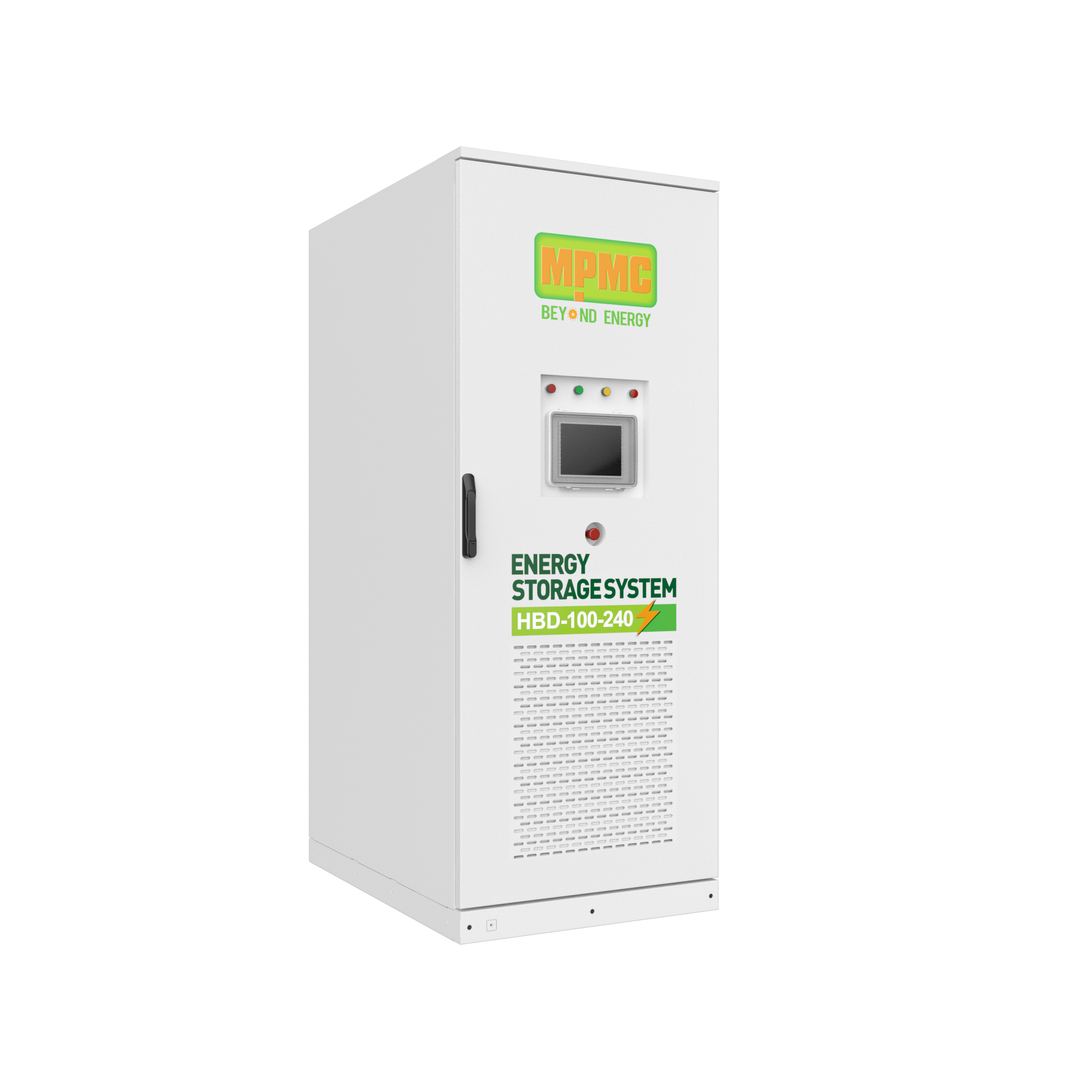

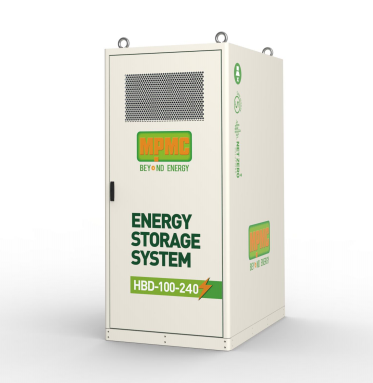

HBD-100kW-240kWh

HBD ® is a new range of secure integrated Battery Energy Storage System. This modular solution includes batteries, PCS and control system; HVLC, fire protection and auxiliary components for option. It can be connected to external PV power station, AC generator and grid power.

HBD-100kW-240kWh

BESS HBD-100-240 Datasheet.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Design Standards

HBD^® is a new range of secure integrated battery energy storage system. This mobile and modular solution includes batteries, PCS and control system; HVAC, fire protection and auxiliary components for option. It can be connected to an external PV power station, AC generator and grid power.

HBD^® is mainly developed for no emission and low noise, reducing the dependence on the grid, improving power supply quality and ensuring the power consumption of emergency loads.

Benefits

·Weatherproof cabinet, C4 & UV resistant;
·Modular assembly;
·High Safety;
·Better Efficiency;
·Professional liquid cooling system

Intelligent Operation and Maintenance

Specification

Cell Type	LFP(LiFePO4)
Pack Capacity	48.23kWh
Pack Rated Voltage	153.6VDC
Cyclic Life	6000(0.5C@90%DOD) @25。C
Charger/Discharge Current	140A(0.5C)
Battery Voltage of Rack	768 VDC
Connection of Rack	5S1P
PCS
Battery Voltage Range	615~950VDC
Max. Current (AC)	167A
Max. Output Power	116kW
Rated Output Power	105kW
Rated Voltage	400Vac
Rated Frequency Range	50/60Hz
PF	1 lagging~1 leading
AC Connection	3W+N+PE
Max. Efficiency	99%
Communication	CAN/RS485
Grid-tied Certificates	EN 50549, NRS 097, C10/11, G99, VDE-AR-N 4105
Safety Certificates	IEC 62477
EMC Certificates	IEC 61000-6-2, IEC 61000-6-4
Cooling System
Cooling type	Liquid cooling
Operation Mode	Refrigeration
Type	Aerosol Fire Suppression
EMS
Display and Monitor	Local screen/APP/Web
Function	Energy management and coordinated control of energy storage system
STS (Optional)
Rated Power	100kW

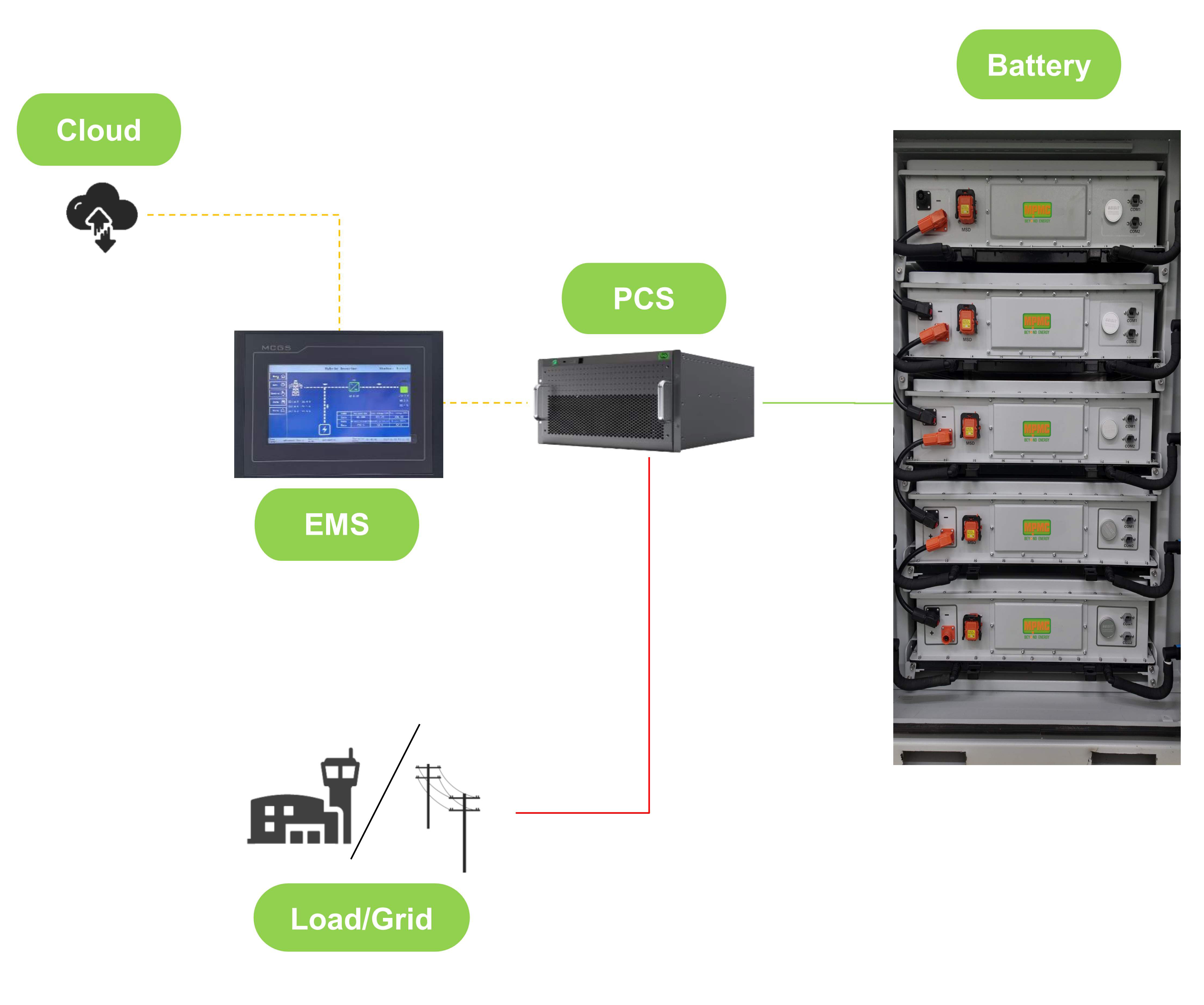

Basic Logic
