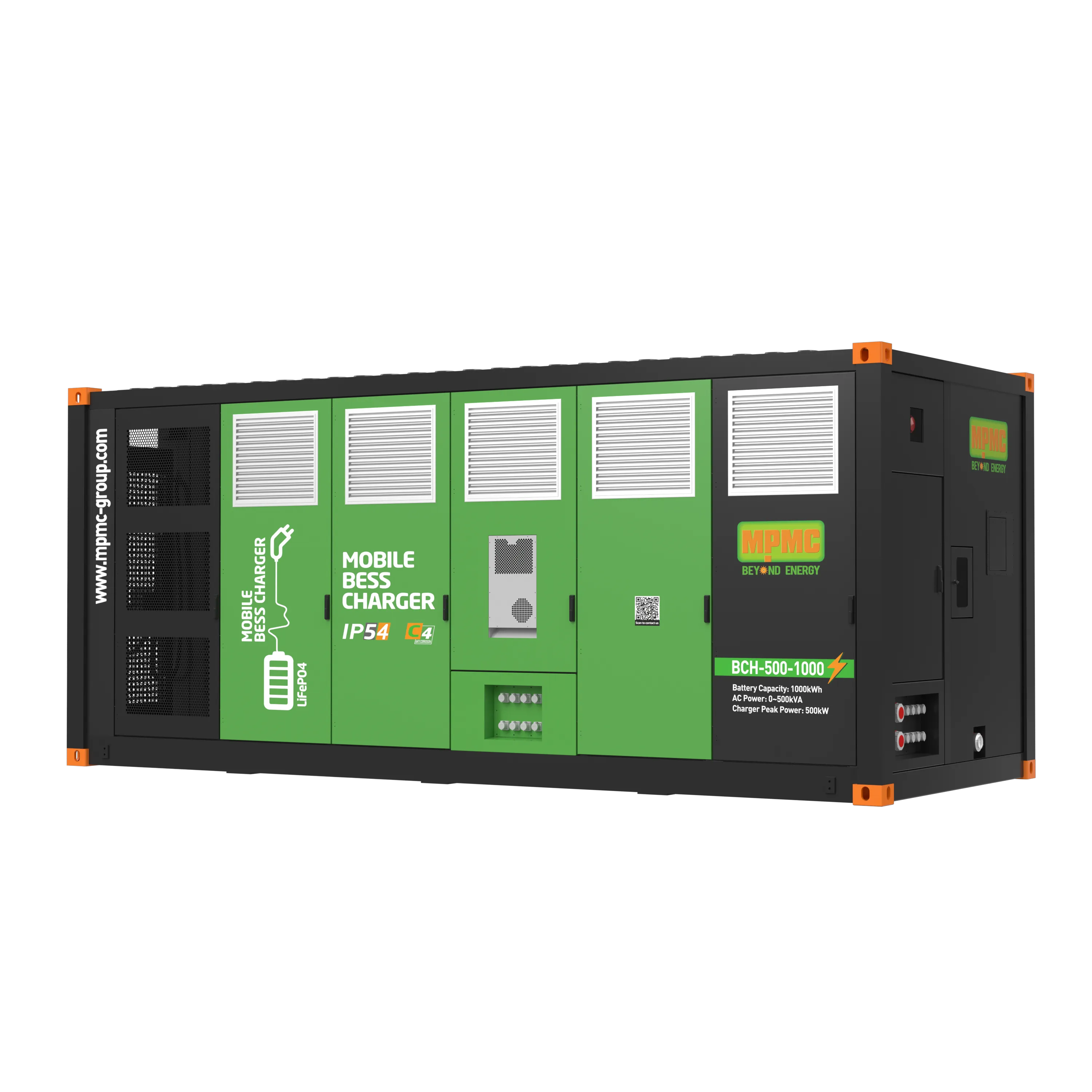

BCH-500kW-1000kWh Mobile BESS Charger
BCH® is a new range of charging solutions for electric drive equipment and electric vehicles. The product is designed based on mobile scenarios, fully considering the issues of convenience and security — becoming a brand new choice for power transportation.
The BCH-500kW-1000kWh integrates a 1075kWh LFP battery storage system with a 500kW DC fast charger in a single 20' GP container, enabling rapid deployment at any site. The system accepts AC grid input up to 500kW (380–415Vac) and delivers DC output at up to 1000V via dual CCS-2 charging guns. Engineered to meet C-5 heavy-duty anti-corrosion standards, the BCH is purpose-built for demanding outdoor environments including ports, mining sites, construction zones, and logistics hubs.
| General Information | AC Side | DC Side | |
|---|---|---|---|
| Rated Output Power@25℃ | 500kVA | 500kW | |
| Rated Output Voltage | 380V@50/60Hz,3ph.4W (400V & 415V available) |
DC 50V~1000V | |
| Rated Battery Storage Capacity | 1075 kWh | ||
| Output | Terminals | N/A | CCS-2 350A Gun * 2 sets |
| Sockets | 800A 5P PowerLock*1 set; CEE 125A/5P*1 set; CEE 63A/5P*1 set; CEE 32A/5P*1 set: CEE 16A/3P*3 sets |
N/A | |
| Input | Sockets | 800A 5P PowerLock*1 set for AC Power; 630A 5P PowerLock*1 set for SOLAR |
CCS-2 400A*1 set |
| Protection Class | IP54 | ||
| Loading Dimension(W*D*H) | 20'GP | ||
| Net.Weight | 19800 kg | ||
| Loading Capacity | 1 units@20'GP | ||
| Discharge Temperature Range | -20~50℃(> 45 ℃ derating) | ||
| Max Altitude | 3000m(> 2000m derating) | ||
| Certificate | IEC 61000,IEC 62477,UN38.3 | ||
