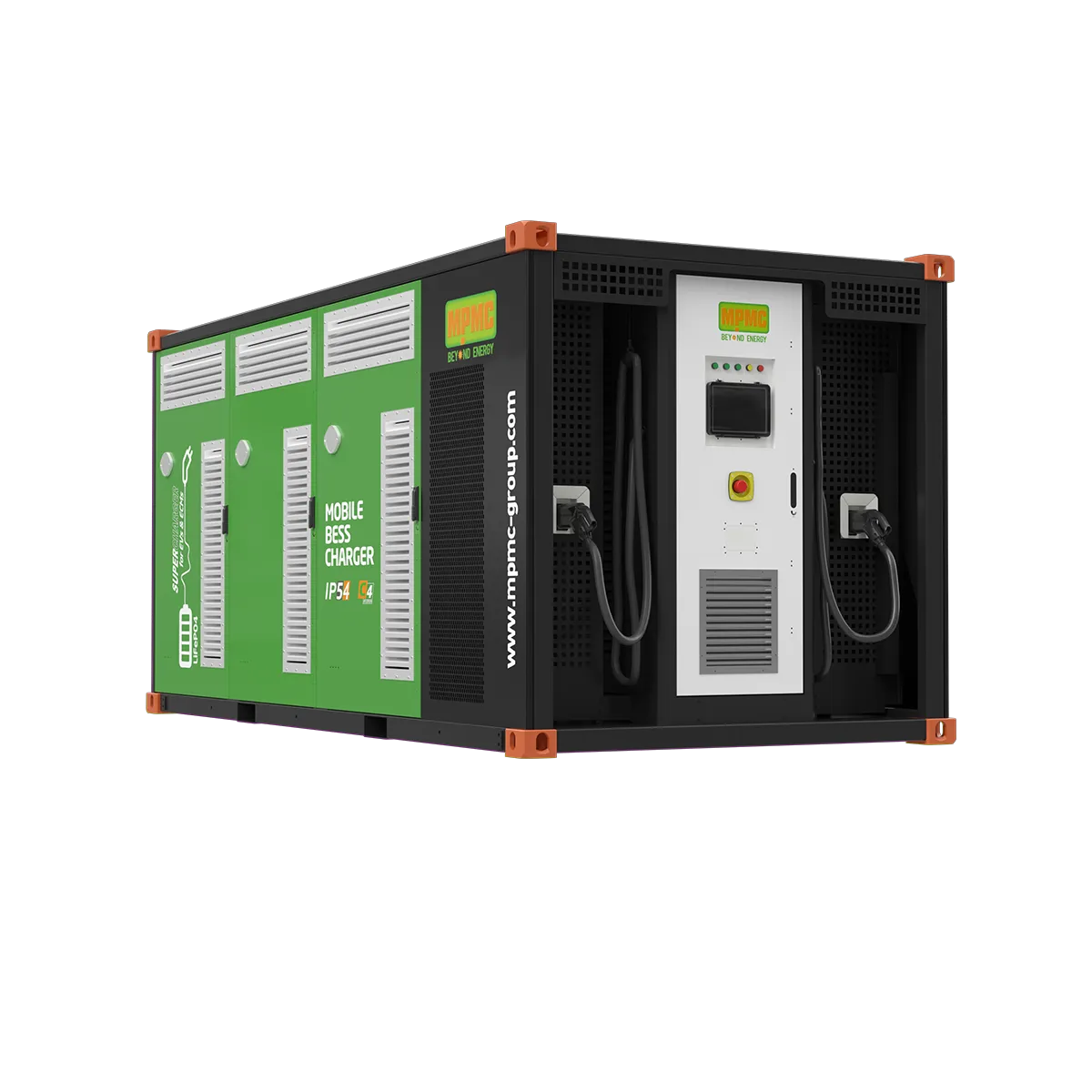

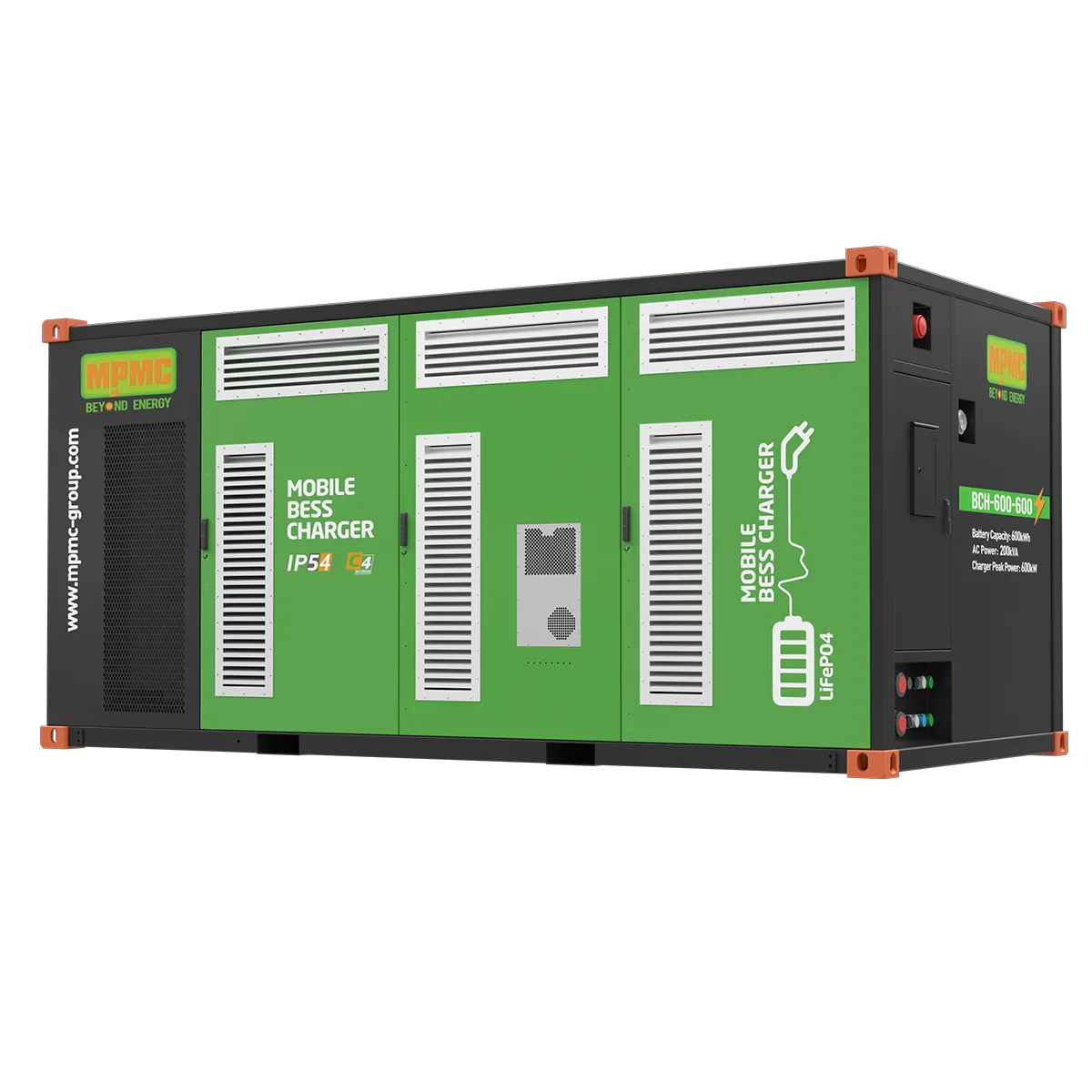

BCH-600kW-600kWh Mobile BESS Charger
MPMC BCH-600kW-600kWh Mobile BESS Charger is our flagship, ultra-high-power mobile supercharging powerhouse, specifically engineered for extreme high-power DC fast-charging demands. Purpose-built without AC conversion for maximum DC-to-DC efficiency, it integrates a massive 610.6 kWh battery capacity with a high-performance 600 kW dual-gun liquid-cooled CCS2 (600A) DC fast-charging system. Designed for heavy electric mining haulers, large construction machinery, and high-turnaround commercial fleet depots, the BCH600-600 delivers extreme charging speed to maximize equipment uptime.
BCH® is a new range of charging solutions for electric drive equipment and electic vehicles.The product is designed based on mobile scenanios,fully considening the issues of convenience and security.Becoming a brand new choice for power transportation.
· Integrated installation,convenient storage and transportation;
· High return on investment and short payback period;
· Simple operation and easy maintenance;
· Power and Capacity can be expanded,meet different user needs;
| Model | BCH-600-600 | |
|---|---|---|
| Typical Applications | Mobile BESS & EV Charger (DC Fast Charging) | |
| EV Charger | Rated Output Power | 600kW |
| Connector Type | CCS2 600 A Charging Gun | |
| Connector Qty. | 2 | |
| Cooling System | Liquid | |
| Charger Output Voltage | DC 50 ~ 1000 V | |
| Connector Cable Length | 6m | |
| DC Input | Rated Current | 350A |
| Voltage | DC 672 ~ 864 V | |
| Connection | CCS-2 Socket*1 | |
| General | Control System | EMS with 4G (*OCPP1.6) |
| Cooling System | LCAC | |
| Fire Fighting System | Aerosol(CE) | |
| Battery Storage Capacity @25°C | 610.6kWh | |
| Cycle Life@90%DOD | 6000times | |
| Loading Dimension (L*W*H) | ~4800*2250*2250mm | |
| The Loading Capacity | 1 unit/20'GP (Overweight for 2 units/40'GP) |
|
| Weight | ~11200 KG | |
| Operating Temperature Range | -20~50°C (> 45°C derating) | |
| Max altitude | 3000m (> 2000m derating) | |
```
