BCH 80kW-70kWh Mobile BESS Charger



MPMC proudly presents the Mobile BESS Charger: A versatile, portable solution for all your emergency power needs. Ensure uninterrupted device charging wherever you are with this cutting-edge innovation. Experience reliability and convenience like never before.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description
Design Standards

Model:BCH-80-70

Mobile BESS Charger

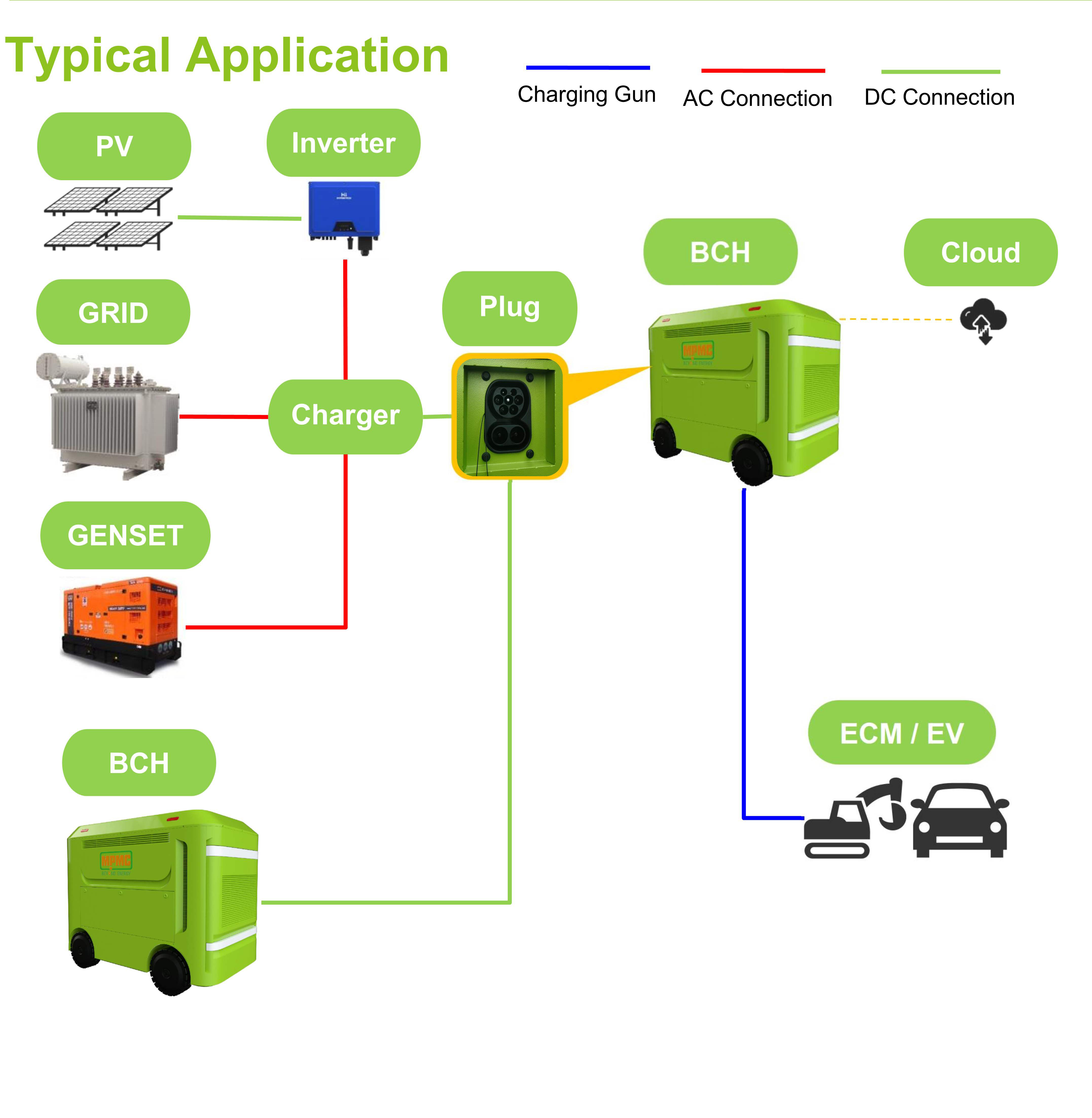

Application

BCH® is a new range of secure integrated mobile

battery energy storage system & mobile EV charger.

This mobile and modular solution includes batteries, DC

charger and smart control system, liquid heating and

liquid cooling thermal management system and fire protection.







Benefits

Standing driving, wide vision, easy to use;

Convenient chargingand transportation, intelligent management;

6mliquid cooled charging cable;

7 Inch Touch Screen with English;

Over 94% peak efficiency;

Flexible configuration;

Simple operation and easy maintenance;

LifePO4 battery,Long Life Design Up to 6000 cycles;

High Quality Based onSpecification Consistency of CELLS~!;

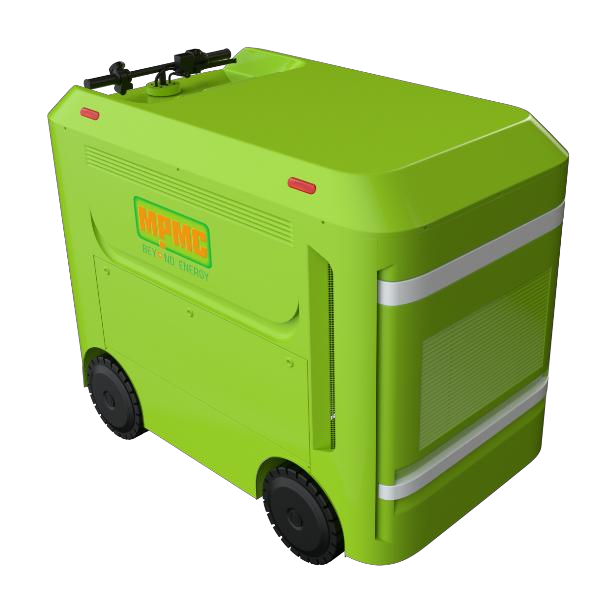

Product Picture
Specification

General Information

Model

BCH-80-70

Max. Output Power

80 kW

Battery Storage Capacity

70 kWh

Battery Type

LFP (LiFePO4)

Loading Dimension(L*W*H)

1460 x 780 x 1200 mm

Weight

880 kg

Operating Temperature Range

-20 ~ 55 °C (> 55 ℃ derating)

Max Altitude

3000 m (> 2000 m derating)



Drive System

Drive System

Standing Driving (Electric Drive)

Drive Method

Front Wheels for Turn, Back Wheels for Drive

Max. Drive Speed

1.5 m/s (5.4 km/h)

Minimum Turning Radius

1.7 m

Max. Grade Climbing

20°

Brake

Disc

Output

Max. Output Power

80 kW

Output Interface

CCS2 x 1

Output Voltage

200 ~ 1000 Vdc

Max. Output Current

260 A

Max. Efficiency

95.4%

Cable Length

6m (Liquid Cooled)

Protocol

DIN 70121, ISO 15118

Input

Max. Input Power

70 kW

Input Interface

CCS2 x 1

Rated Input Voltage

450 Vdc

Max. Input Current

150 A

Others

Heat Management System

Liquid Heating & Liquid Cooling

Fire Protection

Aerosol Fire Suppression

IP Rating

IP54

Network Interface

4G, Wi-Fi

Network Protocol

OCPP 1.6J

Standards and compliance

IEC 61851-1, IEC 61851-23

Certification

CE

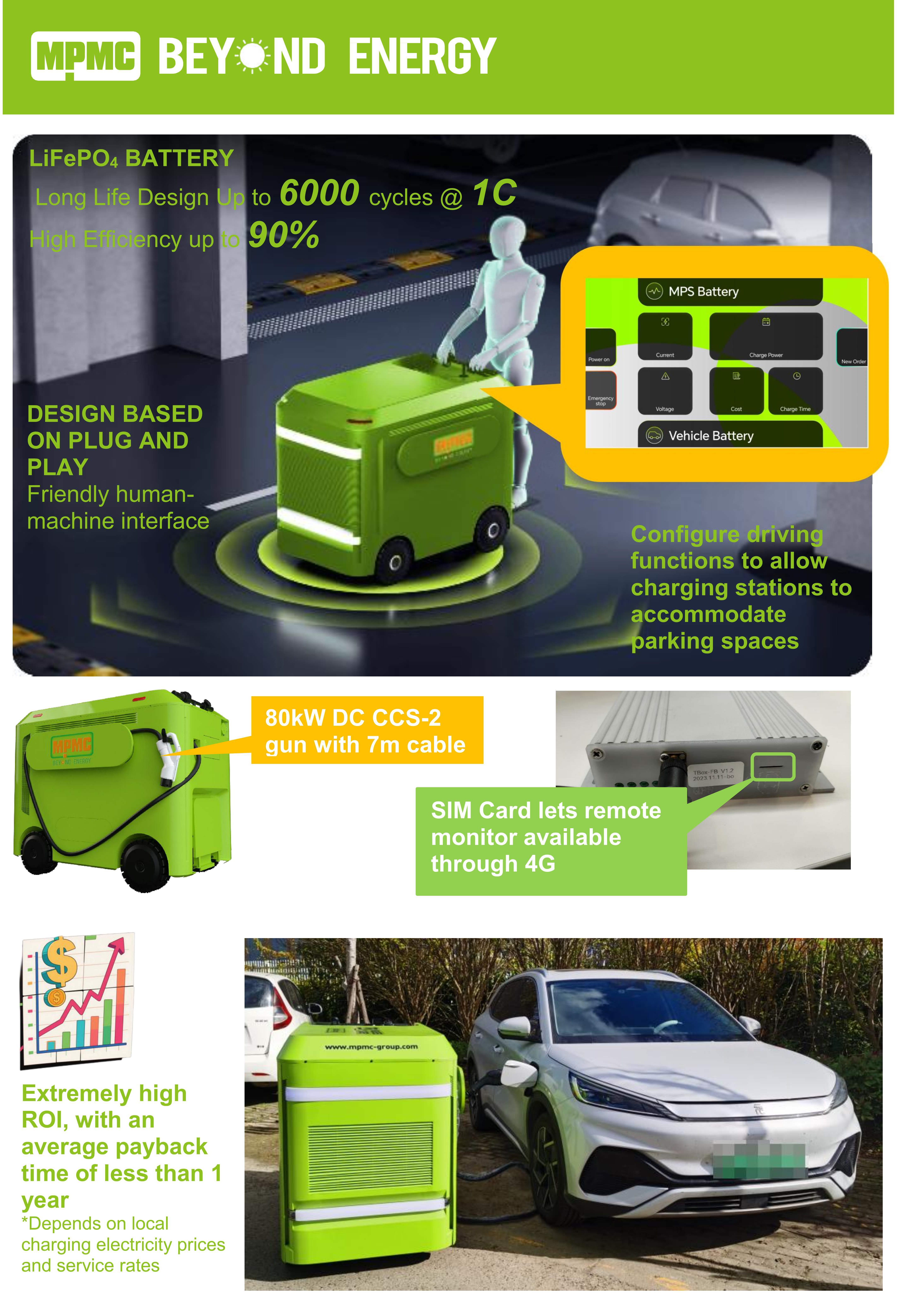

Reference Images

Product Details
