HBD-200kW-200kWh
MPMC HBD-200-200 is a 1C high-rate mobile energy storage solution tailored for heavy-rotation rental, mobile construction works, factories and industrial parks. Featuring 200kW continuous power and 203.5kWh capacity with long cycle lifespan, it delivers strong instantaneous load capacity, perfectly suited for frequent relocation and diverse heavy-duty temporary power demands.
Adopting high-efficiency LCAC liquid cooling system and intelligent EMS management, this plug-and-play mobile power unit ensures stable and reliable operation under high-rate continuous discharge. Integrated with full-range safety protection configurations and optional AC PV input, it adapts to complex outdoor and industrial working environments. Lightweight and container-friendly, the 3t compact cabinet enables fast deployment and flexible transportation, providing zero-emission, low-noise clean power for rental fleets, construction sites and industrial standby power scenarios.
HBD-200kW-200kWh
The MPMC HBD-200-200 features a superior 1C charge/discharge rate, delivering exceptional power surges for construction impact loads. It is the ultimate choice for heavy-duty tunnel and urban infrastructure engineering.
Core Advantages
1C High Power Surge
Engineered for impact loads (motor starts), providing 200kW output instantly with high stability.
LCAC Liquid Cooling
Advanced liquid cooling ensures stable battery temperatures even during high-frequency 1C operation.

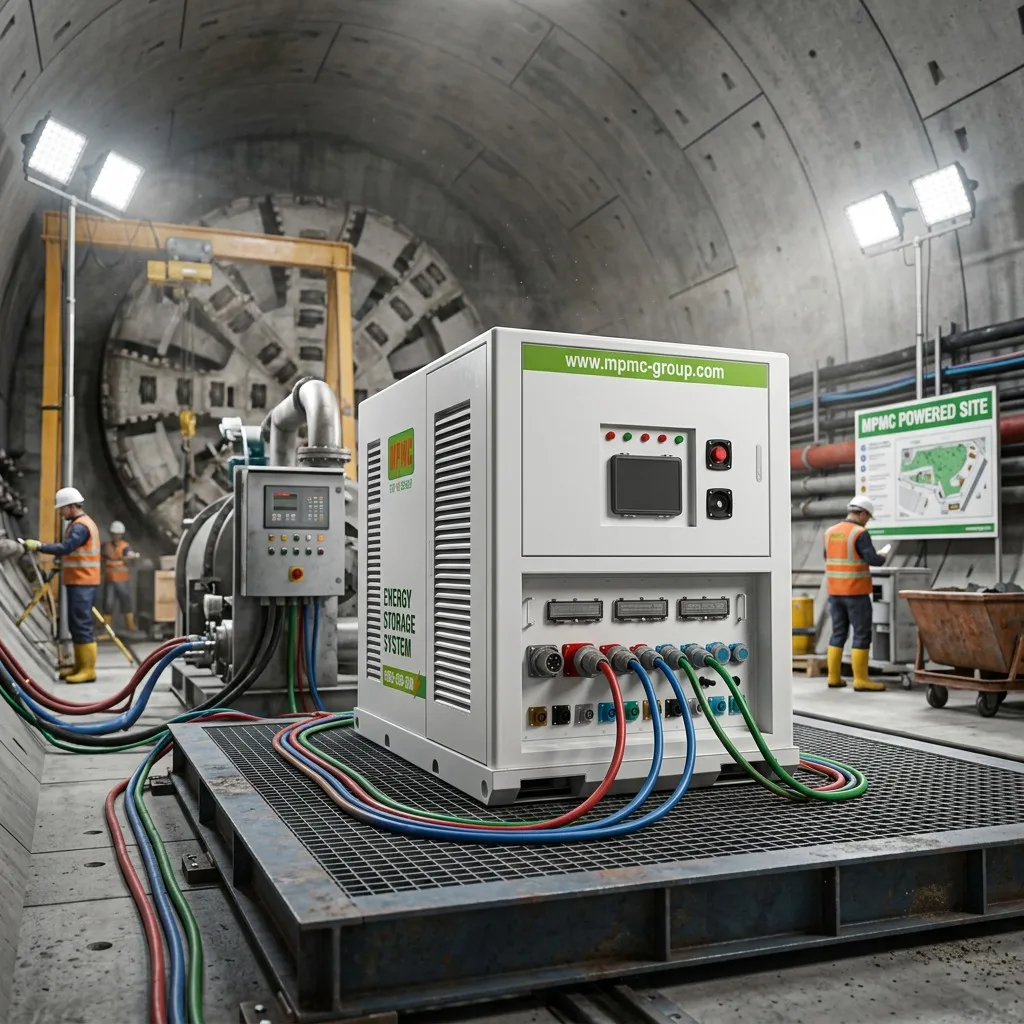

Urban Tunnel Ready
Zero emissions and silent operation make it ideal for enclosed urban tunnel projects.
Multi-Socket Panel
Standardized high-current quick-plugs for immediate power distribution to site equipment.
System Specifications
| General Information | |
| Rated Power (Continuous) | 200kW |
|---|---|
| BESS Energy @ 25℃ | 203.5kWh |
| Charge/Discharge Rate | 1C / 1C |
| Cooling System | LCAC (Liquid Cooling) |
| Rated Voltage/Phase | 400Vac/3P (346V~415V changeable) |
| Fire Fighting System | Aerosol + Off-gas detector + water spray |
| Battery System | |
| Pack Capacity | 265Ah |
| Pack Qty. | 5pcs |
| Battery Cluster Voltage | 768VDC |
| Cycle Life @ 90%DOD | 6000 times |
| PCS & Control | |
| PCS Model | PWS1-135M (x2) |
| PCS Rated Power | 135kW (per module) |
| Control System | EMS |
| Physical Parameters | |
| Dimensions (L x W x H) | 2250 * 1450 * 1800 mm |
| Weight | 3 t |
| Loading Capacity | 4 units/20'GP | 8 units/40'GP |
Technical FAQ
Large equipment like tower cranes and concrete pumps have massive starting surges. A 1C rate allows the HBD-200-200 to output high power instantly without voltage drops or battery protection trips.
In enclosed or poorly ventilated tunnel environments, liquid cooling effectively removes heat from the battery packs, maintaining consistency and safety that air cooling cannot provide.
Yes. The HBD-200-200 supports a wide range of output voltages (346V to 415V) and 50Hz/60Hz switching, making it a truly global mobile power asset.
Industrial & Commercial Backup
Backup power for production lines, data centers, and base stations to avoid shutdown losses.
Peak Shaving & Valley Filling
Store power during low tariff periods and discharge at peak to reduce electricity costs.
Off-Grid & Construction
Stable power supply for construction sites, mines, and outdoor off-grid working scenarios.
Renewable Energy Storage
Work with solar & wind systems to store excess energy and improve usage efficiency.
Emergency & Disaster Relief
Emergency power for hospitals, rescue sites, shelters and public facilities.
Temporary & Rental Power
Mobile power for exhibitions, events, short-term projects and power rental business.
