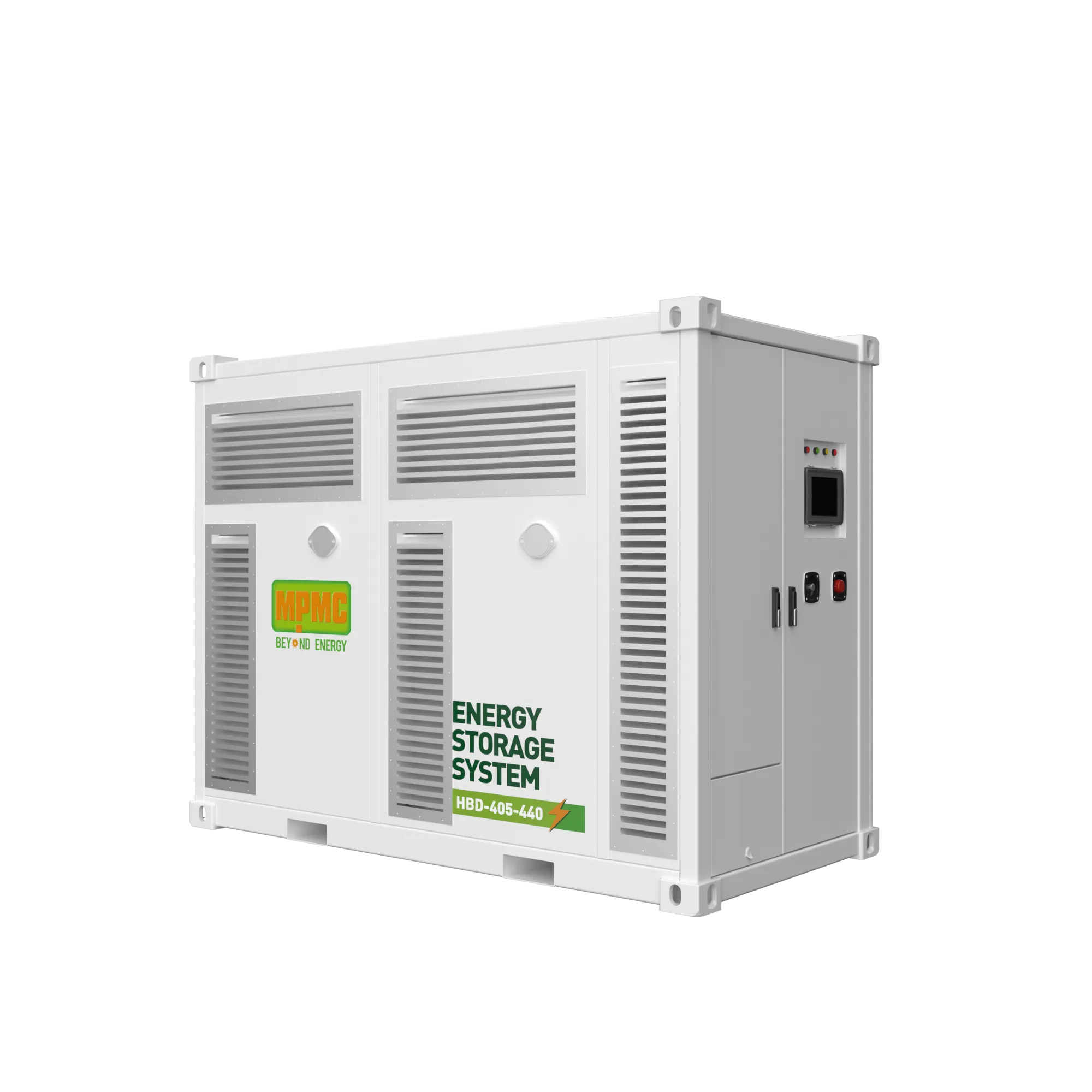

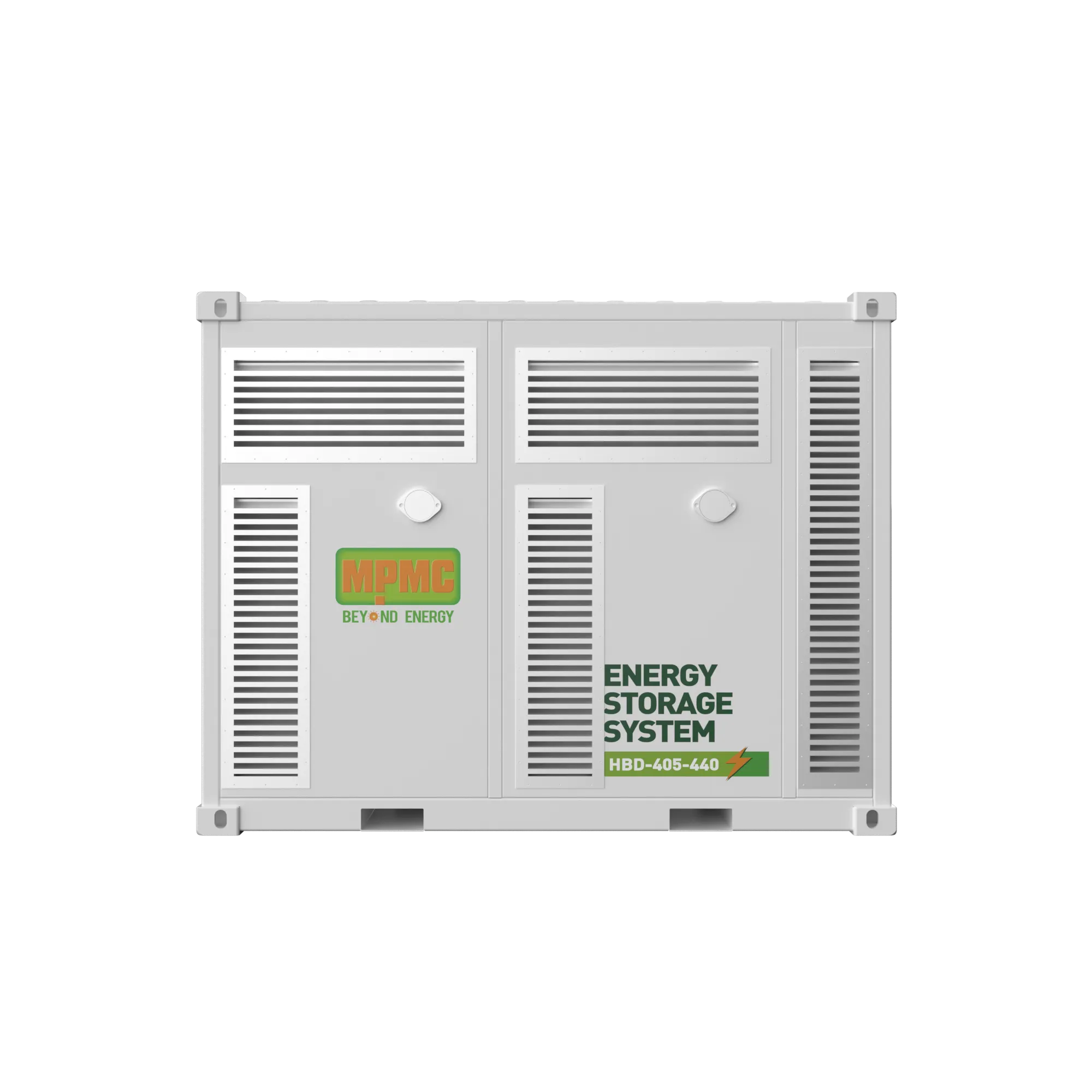

HBD-400kW-400kWh

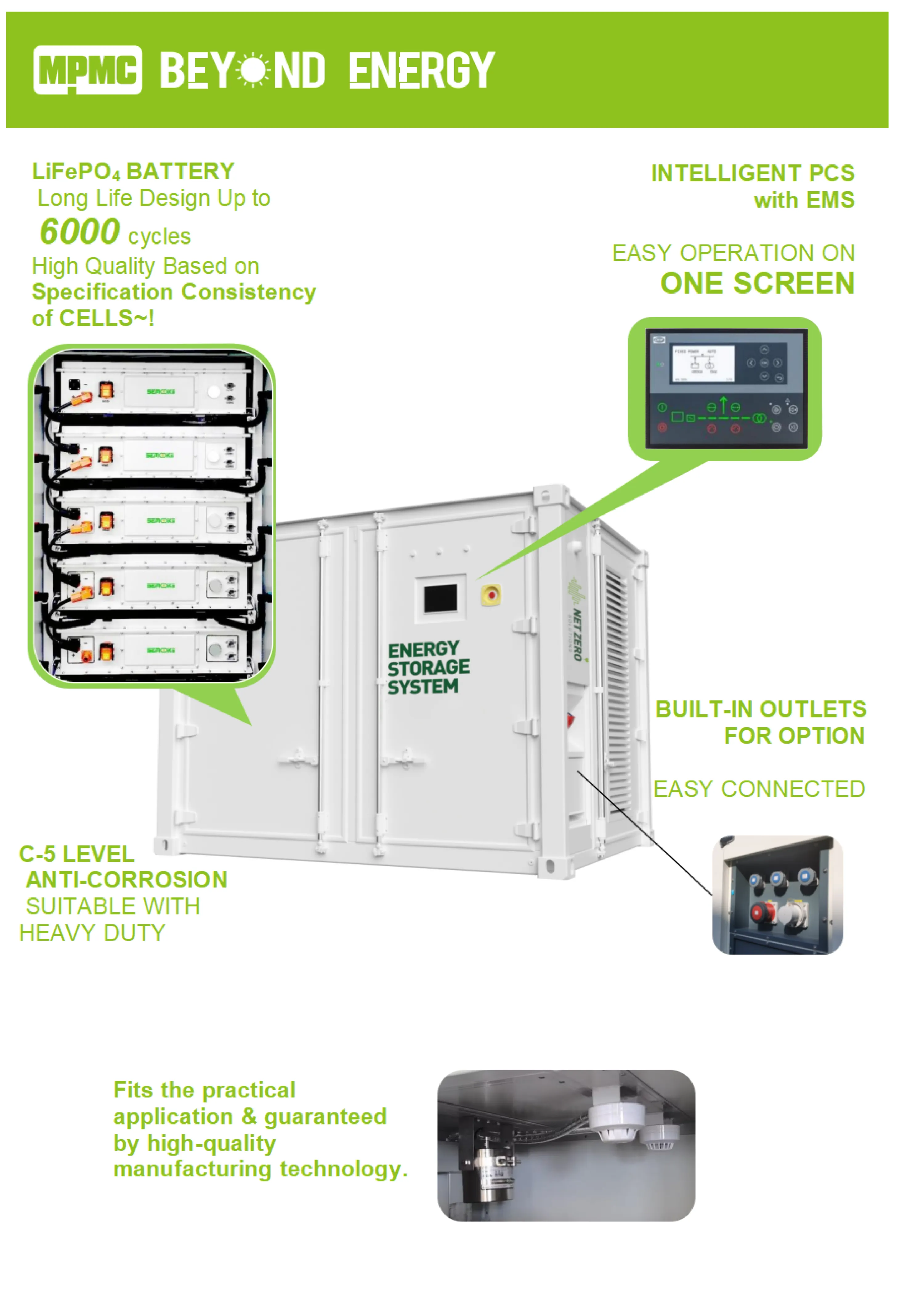

HBD® is a new range of secure integrated Battery Energy storage system.This mobile and modular solution includes batternes,PCS and control system;LCAC,fire protection and auxiliary components are also standard.

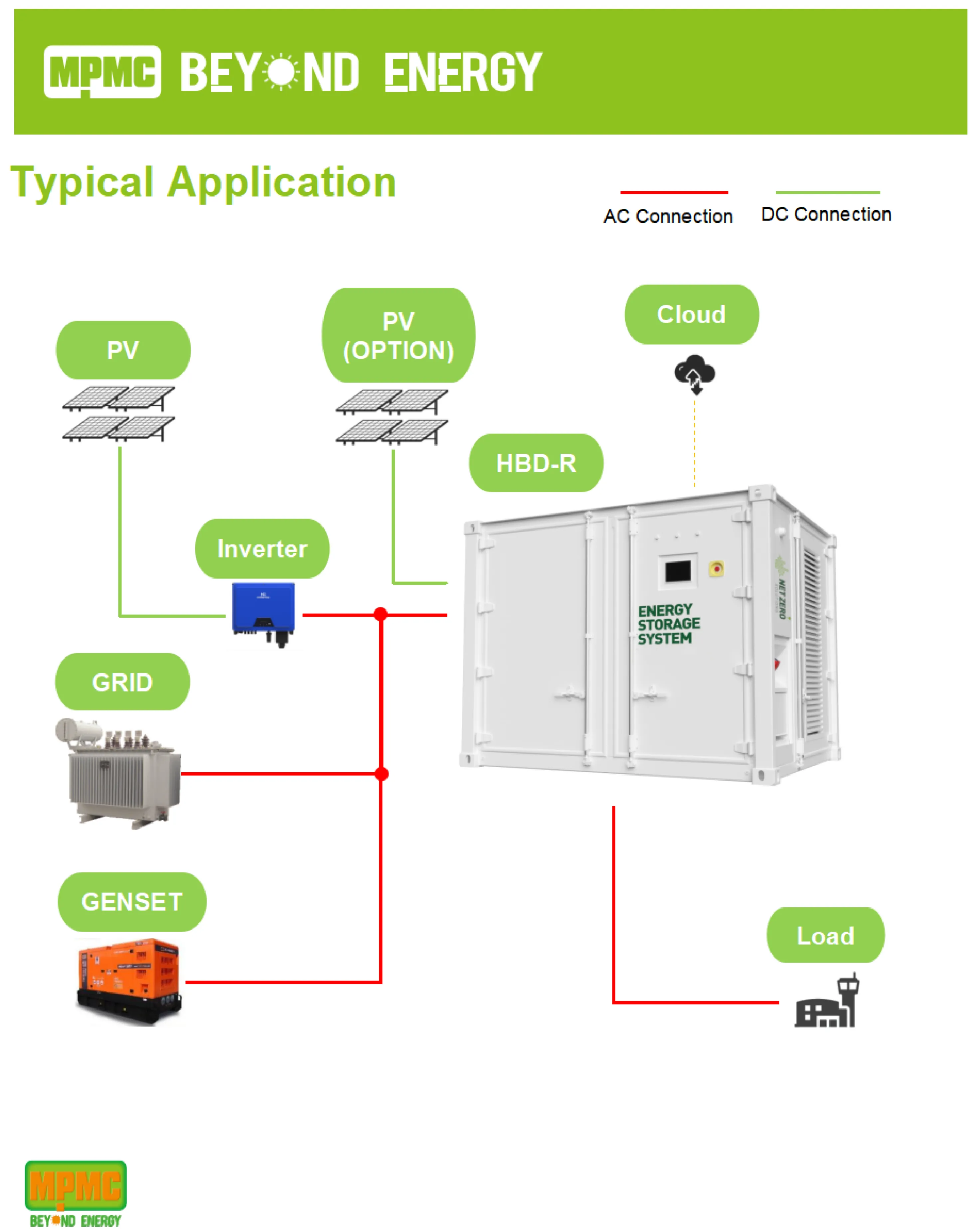

The R series can be connected to extemal PV power station.AC generator and Grid power.
HBD® is mainly developed for no emission and low noise,Reduce the dependence on grid Improve power supply quality and Ensure the power consumption of emergency load.
HBD® is a new range of secure integrated Battery Energy storage system.This mobile and modular solution includes batternes,PCS and control system;LCAC,fire protection and auxiliary components are also standard.
The R series can be connected to extemal PV power station.AC generator and Grid power.
HBD® is mainly developed for no emission and low noise,Reduce the dependence on grid Improve power supply quality and Ensure the power consumption of emergency load.
Integrated installation,convenient storage and transportation;
High return on investment and short payback peiod;
Simple operation and easy maintenance;
Power and Capacity can be expanded,meet different user needs;
| General Information | |||
| Rated Output Power@25 ℃ | 400kVA | 202kVA | |
| Rated Power Factor | 0.8 lagging(Changeable) | ||
| Rated Output Voltage | 380V@50/60Hz,3ph.4W（400V & 415V available） | 208V@50/60Hz,3ph.4W（208~240V available） | |
| Rated Battery Storage Capacity | 407 kWh | ||
| Output | Terminals | Copper Busbar | |
| Sockets | MAX. 7 Sockets available | ||
| Protection Class | IP54 | ||
| Loading Dimension(W*D*H) | 3650*2250*2250mm | ||
| Net Weight | ~8000 kg | ||
| Loading Capacity | 20'GP | 1 units | |
| 40'HC | 3 units | ||
| Discharge Temperature Range | -20~50℃(>45℃ derating) | ||
| Max Altitude | 3000m(>2000m derating) | ||
| Battery | |
| Cell Type | LFP(LiFePO4) |
| Pack Capacity | 40.7 kWh |
| Pack Rated Voltage | 153.6 VDC |
| Cyclic Life | 6000 Times(1C@80%DOD) |
| Battery Voltage of Rack | 768 VDC |
| Connection of Rack | 5S2P |
| PCS | |
| Max. Current (AC) | 615 A |
| Max. Output Power | 405 kW |
| Rated Output Power | 405 kW |
| PF | 1 lagging~1 leading |
| AC Connection | 3W+N+PE |
| Max. Efficiency | 98.9% |
| Transformer | N/A |
| Communication | CAN/RS485/Ethernet |
| Grid-tied Certificates | EN50549,VDE4105,G99 |
| Safety &EMC Certificates | IEC61000,IEC62477 |
| Auxiliary Inverter Device | |
| AC Charger(OPTION) | 0kW as standard (Min.40kW~Max 400kW Changeable) |
| Solar Charger(OPTION) | 0kW as standard (Min.60kW~Max 420kW Changeable) |
| PCS(OPTION) | 405kW as standard (Min.135kW~Max. 405kW Changeable) |
| Cooling System | |
| Battery Cabin | LCAC |
| PCS Cabin | Fans |
| Protection Device | |
| Fire Suppressant | Aerosol (CE) first，water inlet valve reserved |
| Sensor | Smoke,temperature,harmful gas,water immersion,door’s open |
| EMS | |
| Display and Monitor | Local screen |
| Function | Energy management and coordinated control of energy storage system |
