Aug 12, 2026
An AI data centre pursuing a low-carbon operating profile has a narrower storage problem than it first appears. The battery is not there to replace the generator set. It is there to reduce how often the generator runs, raise the proportion of on-site renewable generation actually consumed, and manage demand without combustion.
MPMC POWERTECH CORP. manufactures stationary storage as its HBD-A Series, documented at 125 kW to 1,125 kW rated AC power and 261 kWh to 2,170 kWh capacity, with a 5,015 kWh DC-coupled variant.

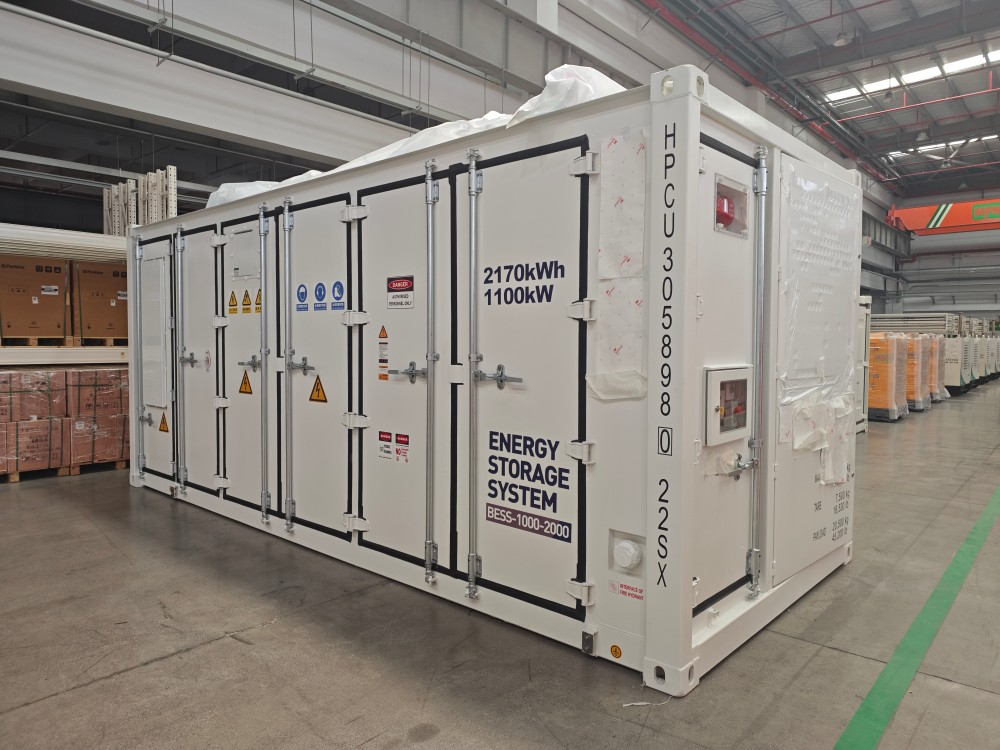

MPMC HBD-A Series, HBD-1000-2000. 1,125 kW rated AC power, 2,170 kWh capacity, liquid cooling.Three sources contribute to a data centre’s operational emissions, and storage addresses them unevenly.
| Source | Contribution | What storage changes |
|---|---|---|
|
Purchased electricity |
The largest share at most facilities |
Shifts consumption towards lower-carbon periods and raises renewable self-consumption |
|
Standby generator testing and run hours |
Small in energy terms but highly visible in reporting |
Can cover short disturbances and demand peaks that would otherwise start the set |
|
Refrigerant and other direct sources |
Facility-specific |
Not affected |
The practical consequence is that a battery specified purely as a backup asset will not move the reported figure much. The mechanisms that do are renewable buffering and peak management, and both depend on the tariff and generation profile rather than on the outage profile.
Where a facility currently starts a generator set to trim billed demand peaks, the battery can perform the same function with no local emissions. This is usually the easiest mechanism to quantify, because the tariff supplies the arithmetic.
Solar output and facility demand rarely coincide. Storing midday surplus for later use raises the proportion of on-site generation consumed rather than exported or curtailed. The value depends on the size of the mismatch.
Where the set currently starts for short disturbances, the battery can cover those events instead. The saving is proportional to how often they occur, which is a site statistic rather than a general figure.
Any emissions claim should be built from the facility’s own interval data. A generic reduction percentage carried across from another site is not defensible in reporting.
AI training clusters produce step changes as jobs start, checkpoint and complete. Two storage characteristics matter more as a result.
Response speed. Battery systems respond in milliseconds, which allows them to absorb step changes that would otherwise appear at the metre as demand peaks.
Power-to-energy ratio. A step-heavy profile needs power. A long evening plateau needs energy. MPMC lists the HBD-250-1000 and HBD-500-1000 at the same 1,045 kWh capacity but at 250 kW and 500 kW respectively, which makes the trade explicit.
| Model | Rated AC power | Battery capacity | Cycle life at 90% DOD | Cooling |
|---|---|---|---|---|
|
HBD-125-260 |
125 kW |
261 kWh |
8,000 cycles |
Liquid |
|
HBD-210-410 |
210 kW |
418 kWh |
8,000 cycles |
Liquid |
|
HBD-250-1000 |
250 kW |
1,045 kWh |
8,000 cycles |
Liquid |
|
HBD-500-1000 |
500 kW |
1,045 kWh |
8,000 cycles |
Liquid |
|
HBD-1000-2000 |
1,125 kW |
2,170 kWh |
8,000 cycles |
Liquid |
|
HBD-DC 5000 |
DC-coupled, 0.5P |
5,015 kWh |
8,000 cycles |
Liquid |
Common characteristics listed across the series are LFP 314 Ah cells, liquid cooling on all models, IP54 system protection, IP67 battery pack protection, an operating range of −20°C to +55°C with derating above 45°C, aerosol fire suppression to CE, and a maximum altitude of 3,000 m with derating above 2,000 m.
Supported modes are listed as PQ, VF, VSG, black start, grid-forming, and EMS-driven peak shaving and load balancing.

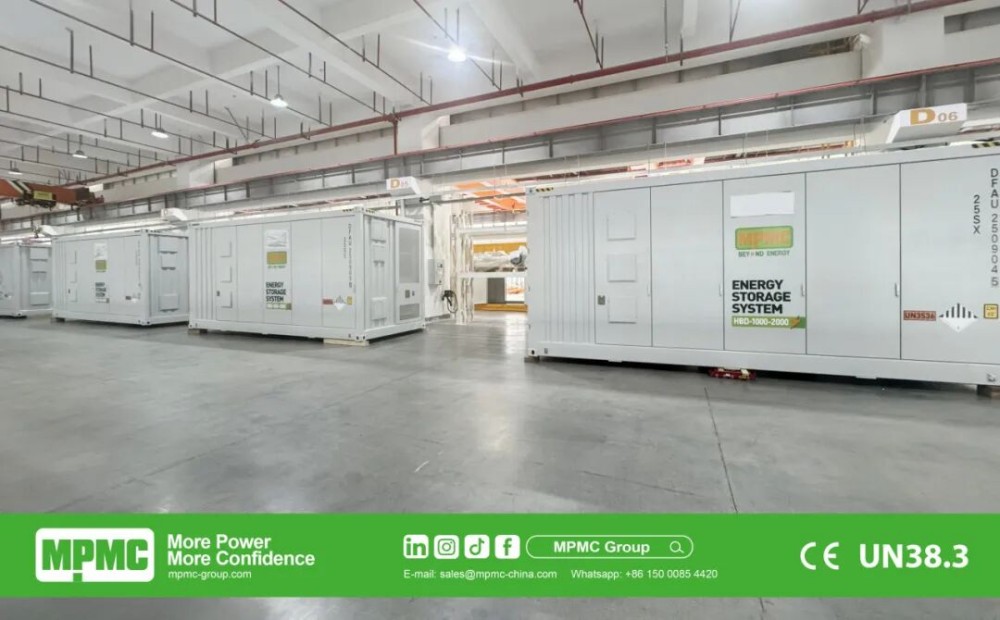

MPMC HBD-A Series containerised battery energy storage systems.Low-carbon operation is as much a measurement problem as an equipment problem. A system that cannot produce auditable energy data will not support a reported figure.
MPMC’s published control platform includes a self-developed EMS and SCADA with real-time remote monitoring, alarm and fault management, automated report generation, 10-year data retention, an SL3-level cybersecurity framework and Starlink satellite communication as a backup link.
The ten-year retention figure is the relevant one for reporting continuity, since emissions accounting typically requires historical comparison rather than current-year data alone.
| Project | Scale | Configuration and function |
|---|---|---|
|
Green power plant, Hungary |
8 MWh |
HBD-500-1000 × 2 and HBD-1000-2000 × 3; frequency regulation, peak shaving, load balancing |
|
Grid-connected FM storage plant, Netherlands |
8 MWh |
HBD-A Series, 2 MWh × 4 units |
|
BESS system delivered to Europe |
8 MWh |
HBD-1000-2000A, dual-PCS parallel architecture, 45 CATL 1P52S battery packs, 2,097 kWh per unit across 5 units, 20HQ container, C4 coating, IP55, aerogel insulation |
|
Peak-shaving storage, Netherlands |
3.2 MWh |
HBD-A and HBD-R at 125 kW / 260 kWh and 100 kW / 200 kWh |
These are grid-service and industrial deployments rather than data centre installations. They indicate the scale and configuration supplied and should be read as capability evidence rather than as sector references.
A reported reduction has to be traceable to data the facility holds. Each of the three mechanisms needs different inputs, and two further datasets underpin all of them.
| Mechanism | Data required | Who holds it |
|---|---|---|
|
Peak management without combustion |
Generator run hours attributable to demand trimming, and the tariff structure |
Facility records and the electricity contract |
|
Renewable self-consumption |
On-site generation profile and demand profile at matching intervals |
PV monitoring and interval metering |
|
Reduced generator run time |
Frequency and duration of grid disturbances over at least twelve months |
Facility outage log |
|
Grid carbon intensity by period |
Half-hourly or hourly intensity for the local grid |
Grid operator or supplier data |
|
Delivered and stored energy |
Metered charge and discharge records |
MPMC lists automated report generation and 10-year data retention within its EMS and SCADA |
The last row is the one that turns a design intention into an auditable figure, and ten years of retained data matters because emissions accounting usually requires historical comparison.
Alongside these, settle the engineering items: interval metering analysis before sizing, power and energy requirements stated separately, annual cycle count modelled against the 8,000-cycle rating at 90% depth of discharge, derated capacity at site ambient, whether grid-forming or seamless transition is required, integration with existing PV inverters and building management systems, and the local permitting pathway. MPMC’s published HBD-A warranty is 5 years or 2.2 MWh/kWh for the system and 10 years or 4.3 MWh/kWh for battery performance, with validity conditional on maintaining battery box temperature at 0°C to 25°C and humidity at or below 80%.
Three statements appear regularly in low-carbon data centre material and none of them survives examination.
That storage makes purchased electricity carbon-free. It shifts when energy is drawn. Whether that lowers emissions depends on how local grid intensity varies through the day.
That a battery replaces the standby generator. At current energy densities, covering the longest credible outage is rarely economic at this scale.
That a percentage reduction achieved elsewhere transfers. Outage frequency, tariff structure and generation profile are site variables, and a figure carried across from another facility is an assertion rather than a measurement.
The claim worth making is the one built from the facility’s own interval data, and it is usually smaller and considerably more durable.
