SPK-120 Mobile Solar Container
The SPK-120 Mobile Solar Container represents the pinnacle of MPMC’s mobile energy engineering, delivering a massive 115.92 kWp of renewable energy from a single 20HQ container. Utilizing ultra-high-power 630W Bifacial panels, this system captures maximum solar energy from both sides, ensuring high performance for utility-scale applications.
Designed for large-scale energy demands, the SPK-120 expands to a staggering 114 meters in length. With a powerful 80kWe AC output, this 15-ton robust system is a modular building block for multi-megawatt off-grid power plants, providing immediate grid-level power in the most remote and demanding locations on Earth.
Movable
Flexible and easy to move
Plug & play
Modular system , easy to install
Low cost
Reduction of diesel consumption
Expandable
The system can be expanded as required
Renewable
Green and environmentally friendly energy
-
Top View
-
Front View
-
Side View
Product Introduction
The SPK-120 Mega Mobile Solar Container delivers a massive 115.92 kWp of clean energy from a single 20HQ container. Utilizing 630W Bifacial panels, this utility-scale system expands to a staggering 114 meters in length, providing immediate grid-level power in remote locations.
Core Advantages
Utility-Scale 115kWp
The largest in the SPK series, providing 115.92kWp capacity to power entire rural communities or large industrial sites.
630W Bifacial Efficiency
Equipped with dual-sided panels that capture reflected ground light, significantly increasing kWh production per square meter.
Football-Field Scale
Expands to an incredible 114,000 mm (114 meters), creating a massive solar power harvesting corridor.
Industrial AC Output
Delivers a robust 80kWe AC output, designed as a modular building block for multi-megawatt off-grid power plants.
Application Scenarios
- Utility Rural Electrification: Rapid electricity for remote villages without grid access.
- Mega Mining Operations: Industrial-grade power for heavy processing and large-scale camps.
- Major Infrastructure: Reliable energy for dam, highway, and "Belt and Road" projects.
- Strategic Support: Stable energy hubs for field hospitals or emergency headquarters.

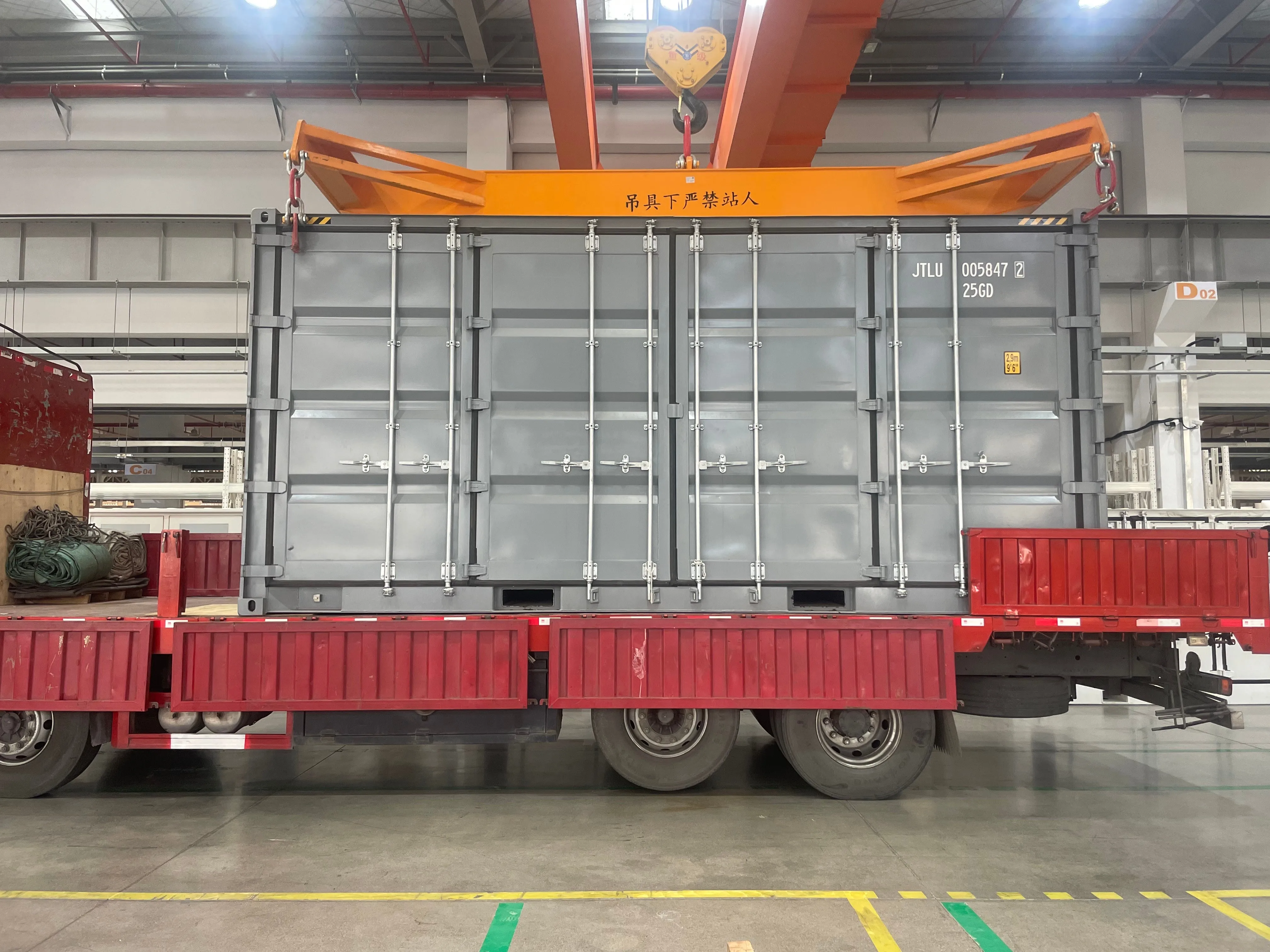

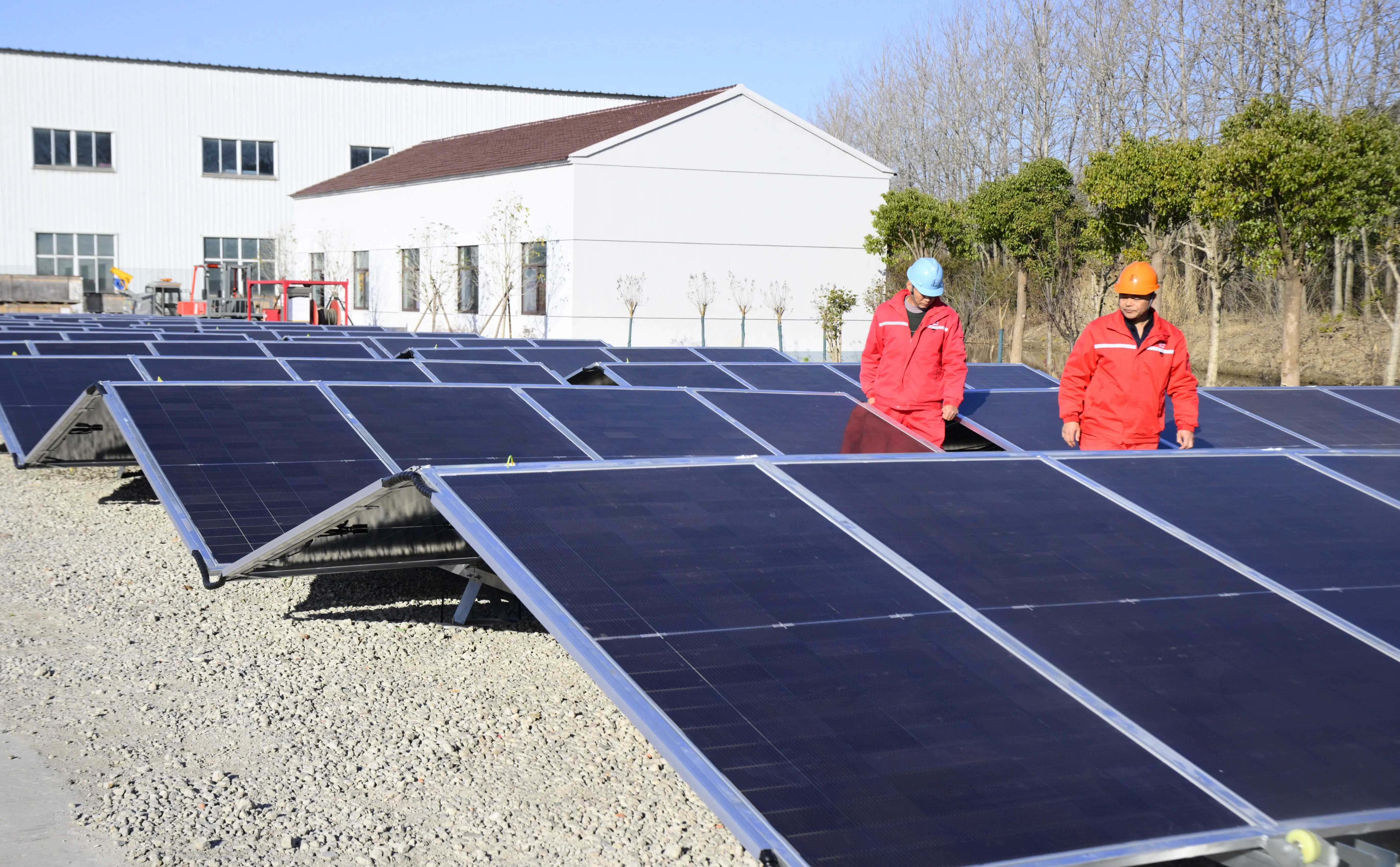

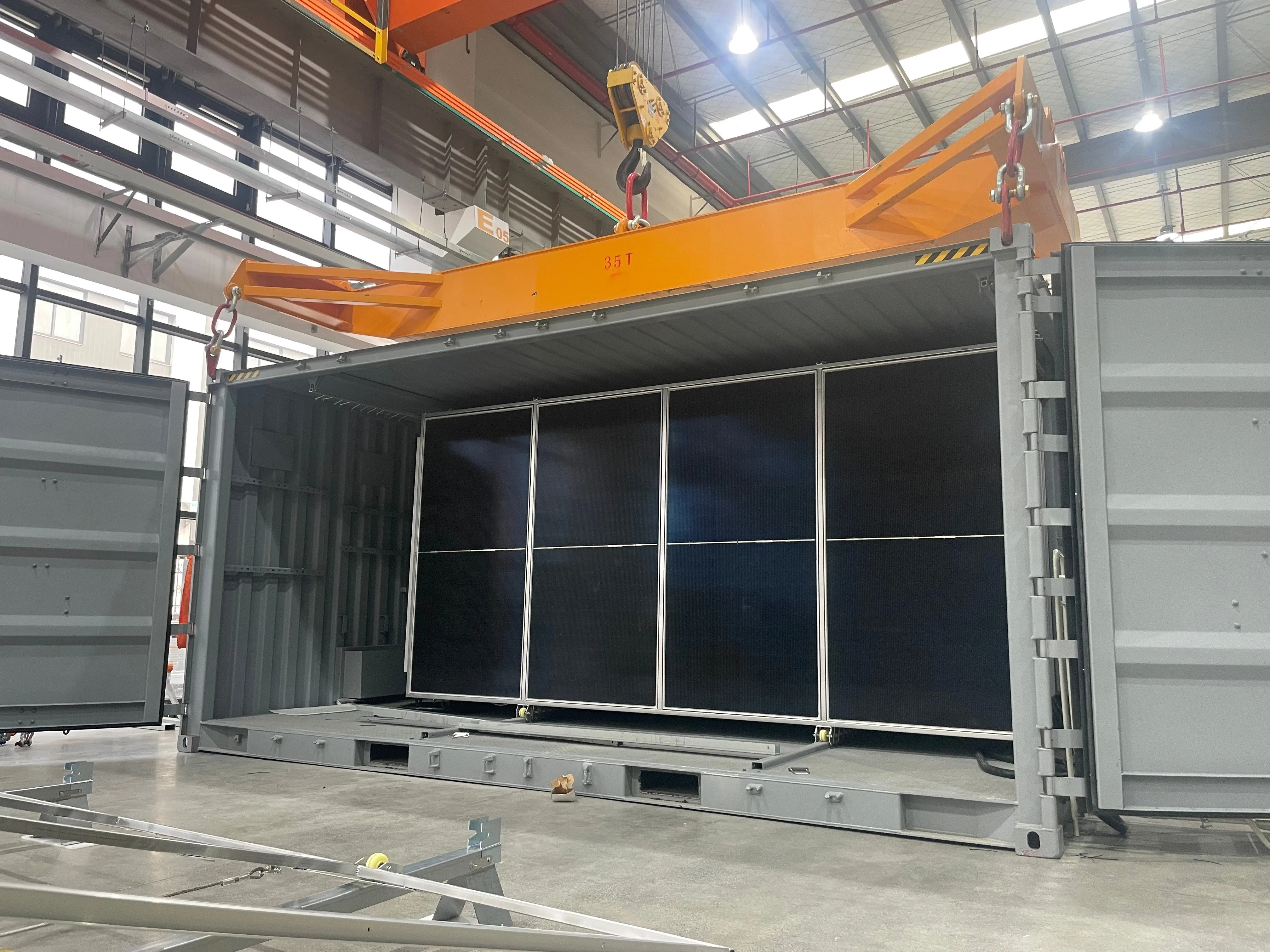

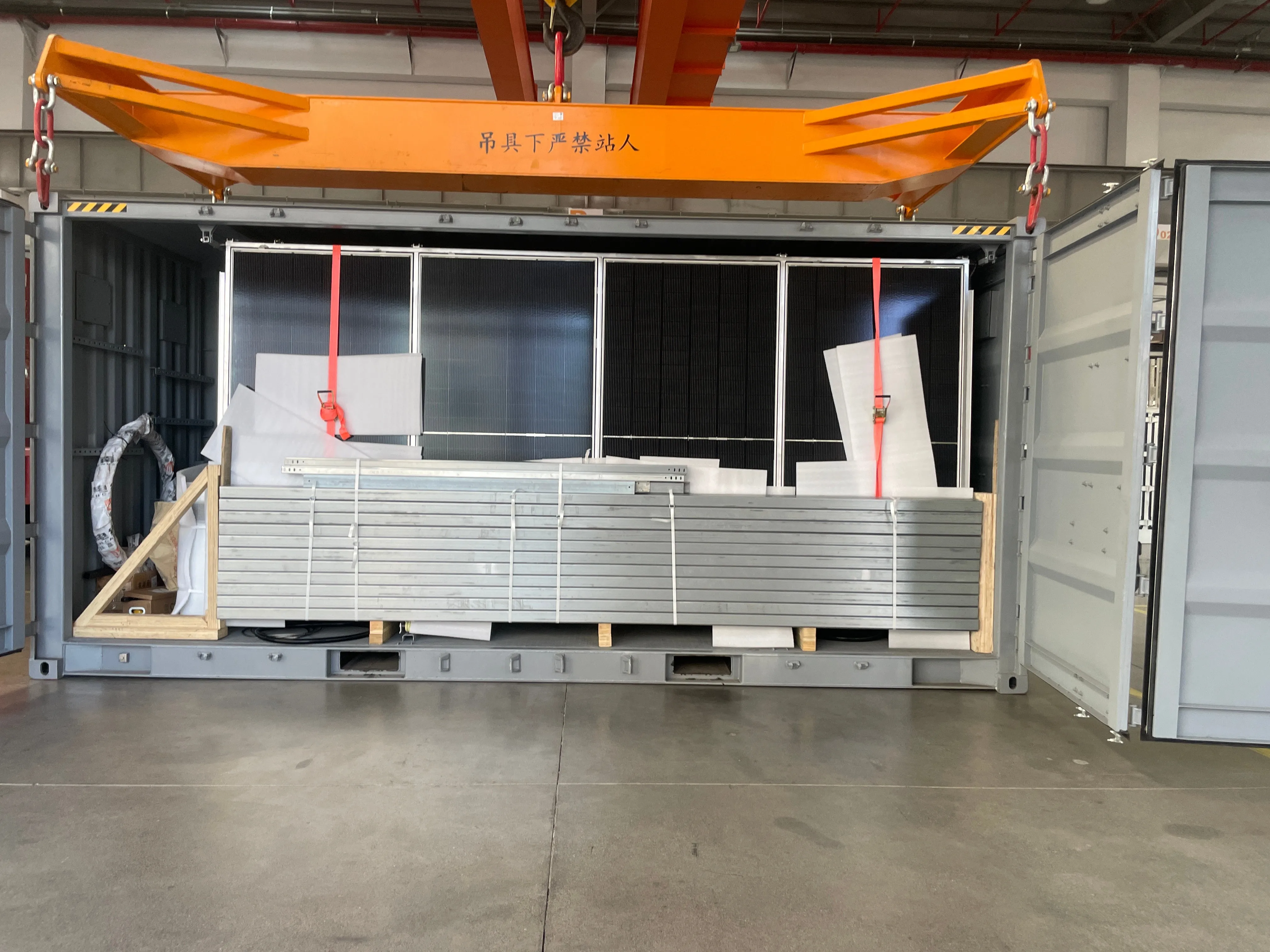

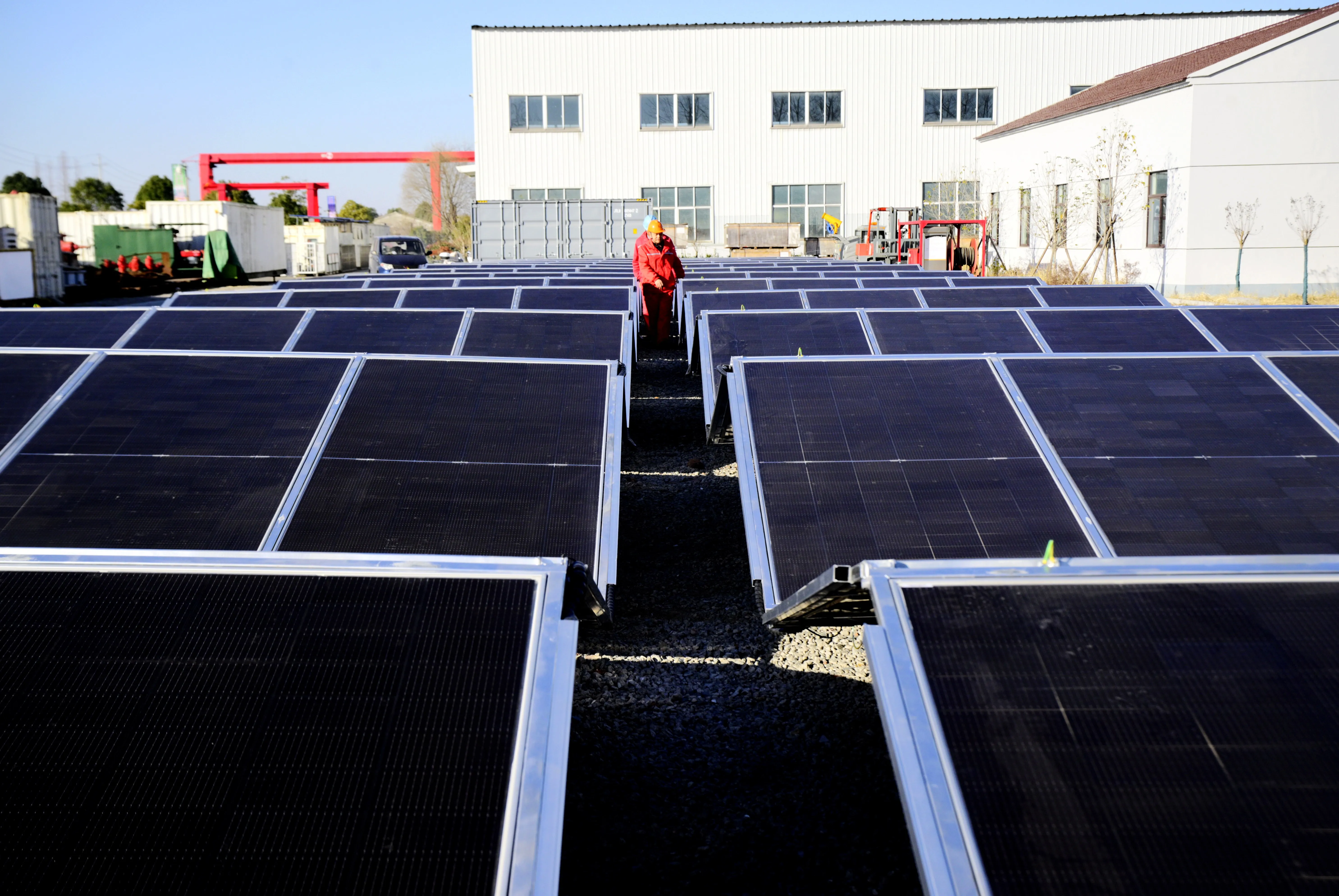

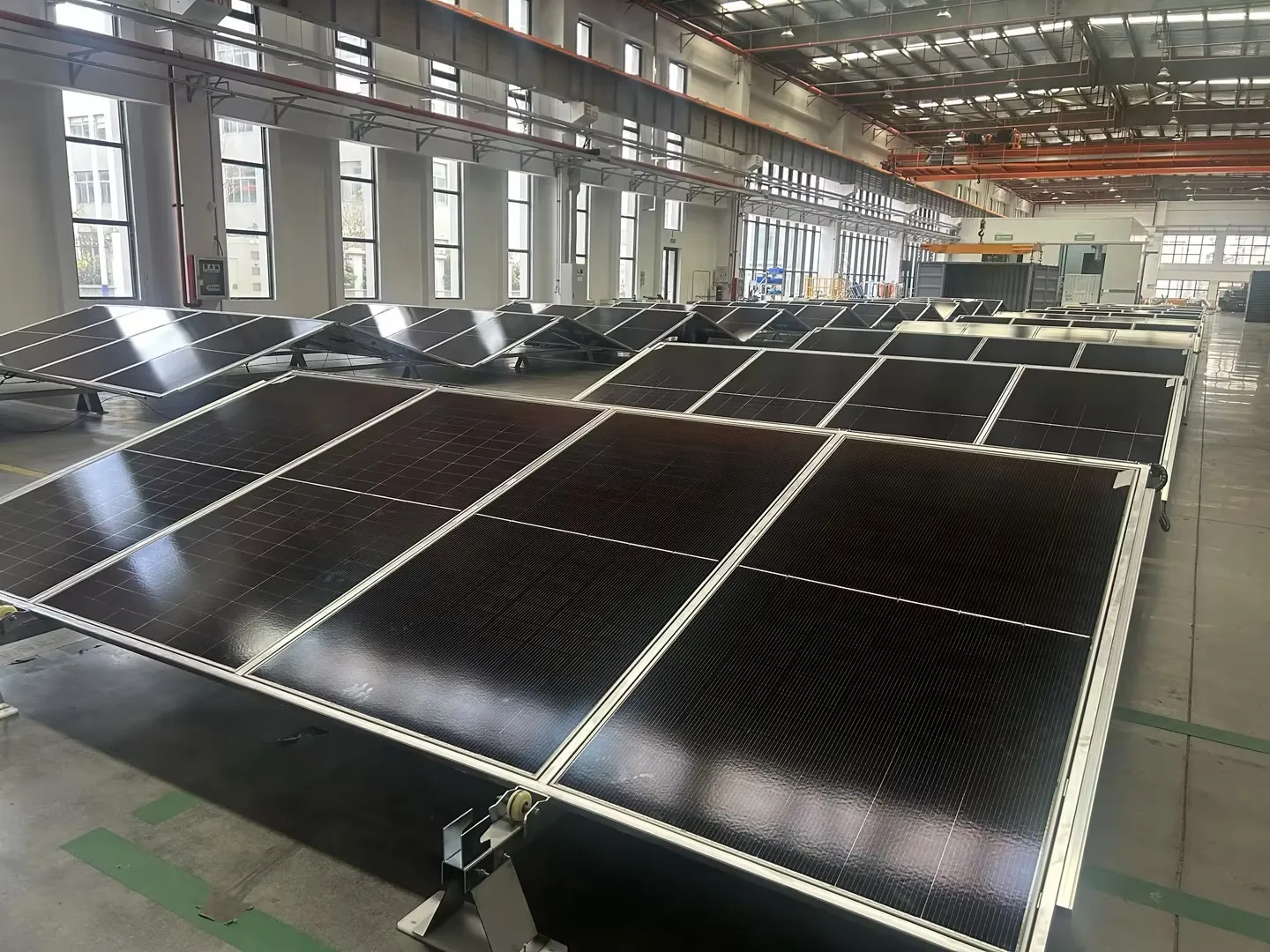

Photo Showcase
Technical Specifications
| MEGA SOLUTION: SPK-120 | |
|---|---|
| Total Array Power | 115.92kWp |
| Panel Power & Type | 630Wp / Bifacial |
| PV String Voltage (Voc) | 1193 / 415 / 207Vdc |
| Panel Connection | 23S*8P / 8S*23P / 4S*46P |
| Expansion Method | Manually expanded & Ground installed |
| Recommended Inverter | 80kWe AC Output |
| Loading Size | 20HQ Container |
| Expanded Size (L*W*H) | 114000 * 4700 * 900mm |
| Loading Qty (40HC) | 2 Units |
| Net Weight | 15000kg |
Remarks:
1.The MC4 connector with diodie is standard with solar panel. The PV inverter is option;
2.STC for solar panel：Light intensity≥1000 W/㎡，Temperature of the PV panel ≤25℃，Atmospheric quality≤1.5；
3.All data based on STC's data of the solar panel;
4.The forklift and lifting point is standard.
