SPK-240 Mobile Solar Container
The SPK-240 Mobile Solar Container is MPMC's most powerful mobile solar solution to date, delivering a massive 231.84 kWp of renewable energy from a single 40HQP container. Utilizing ultra-high-efficiency 630W Bifacial solar panels, this system leverages dual-sided light capture to provide unparalleled energy density for large-scale industrial and utility applications.
Designed for peak energy independence, the SPK-240 expands to a colossal 114 meters in length and 11 meters in width, covering over 1,250 square meters of solar harvesting area. With a staggering 180kWe AC output, this 30-ton heavy-duty infrastructure serves as a primary power hub for multi-megawatt off-grid plants, mining sites, and grid-scale emergency backup.
.webp?x-oss-process=image/resize,w_100/quality,q_100)
Movable
Flexible and easy to move
Plug & play
Modular system , easy to install
Low cost
Reduction of diesel consumption
Expandable
The system can be expanded as required
Renewable
Green and environmentally friendly energy
-
Top View
-
Front View
-
Side View
Product Introduction
The SPK-240 is MPMC's ultimate flagship mobile solar solution, delivering a massive 231.84 kWp from a single 40HQP container. Featuring 630W Bifacial panels and expanding to a colossal 114m x 11m array, it provides utility-scale power for the most demanding off-grid environments.
Core Advantages
Ultimate 231kWp Capacity
The highest power density in the SPK series, providing 231.84kWp to act as a primary power hub for entire industrial clusters.
Mega 114m Harvesting Array
Expands to 114,000mm in length and 11,000mm in width, covering over 1,250m² for maximum solar collection.
630W Bifacial Technology
Dual-sided panels capture albedo light from the ground, ensuring maximum kWh production and high-efficiency yield.
180kWe Utility AC Output
Equipped with a robust 180kWe AC output, capable of powering heavy-duty mining and grid-level infrastructure.
Application Scenarios

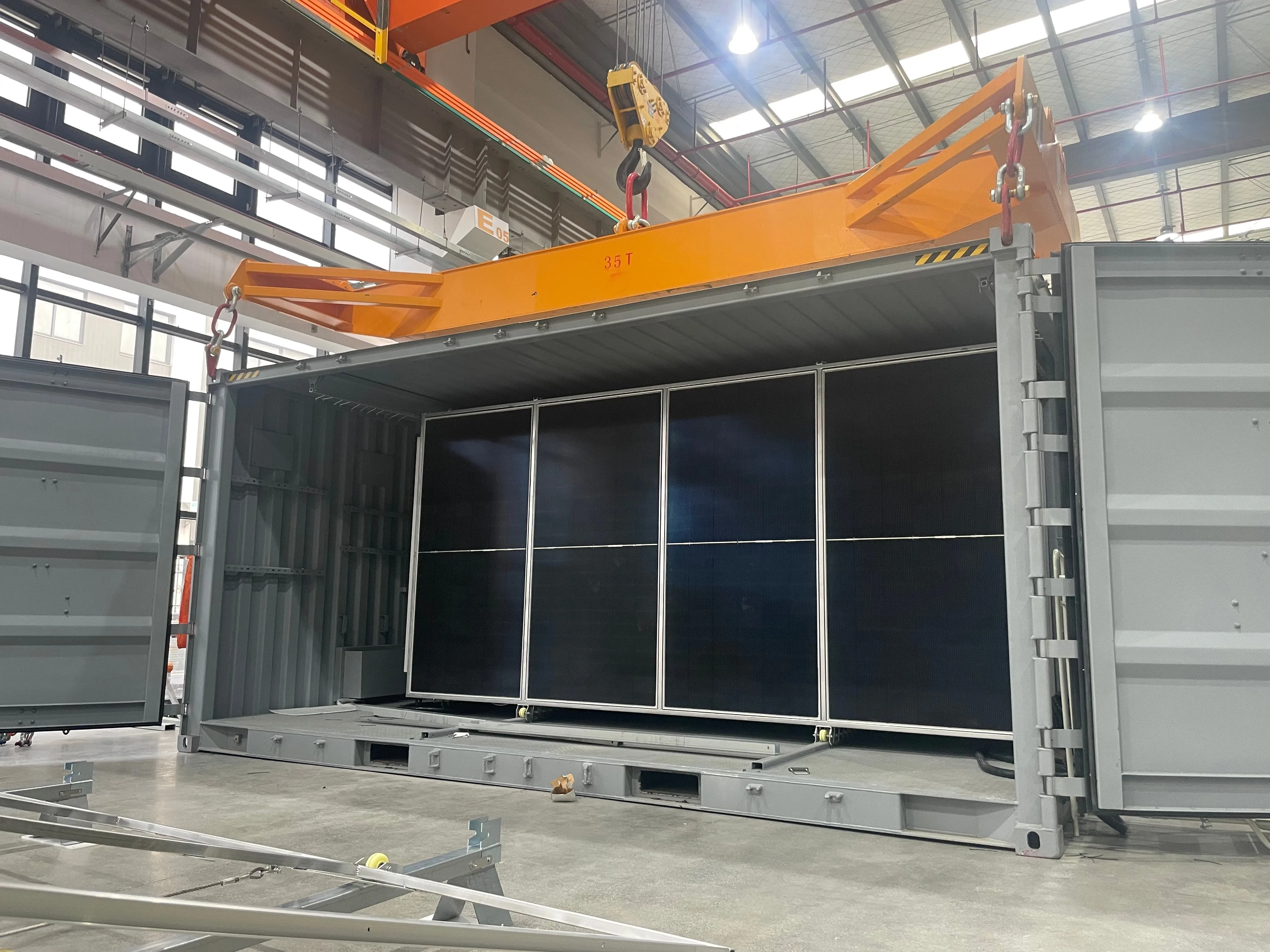

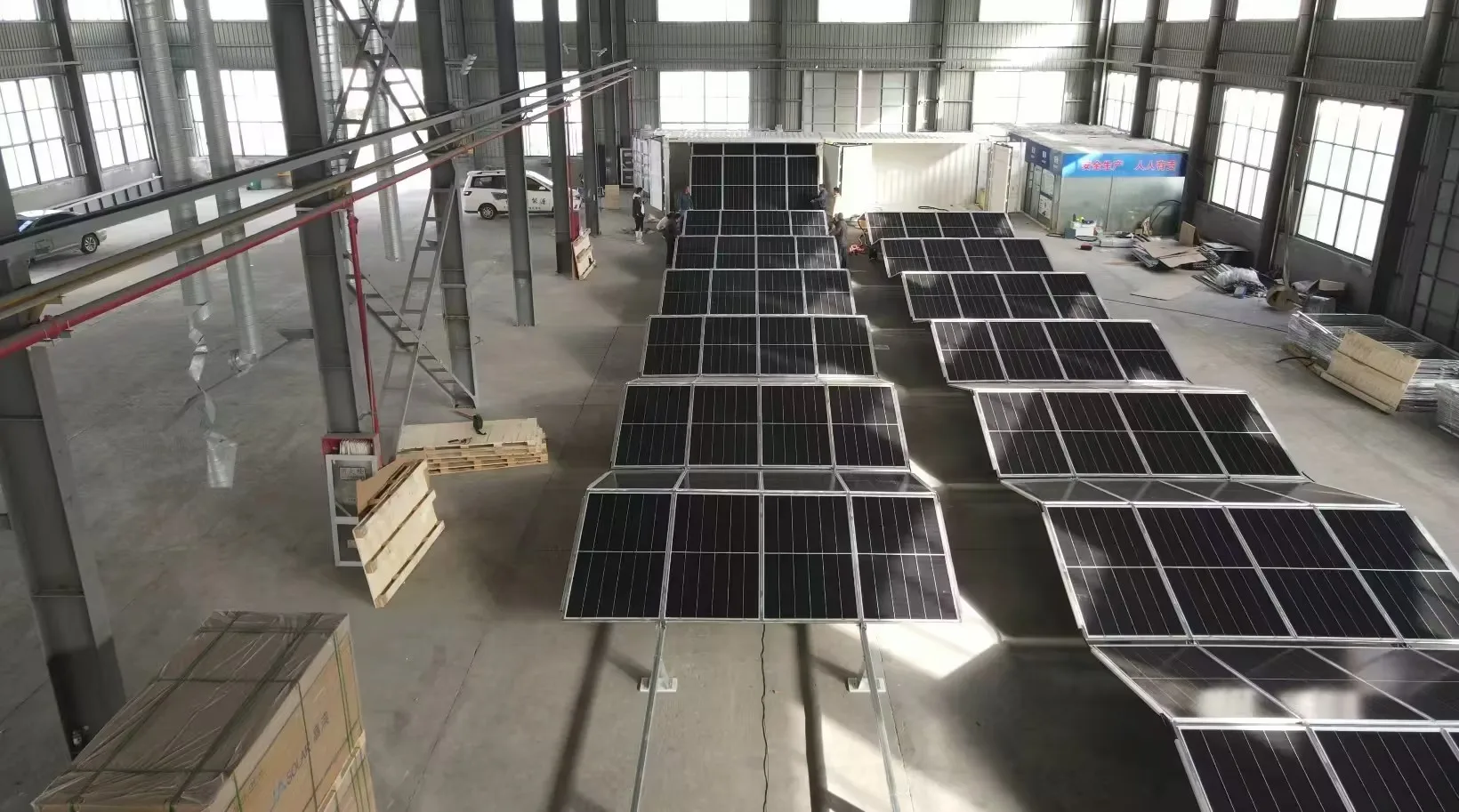

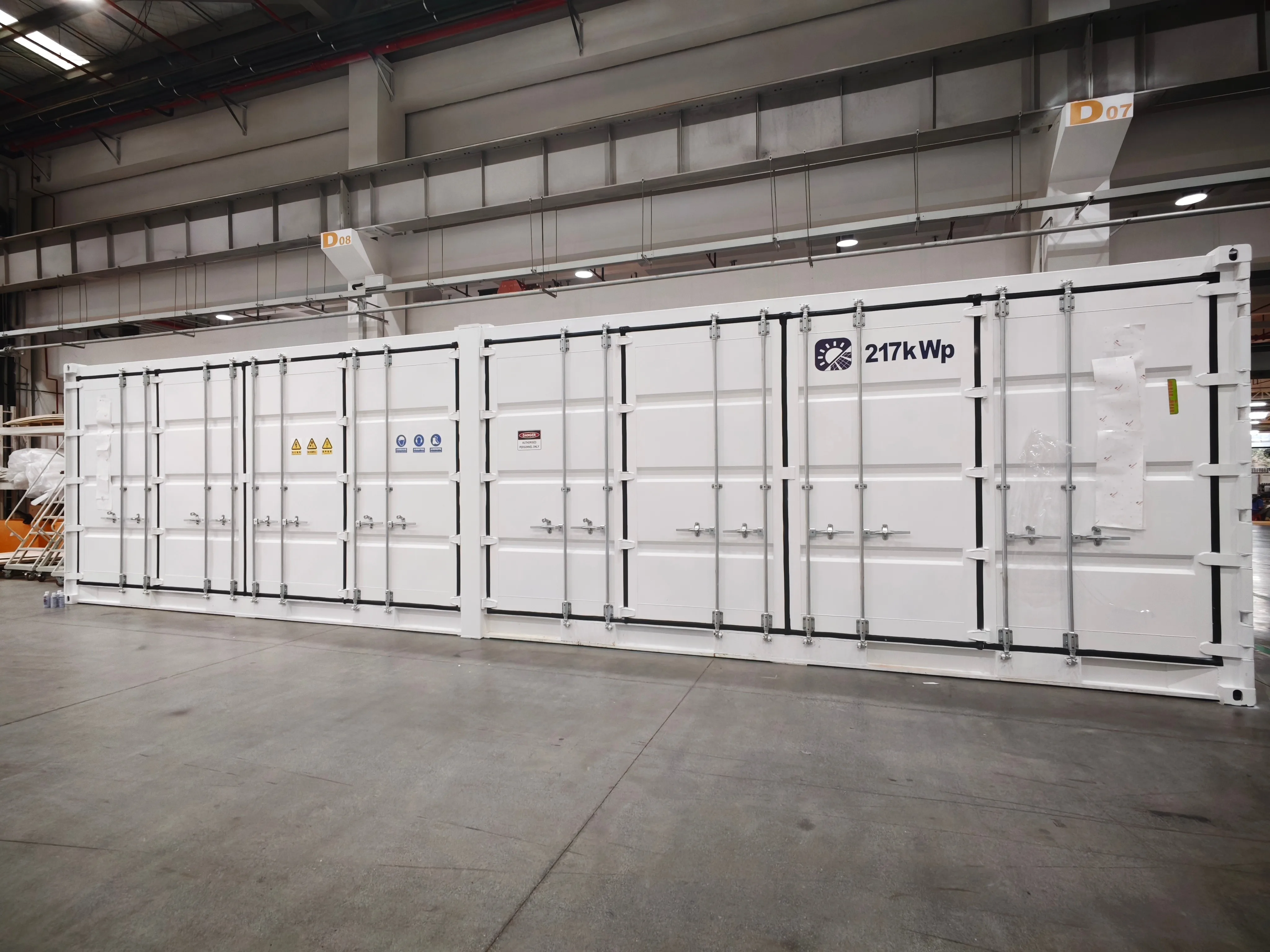

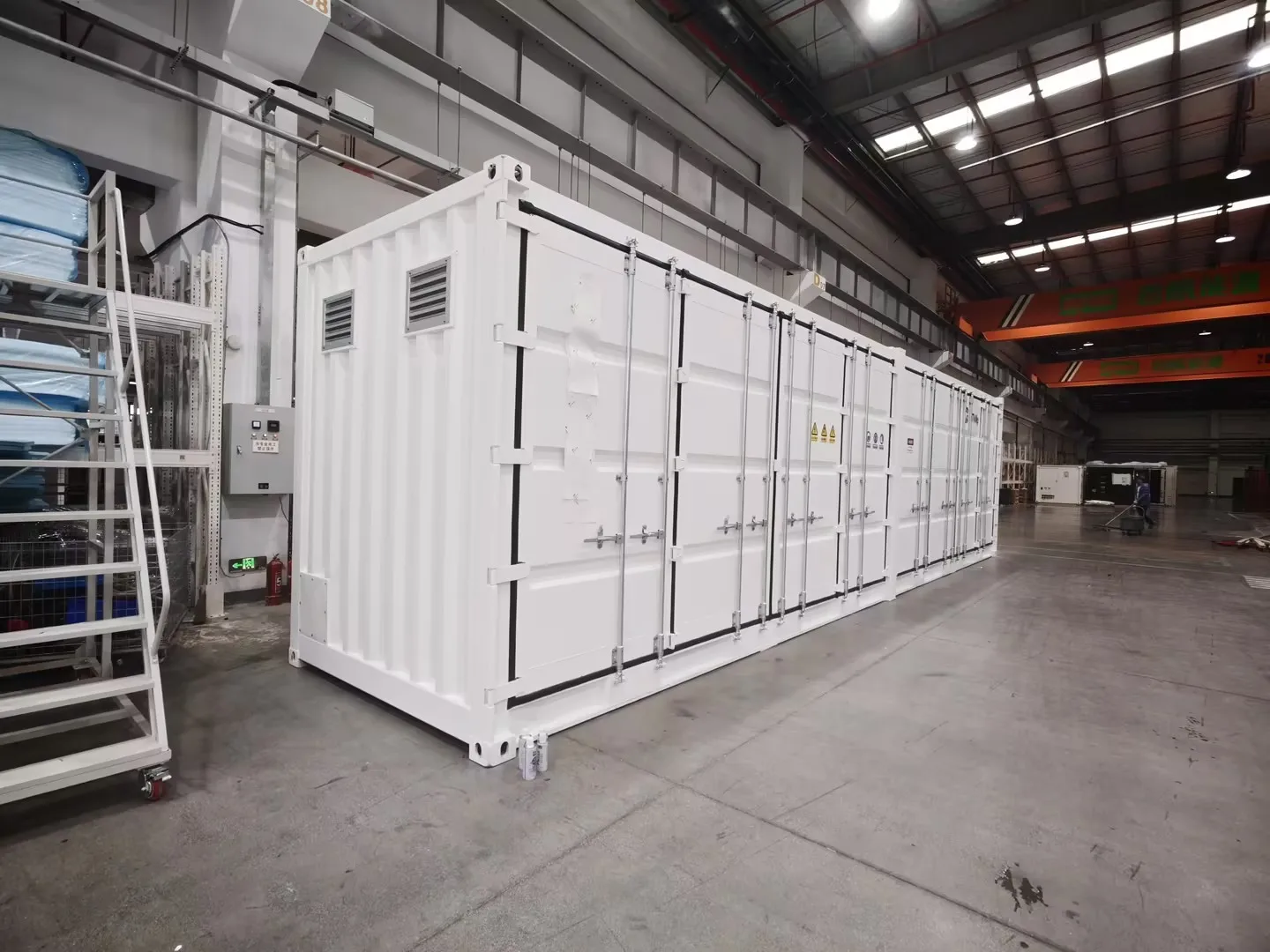

Photo Showcase
Technical Specifications
| ULTIMATE FLAGSHIP: SPK-240 | |
|---|---|
| Total Array Power | 231.84kWp |
| Panel Power & Type | 630Wp / Bifacial (Dual-Side Generation) |
| PV String Voltage (Voc) | 1193 / 830 / 415Vdc |
| Panel Connection | 23S*16P / 16S*23P / 8S*46P (Flexible) |
| Expansion Method | Manually expanded & Ground installed |
| Recommended Inverter | 180kWe AC Output |
| Loading Size | 40HQP (12192 * 2438 * 3100 mm) |
| Expanded Size (L*W*H) | 114000 * 11000 * 900mm |
| Loading Qty (40HC) | 1 Unit (Full Container) |
| Net Weight | 30000kg |
Remarks:
1.The MC4 connector with diodie is standard with solar panel. The PV inverter is option;
2.STC for solar panel：Light intensity≥1000 W/㎡，Temperature of the PV panel ≤25℃，Atmospheric quality≤1.5；
3.All data based on STC's data of the solar panel;
4.The forklift and lifting point is standard.
