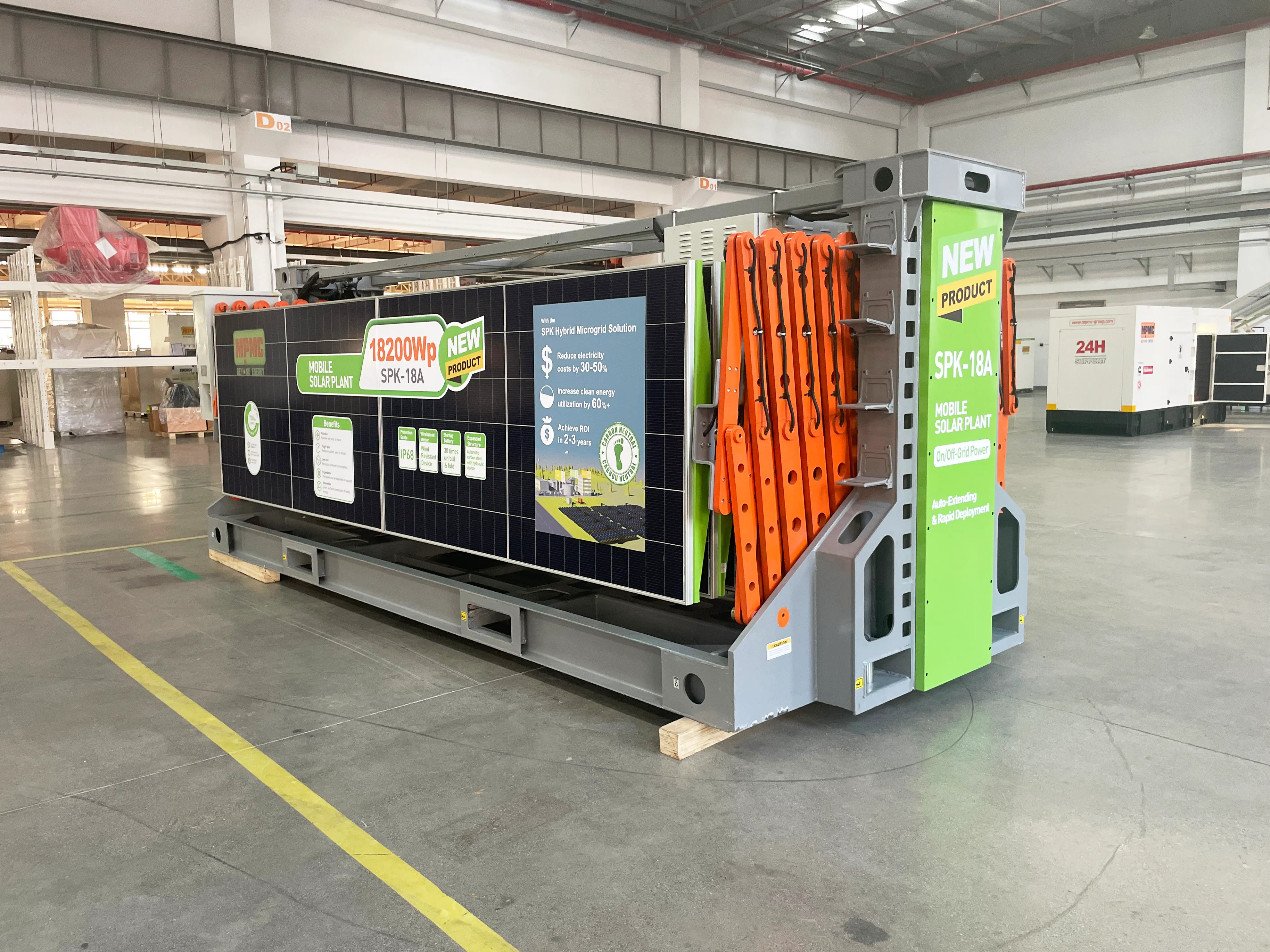

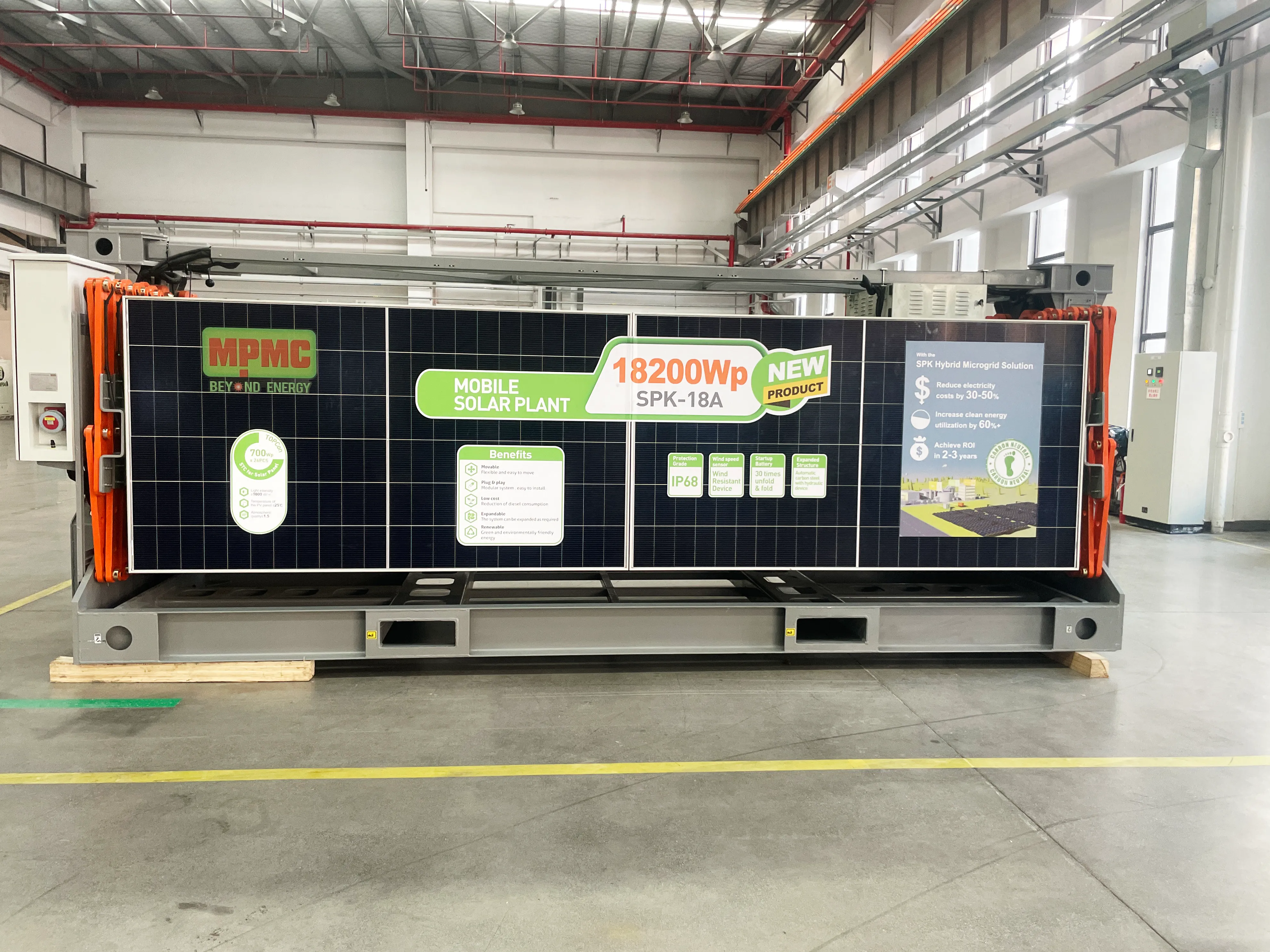

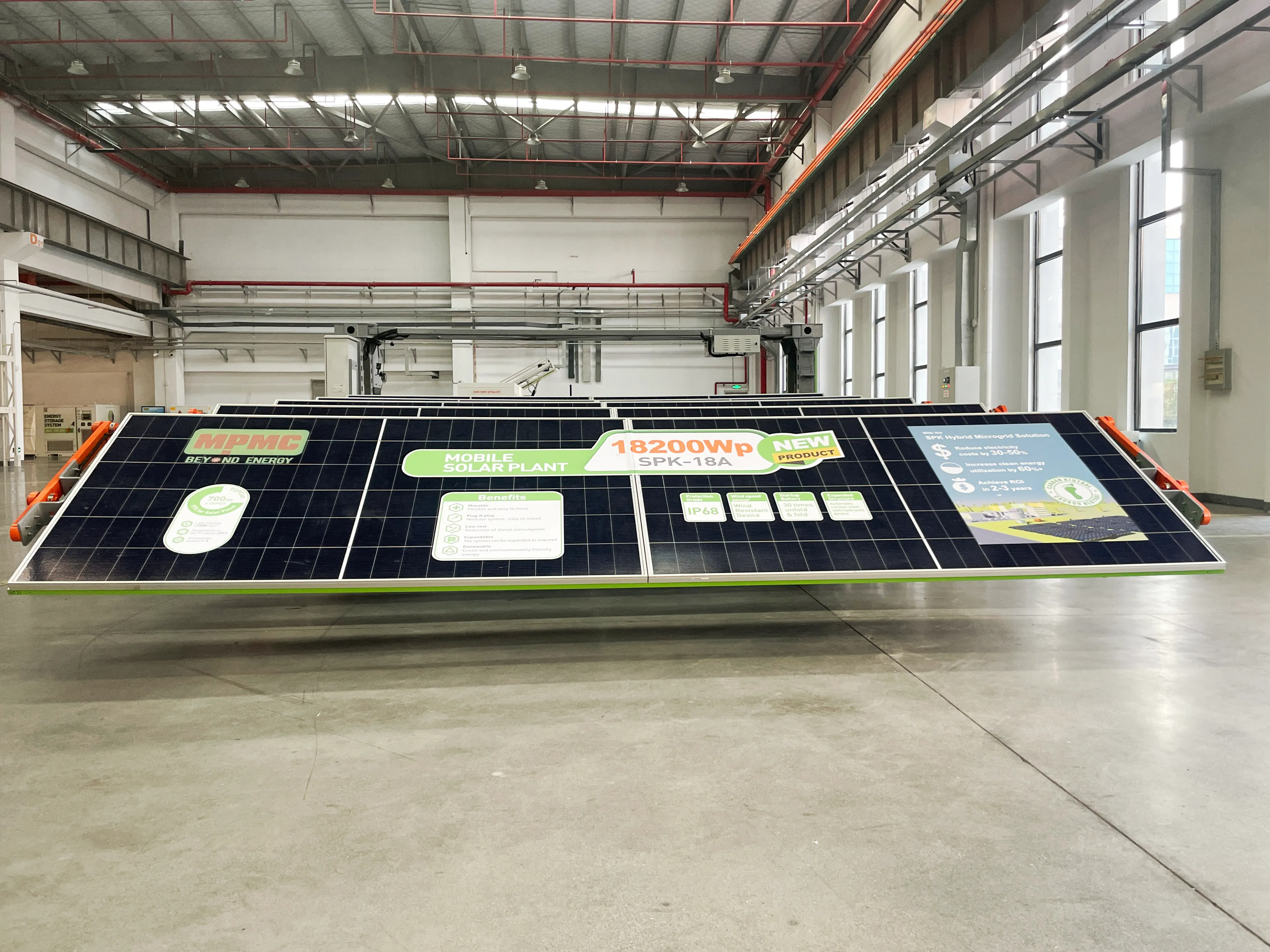

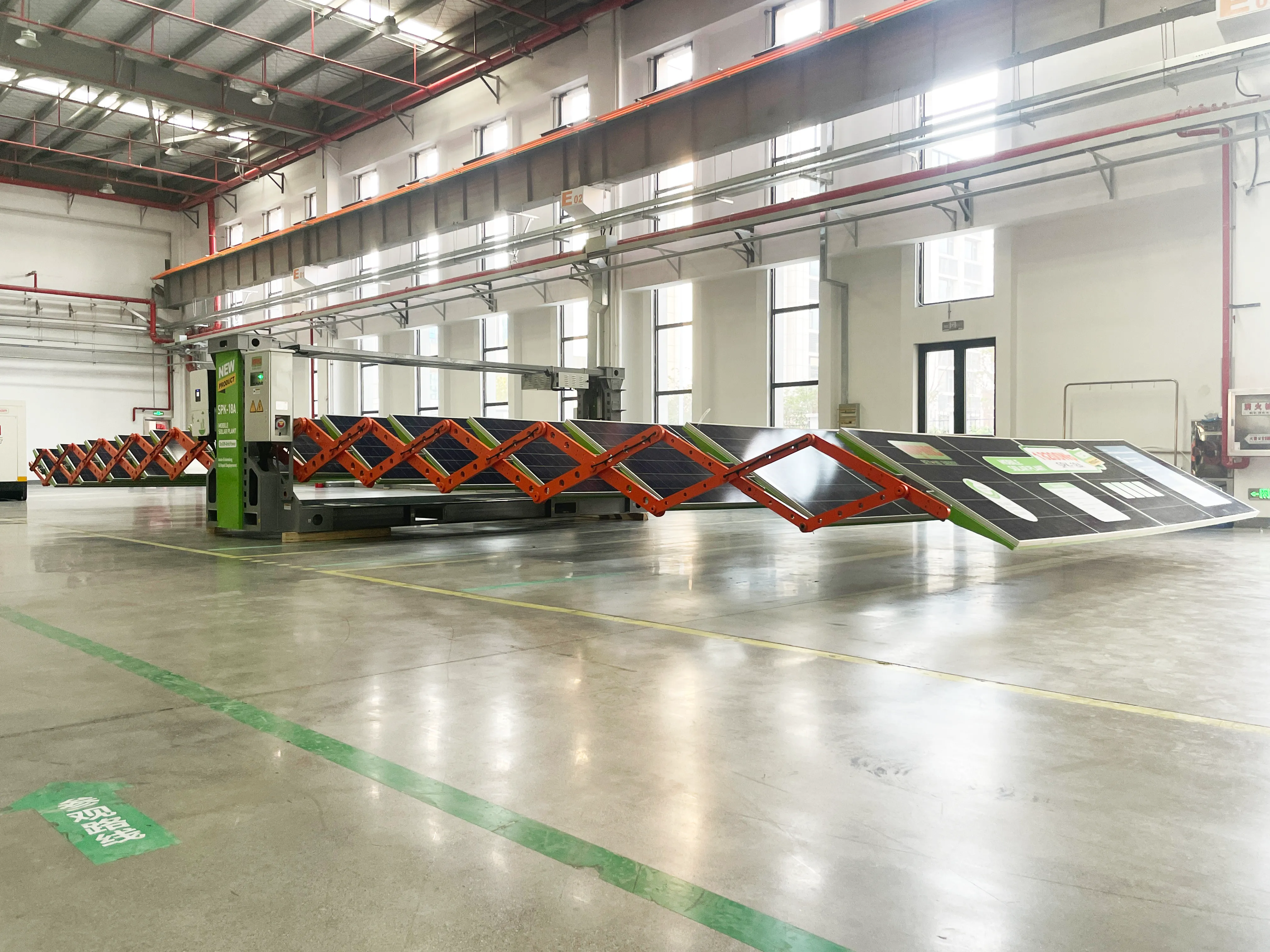

SPK Mobile Solar Array

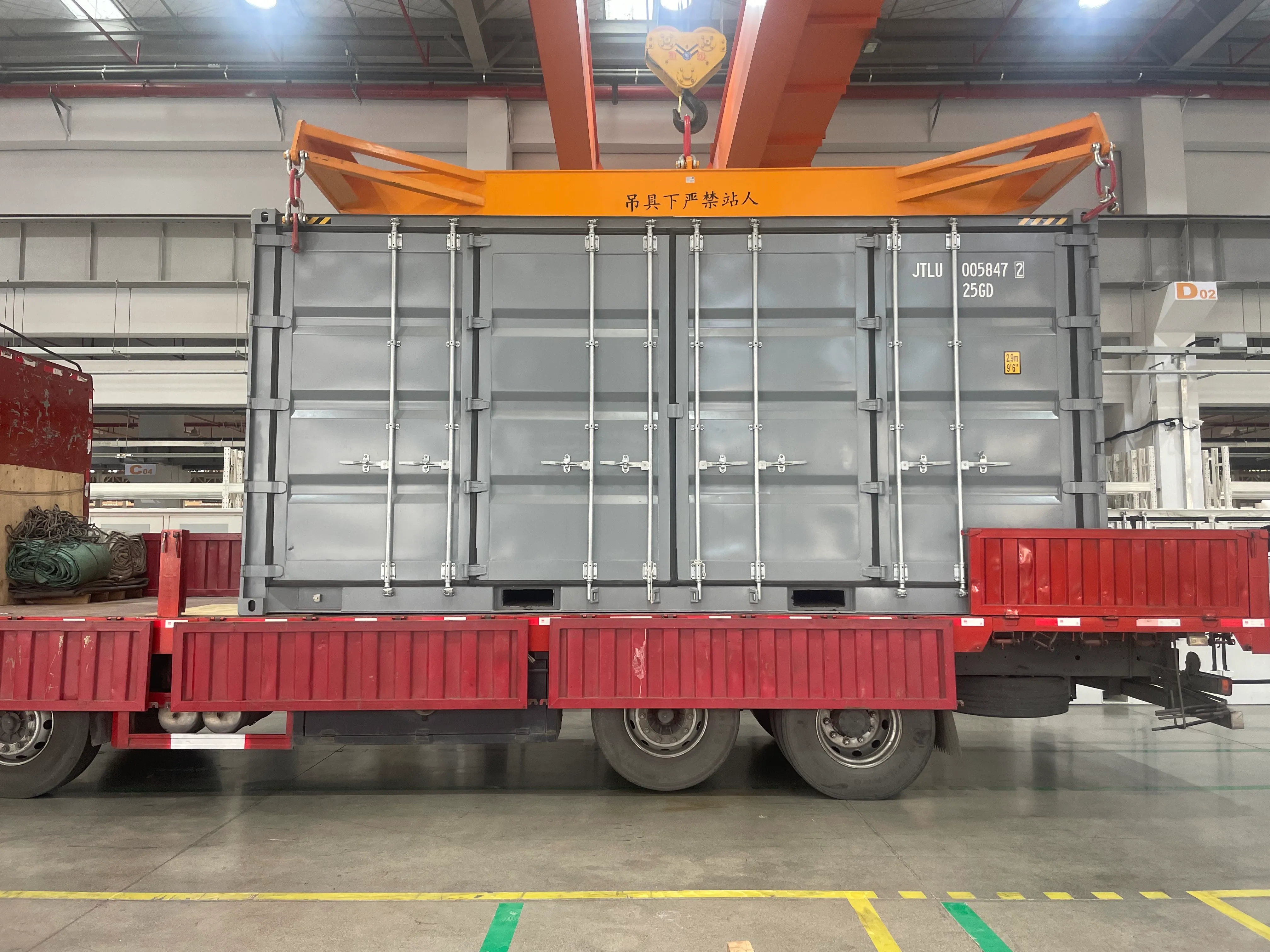

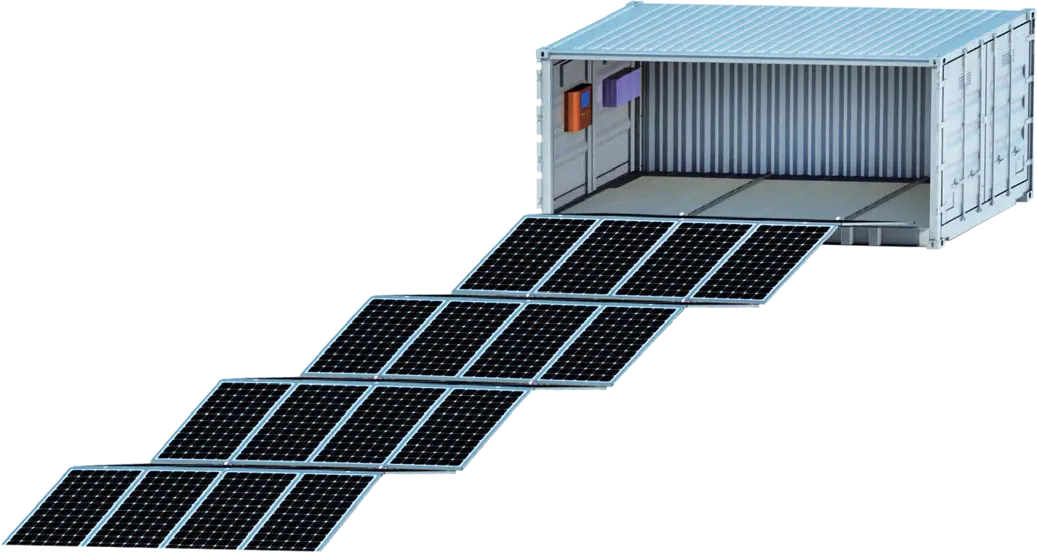

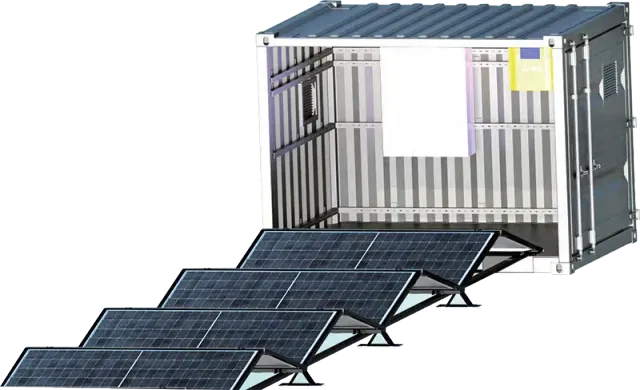

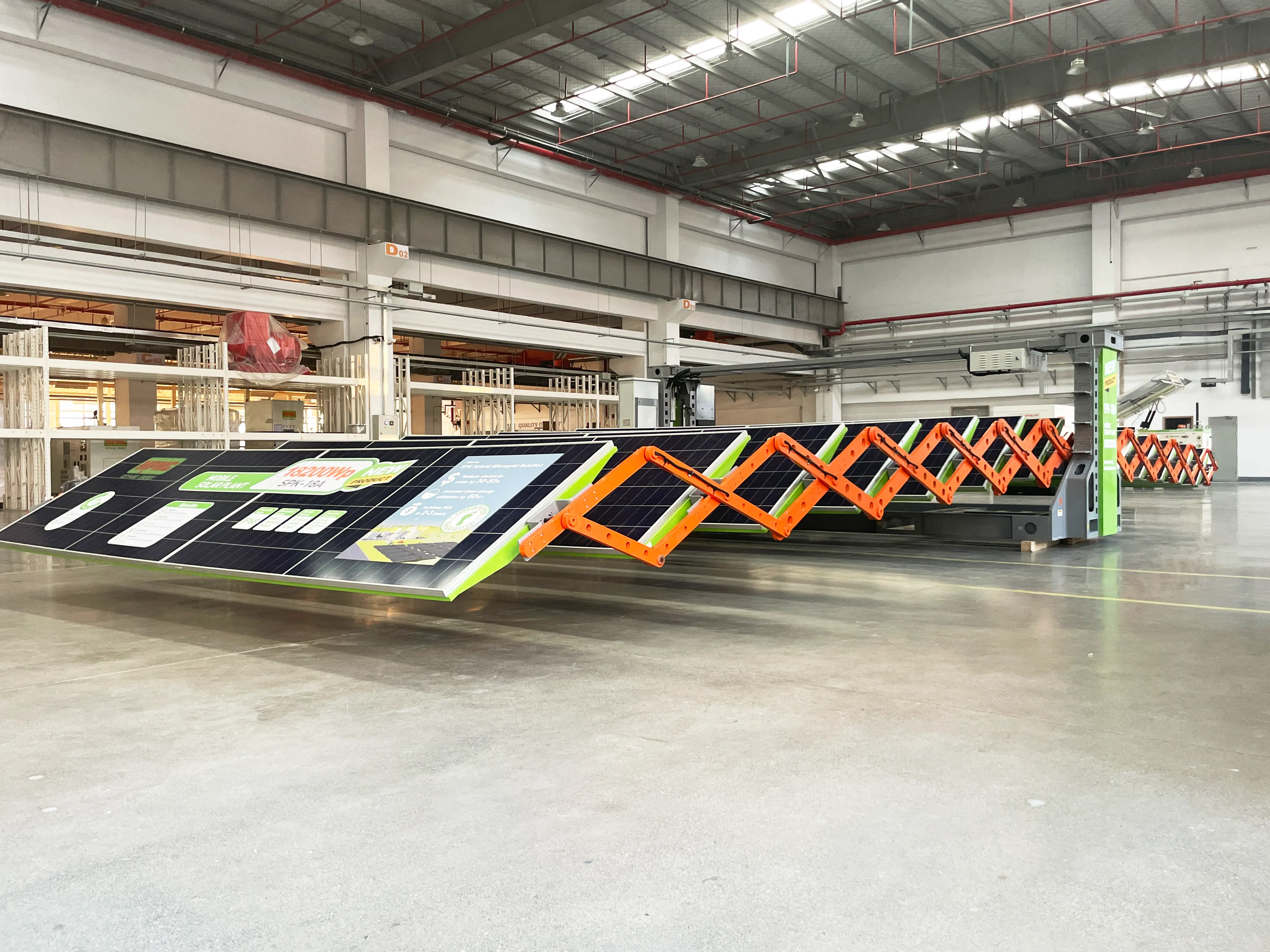

SPK® Solar power container uses customized containers that meet maritime standards as carriers, and is equipped with foldable frames,rail and rack systems, inverters, and other equipment inside; it has the advantages of modularity, mobility, rapid deployment, simple maintenance, and is suitable for use in areas with electricity shortages and inconvenient electricity generation after wars and disasters, remote areas, islands, oil and gas field exploitation areas, Belt and Road infrastructure areas, etc.
.jpg)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
SPK® Solar power container uses customized containers that meet maritime standards as carriers, and is equipped with foldable frames,rail and rack systems, inverters, and other equipment inside; it has the advantages of modularity, mobility, rapid deployment, simple maintenance, and is suitable for use in areas with electricity shortages and inconvenient electricity generation after wars and disasters, remote areas, islands, oil and gas field exploitation areas, Belt and Road infrastructure areas, etc.
Movable
Flexible and easy to move
Plug & play
Modular system , easy to install
Low cost
Reduction of diesel consumption
Expandable
The system can be expanded as required
Renewable
Green and environmentally friendly energy
-
Top View
-
Front View
-
Side View
 MPMC Solar Array |
|||||||||||||||
| SPK-10 | SPK-18A | SPK-20 | SPK-100 | SPK-160 | |||||||||||
| Panel Power | Wp | 480 | 700 | 595 | 595 | 480 | |||||||||
| Panel Type | TOPCon | TOPCon | TOPCon | TOPCon | TOPCon | ||||||||||
| String Voltage(Voc) | Vdc | 897 | 299 | 129 | 652 | 101 | 894 | 106 | 842 | 579 | 421 | 940 | 684 | 342 | |
| String Qty. | 1 | 3 | 7 | 2 | 13 | 2 | 17 | 11 | 16 | 22 | 16 | 22 | 44 | ||
| Total Array Power | kWp | 10.08 | 18.2 | 20.23 | 104.7 | 169 | |||||||||
| Expansion Method | Manually expanded & Ground installed | Automatic expanded & Ground installed | Manually expanded & Ground installed | Manually expanded & Ground installed | Manually expanded & Ground installed | ||||||||||
| Layout |  |
 |
 |
 |
 |
||||||||||
| Loading | L*W*H(mm) | 2250*1150*1250 | 5824*2250*2120 | 2900*2260*2200 | 20HQ | 40HQ | |||||||||
| Loading Qty. | 20GP | 5 | 1 | 2 | N/A | N/A | |||||||||
| 40HC | 20 | 2 | 4 | 2 | 1 | ||||||||||
| Expand | L*W*H(mm) | 2150*24150*1250 | 5824*18000*2120 | 46000*2400*2200 | 104000*6000*2900 | 93000*12192*2900 | |||||||||
| Net.weight (kG) | 2500 | 7500 | 5000 | 15000 | 25000 | ||||||||||
Remarks:
1.The MC4 connector with diodie is standard with solar panel. The PV inverter is option;
2.STC for solar panel：Light intensity≥1000 W/㎡，Temperature of the PV panel ≤25℃，Atmospheric quality≤1.5；
3.All data based on STC's data of the solar panel;
4.The forklift and lifting point is standard.
