HBD-405kW-440kWh

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Design Standards

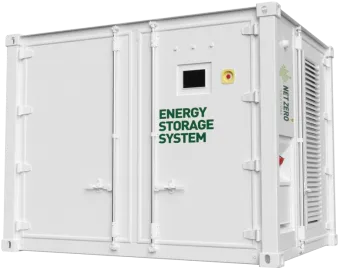

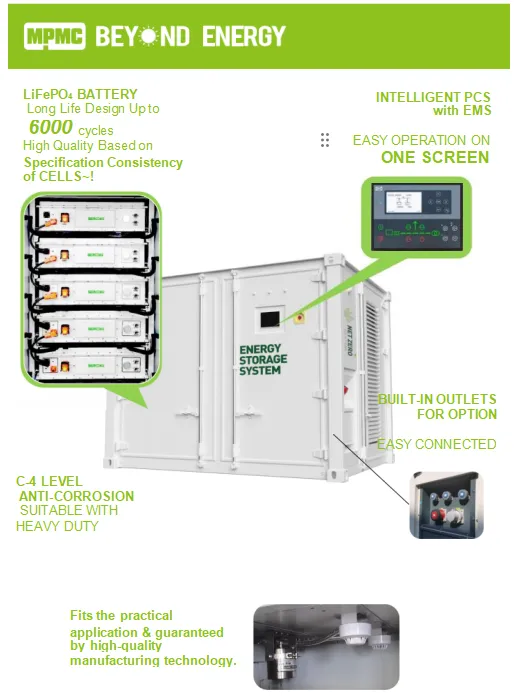

HBD® is a new range of secure integrated Battery Energy storage system. This mobile and modular solution includes batteries, PCS and control system; HVLC, fire protection and auxiliary components are also standard. The R series can be connected to external PV power station, AC generator and Grid power. HBD® is mainly developed for no emission and low noise, Reduce the dependence on grid, Improve power supply quality and Ensure the power consumption of emergency load.

Benefits

Integrated installation, convenient storage and transportation;

High return on investment and short payback period;

Simple operation and easy maintenance;

Power and Capacity can be expanded, meet different user needs;

Warranty

3 years after export from the factory or the Energy Throughput achieve 4590kWh per kWh which comes first;

Specification

General Information
Rated Output Power@25℃		405 kVA	200 kVA
Rated Power Factor		0.8 lagging(Changeable)
Rated Output Voltage		380V@50/60Hz,3ph.4W (400V, 415V & 480V available)	208V@50/60Hz,3ph.4W (220V available)
Rated Battery Storage Capacity		441 kWh
Output	Terminals	Copper Busbar
	Sockets	MAX. 7 Sockets available
Protection Class		IP55
Loading Dimension(WDH)		2350* 2250*2250mm
Net.Weight		7200 kg
Loading Capacity	20’GP	2 units
	40’ HC	5 units
Discharge Temperature Range		-40~55°C(> 50℃ derating)
Max Altitude		4000m(> 3000m derating)

Battery
Cell Type	LFP(LiFePO4) 44. 1 kWh 166.4 VDC 6000 Times( 1C@80%DOD) 832 VDC 5S2P
Pack Capacity
Pack Rated Voltage
Cyclic Life
Battery Voltage of Rack
Connection of Rack
PCS
Max. Current (AC)	615 A 445 kW (1 hour) 405kW 1 lagging~ 1 leading 3W+N+PE 98.9% N/A CAN/RS485/Ethernet EN50549,VDE4105, G99 IEC61000, IEC62477
Max. Output Power
Rated Output Power
PF
AC Connection
Max. Efficiency
Transformer
Communication
Grid-tied Certificates
Safety & EMC Certificates
Auxiliary Inverter Device
AC Charger(OPTION)	Min.40kW~Max.400kW Min.60kW~Max.420kW Max. 540kW
Solar Charger(OPTION)
PCS Expansion(OPTION)
Cooling System
Battery Cabin	HVLC Fans
PCS Cabin
Protection Device
Fire Suppressant	Aerosol (CE) first ，water inlet valve reserved Smoke,temperature,harmful gas,water immersion,door’s open
Sensor
EMS
Display and Monitor	Local screen Energy management and coordinated control of energy storage system
Function

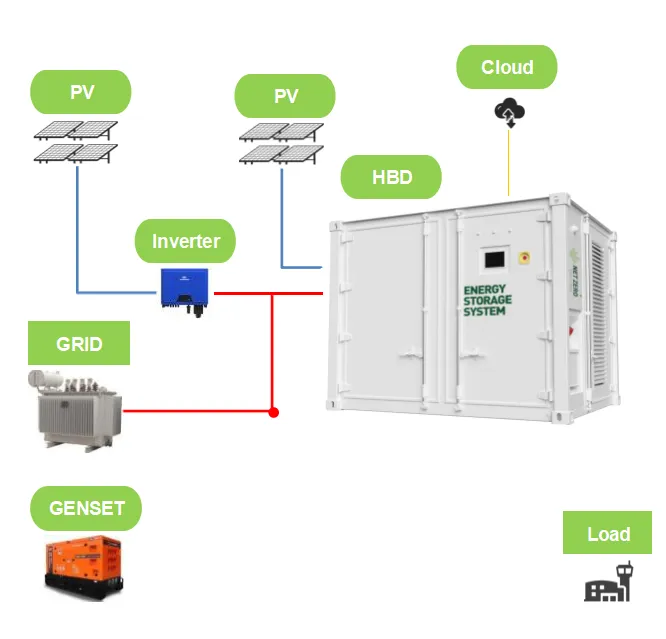

Typical Application
