HBD-20kVA

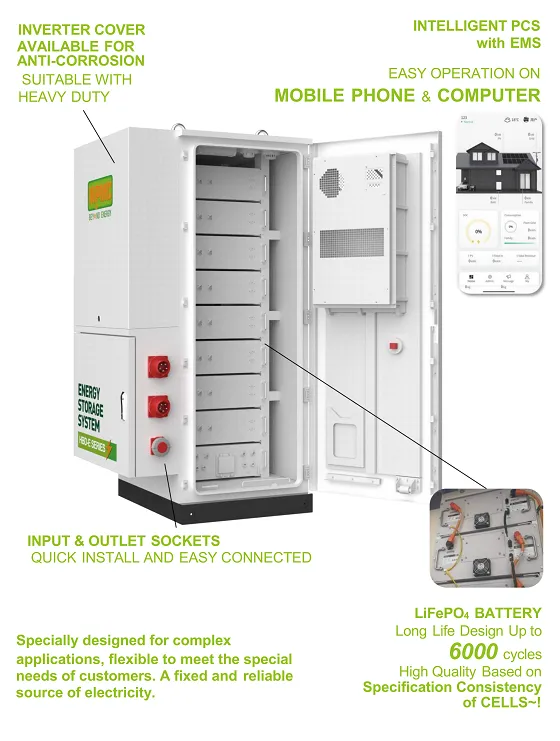

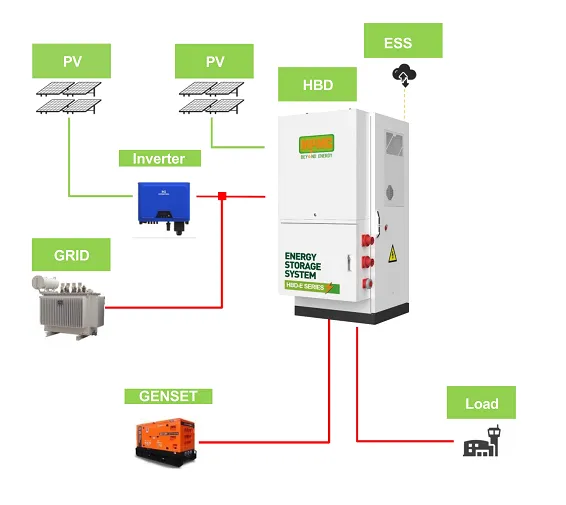

HBD® -E is a new range of secure integrated Battery Energy Storage System. It redefines convenient energy storage with its fully integrated, all-in-one design. This secure system combines LFP batteries, a hybrid inverter, and intelligent controls in a modular solution. It connects directly to PV arrays, the grid, or generators, enabling emission-free operation and reduced grid reliance. Developed to ensure power quality and provide emergency backup, the E-Series is an ideal, scalable solution for reliable and independent energy management.
|
General Information |
||
|
Rated Output Power@25℃ |
20 kVA |
|
|
Rated Power Factor |
0.8 lagging |
|
|
Rated Output Voltage |
380V@50/60Hz, 3ph. (400V & 415V available) |
|
|
Battery Storage Capacity |
Min. |
40.96 kWh |
|
Max. |
40.96 kWh |
|
|
External Connection |
Input |
Diesel generator socket≤58A，Grid socket≤58A，Solar array MC4≤30kWp |
|
Output |
32A 3P+N+PE Socket |
|
|
Protection Class |
IP54 |
|
|
Loading Dimension(WDH) |
1029*940*2000 mm |
|
|
Net Weight |
1000 kg |
|
|
Loading Capacity |
20'GP |
12 units |
|
40'HC |
24 units |
|
|
Discharge Temperature Range |
-20~50℃(> 45℃ derating) |
|
|
Max Altitude |
3000m(> 2000m derating) |
|
