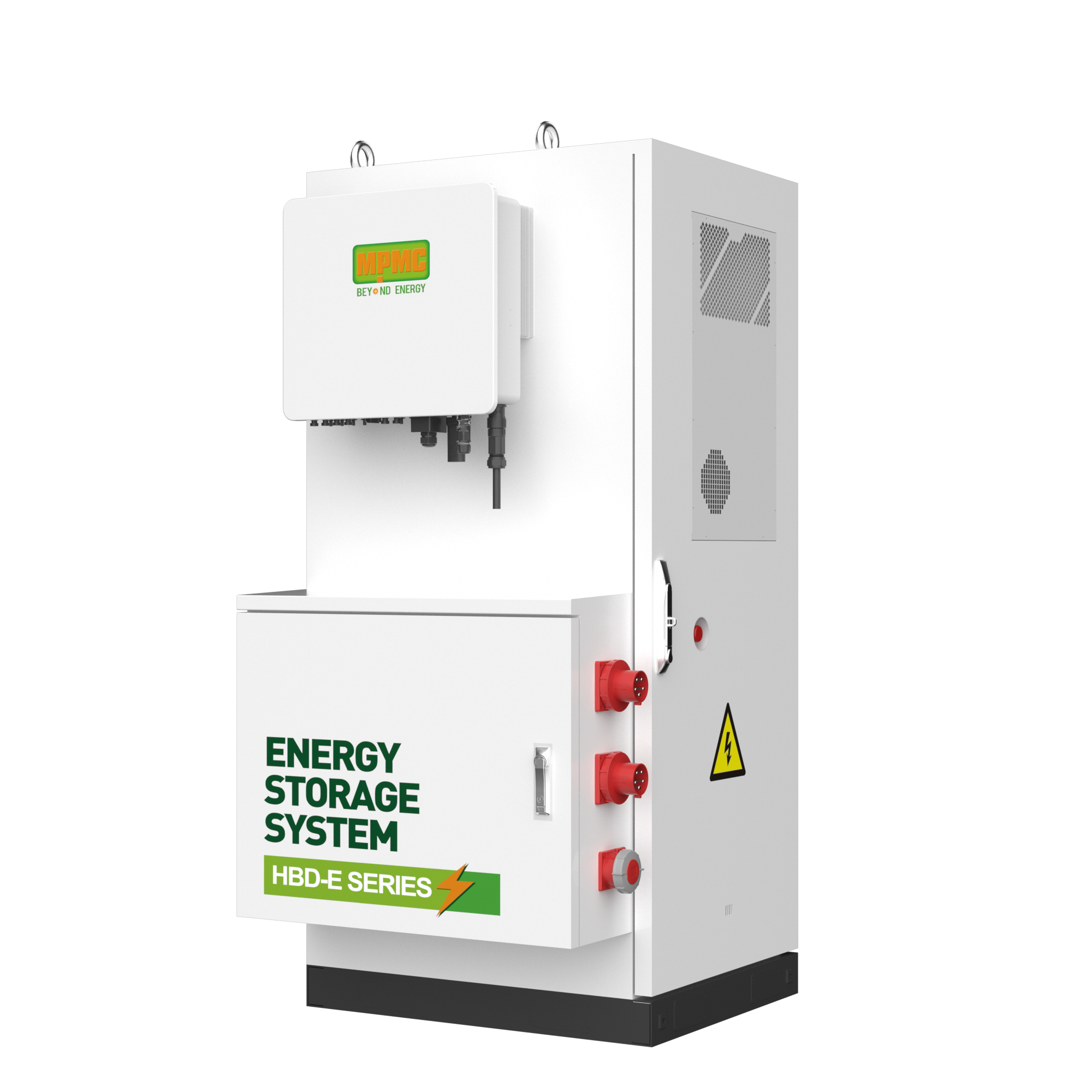

HBD® -E is a new range of secure integrated Battery Energy storage system. This fixed and modular solution includes batteries, hybrid inverter, HVAC and control system; Fire protection and auxiliary components for option.

HBD-10kVA
HBD-10kVA
HBD-10kVA
HBD-10 Battery Energy Storage System E Series CATALOG.pdf
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description

Design Standards

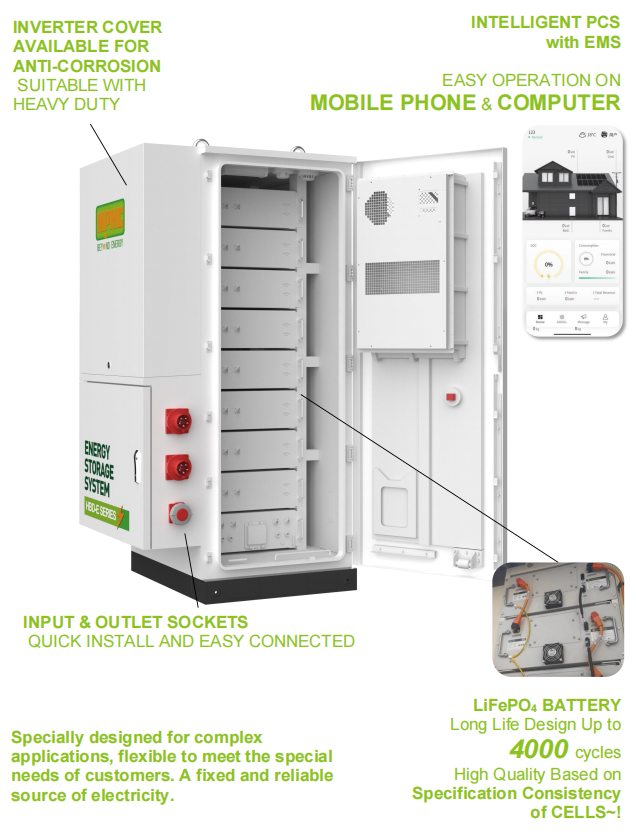

HBD® -E is a new range of secure integrated Battery Energy storage
system. It redefines convenient energy storage with its fully integrated,
all-in-one design. This secure system combines LFP batteries, a hybrid
inverter, and intelligent controls in a modular solution. It connects
directly to PV arrays, the grid, or generators, enabling emission-free
operation and reduced grid reliance. Developed to ensure power
quality and provide emergency backup, the E-Series is an ideal,
scalable solution for reliable and independent energy management.



Benefits

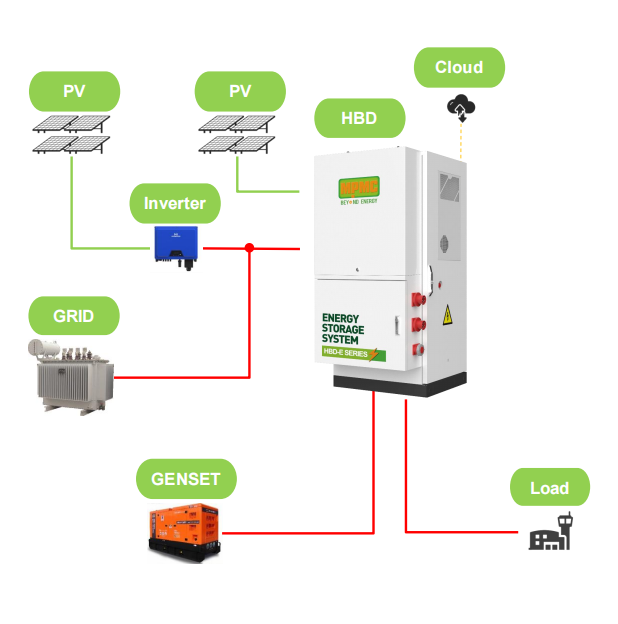

All-in-One Energy : Enabling direct connection to Grid、PV arrays and diesel generators for versatile power input.

Plug-and-Play : Pre-integrated components for simple , fast installation.Significantly reduces installation time and labor costs.



Smart Remote Control : Monitor and manage via APP , 4G , or WiFi.



Scalable & Flexible : Modular design supports parallel expansion.



Warranty
3 years after export from the factory or the Energy Throughput achieve 4590kWh per kWh which comes first



Specification

General Information

Rated Output Power@25℃

10 kVA

Rated Power Factor

0.8 lagging

Rated Output Voltage

380V@50/60Hz, 3ph. (400V & 415V available)

Battery Storage Capacity

Min.

30.72 kWh

Max.

40.96 kWh

External Connection

Input

Diesel generator socket≤29A, Grid socket≤29A, Solar array MC4≤20kWp

Output

16A 3P+N+PE Socket

Protection Class

IP54

Loading Dimension(W*D*H)

1029*940*2000 mm

Net Weight

700 kg

Loading Capacity

20'GP

12 units

40'HC

24 units

Discharge Temperature Range

-20~50℃(> 45℃ derating)

Max Altitude

3000m(> 2000m derating)





Typical Application
