MPMC HYBRID POWER STATION GB Series

GB® is a new range of secure integrated hybrid power station. With diesel generator, battery storage and hybrid solar inverter in one secure unit for option. GB® is mainly main power and decrease the consumption cost.

MPMC HYBRID POWER STATION GB Series

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Benefits

● Integrated installation,convenient storage and transportation;
● High return on investment and quick return;
● Simple operation and easy maintenance;
● Power and capacity can be expanded,meet different user needs;
● Accept customer customization,suitable for various scenarios;

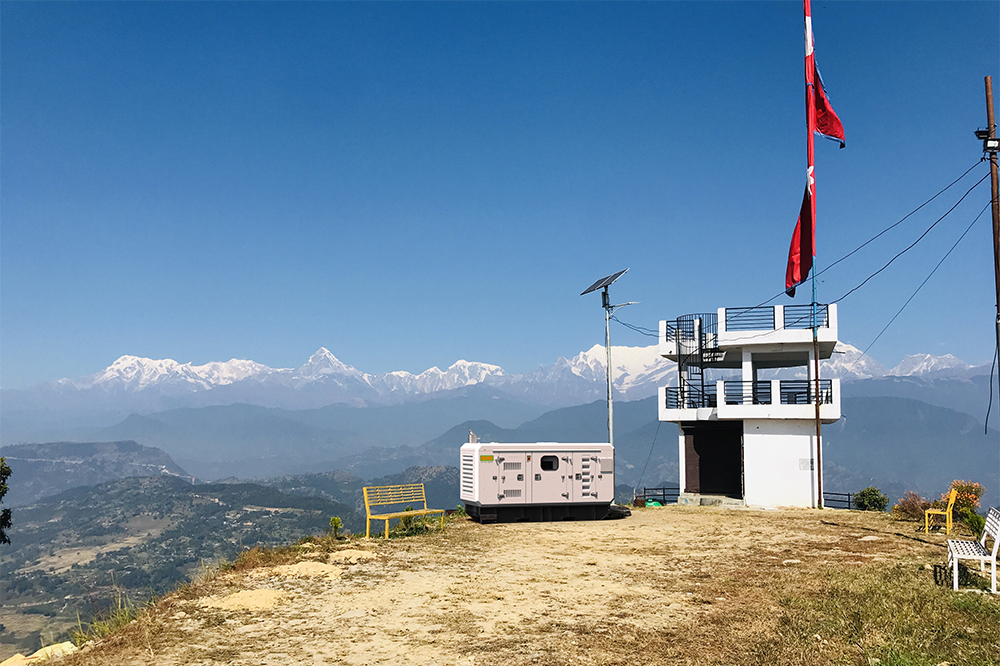

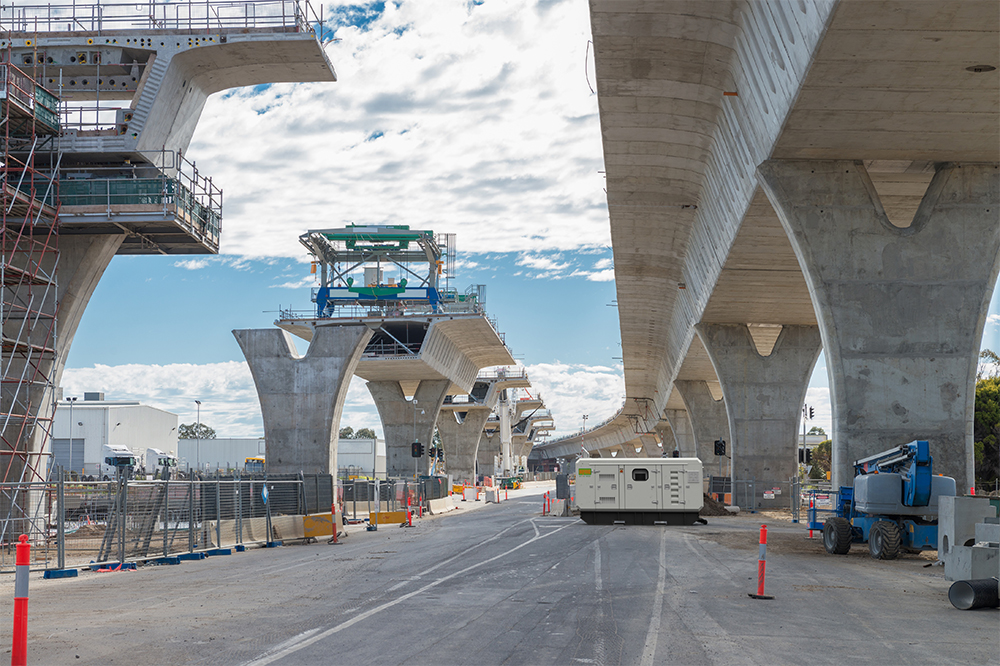

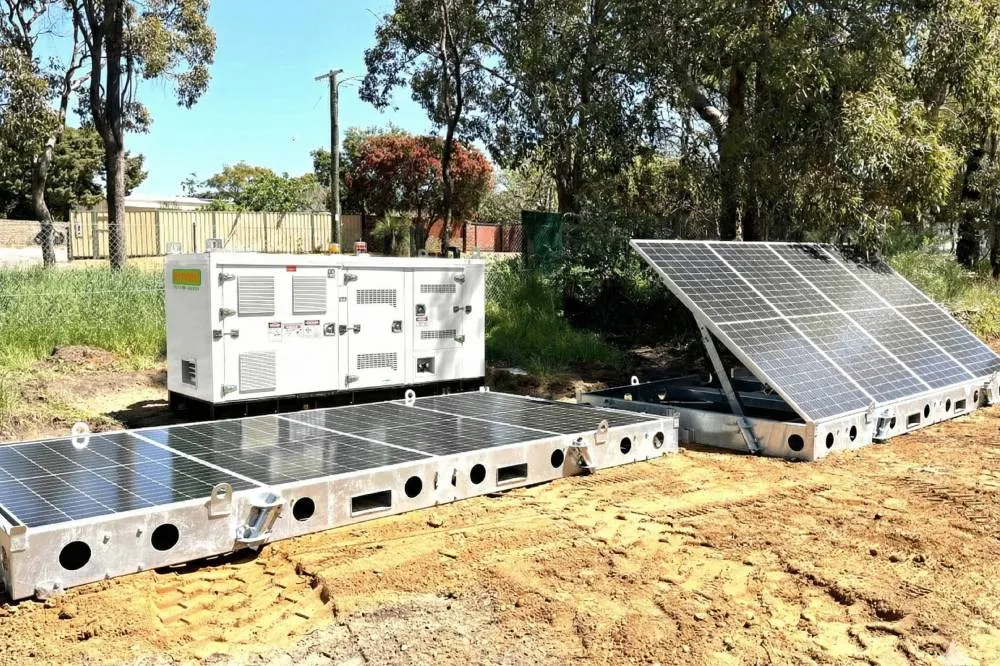

Scene Diagram

Warranty

● Battery Performance:6000 cycles(80%DOD)or 3 years after manufacture;
●Generator:18 months after manufactureor 1500 hours running time;

Why we need battery storage system that costs much morethan the traditional genset providing the same power?

Reduce theimpact of noise
Save money
It is moresuitable for rental

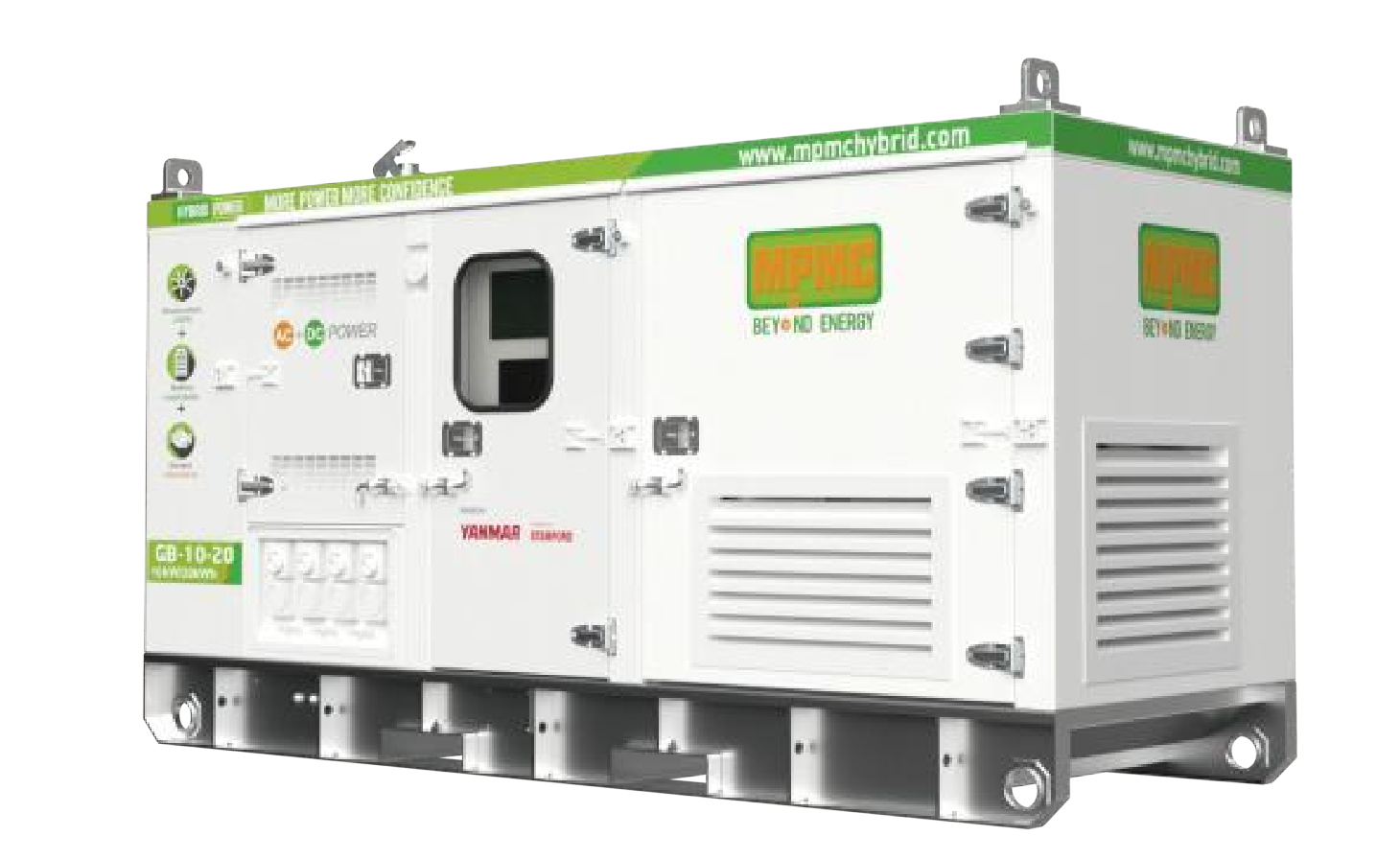

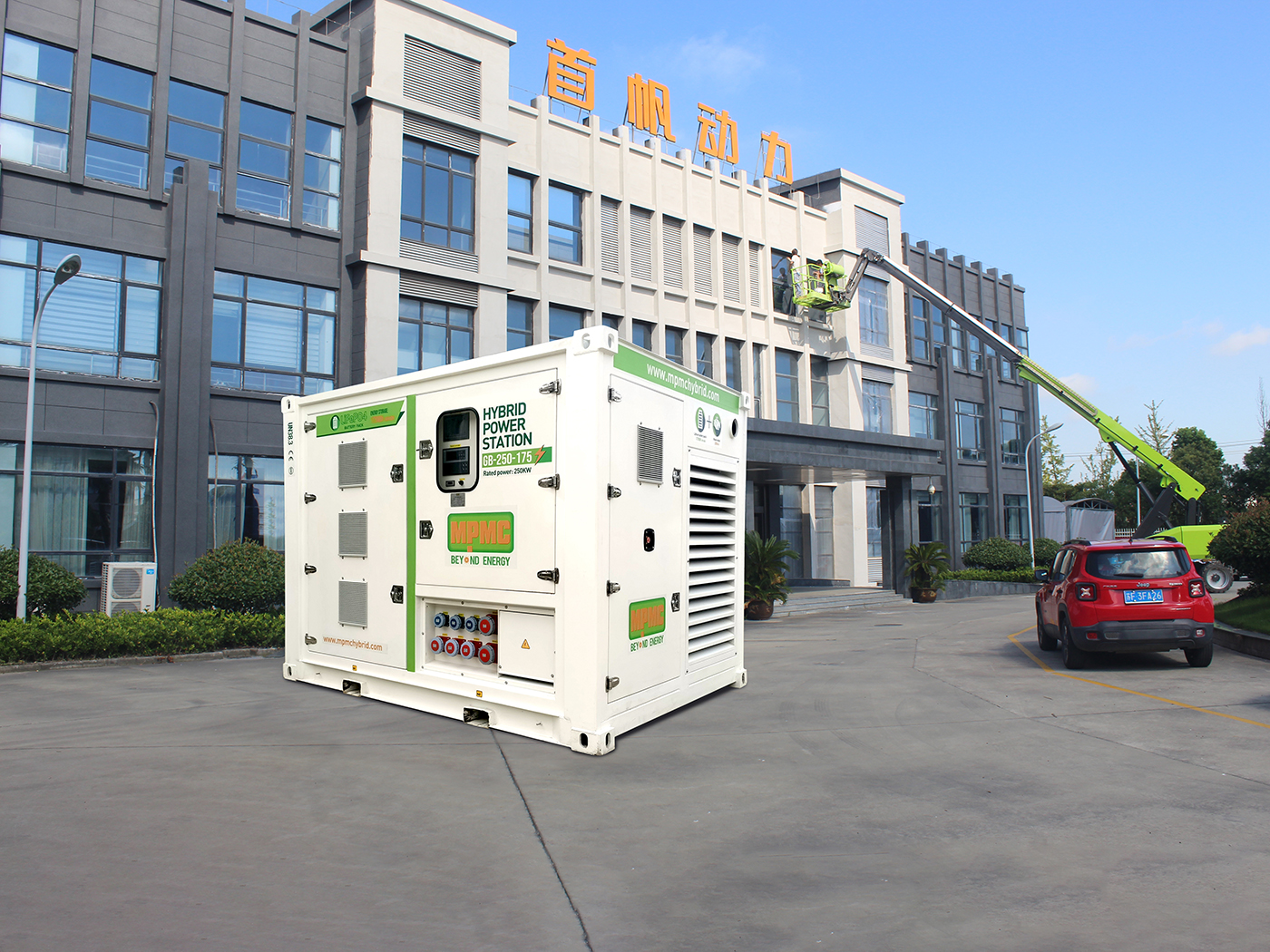

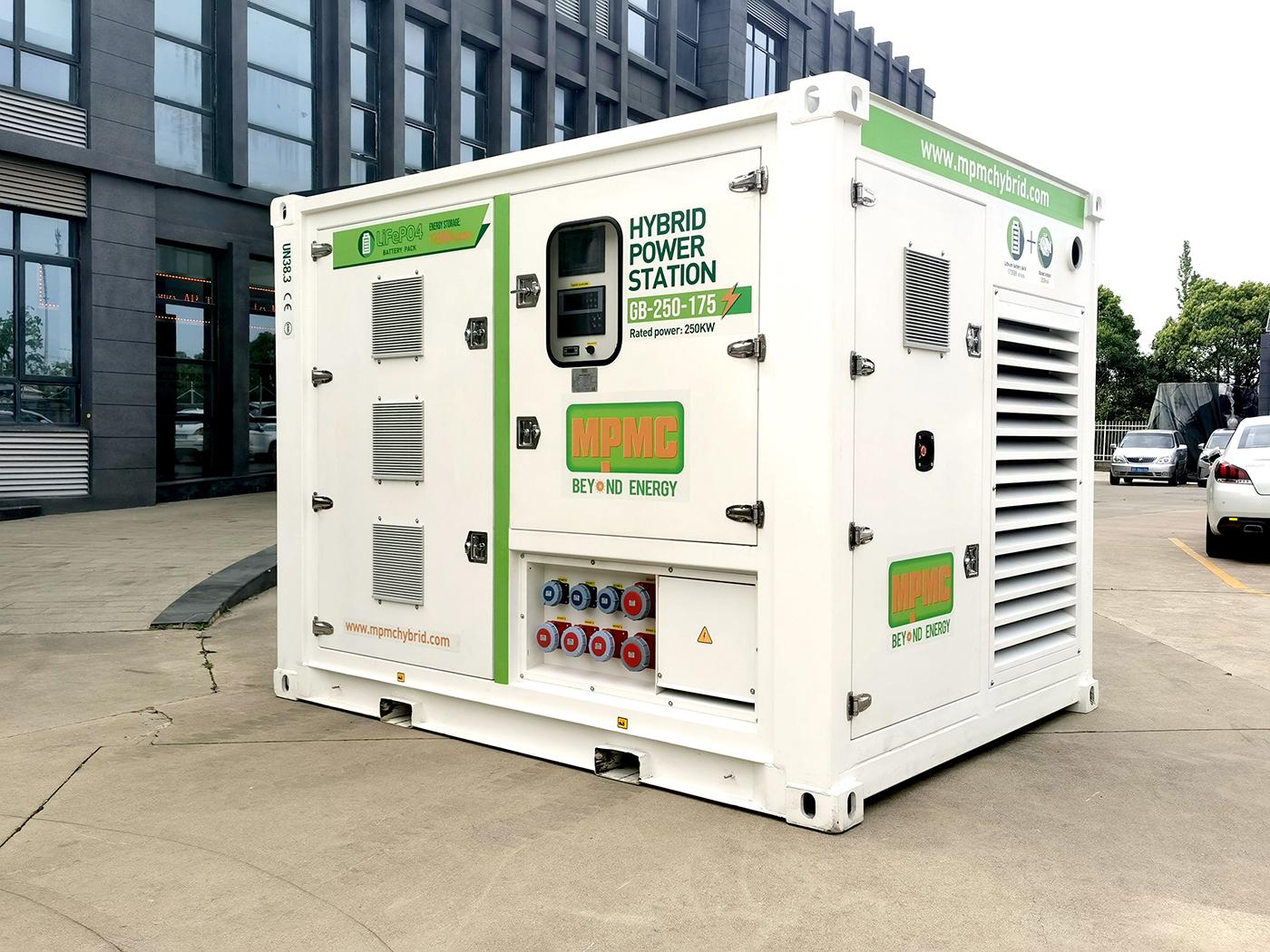

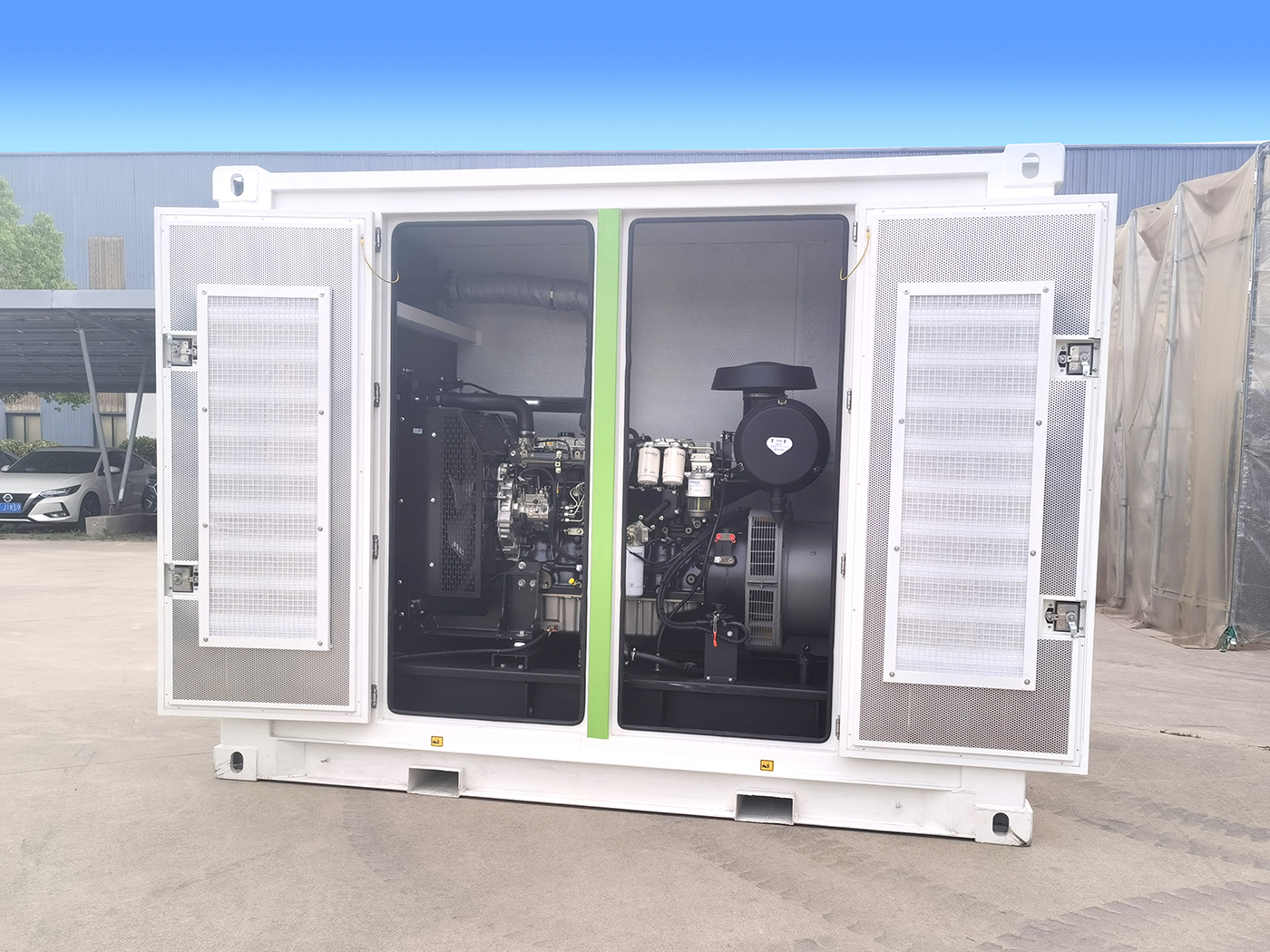

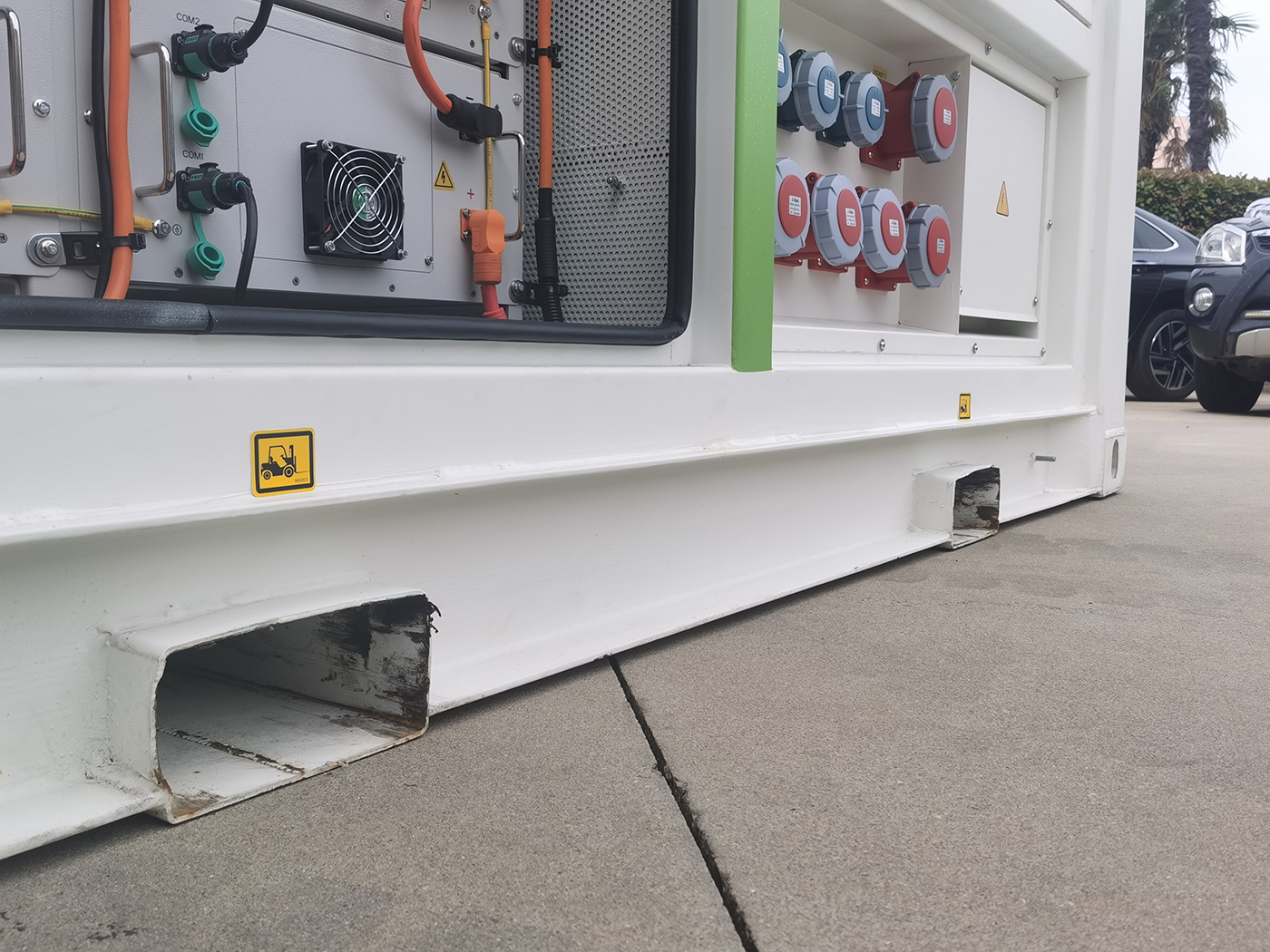

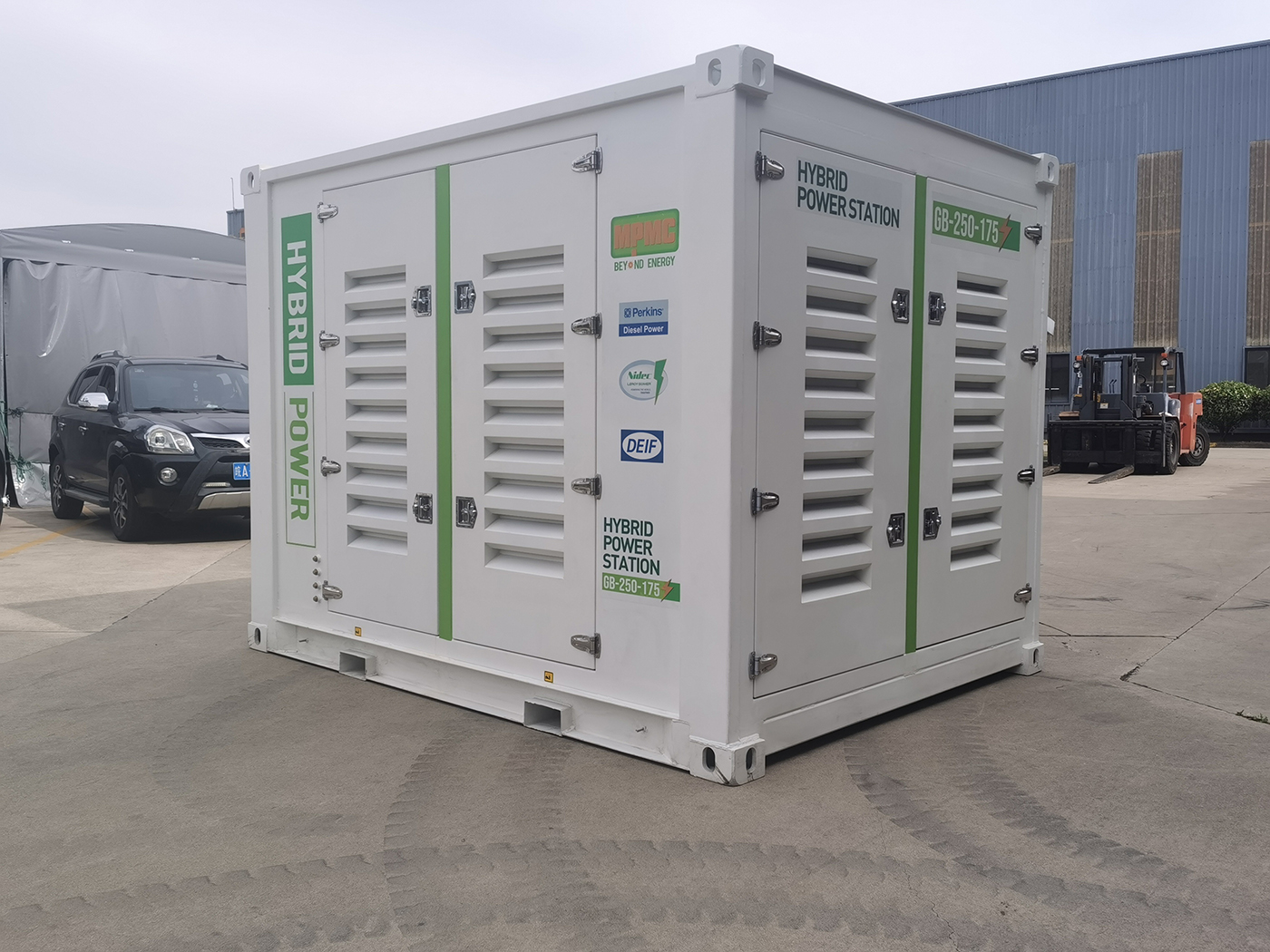

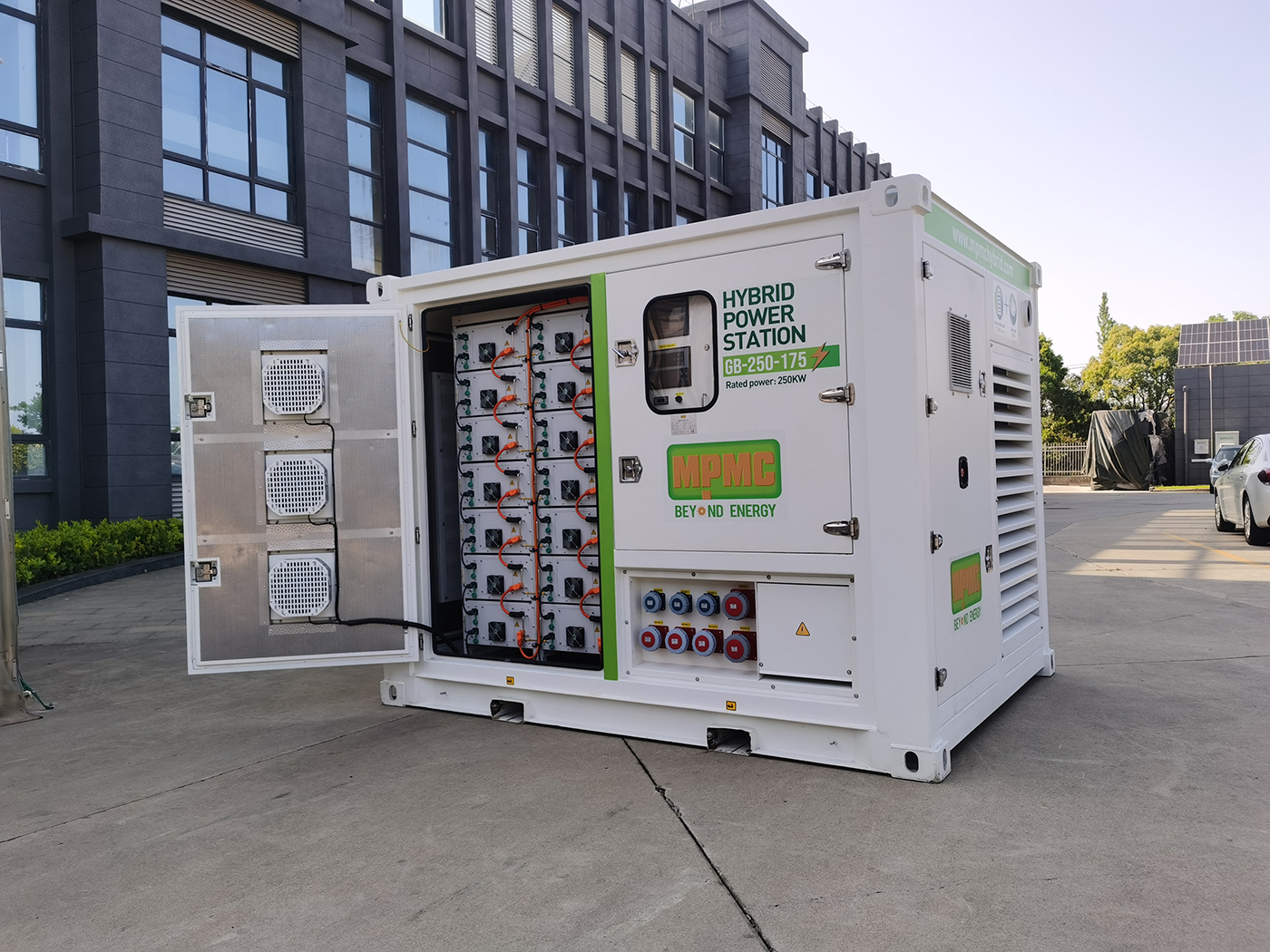

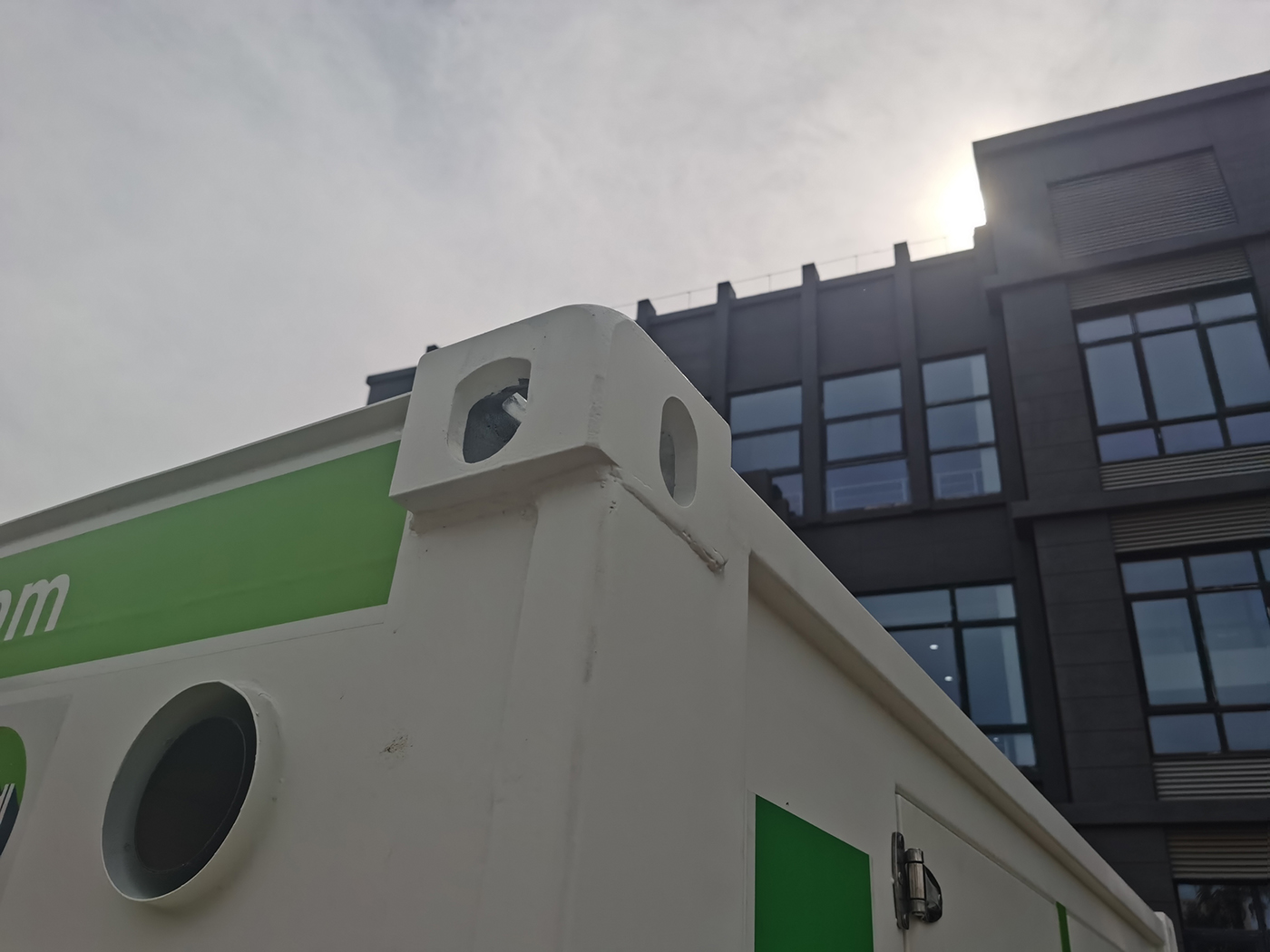

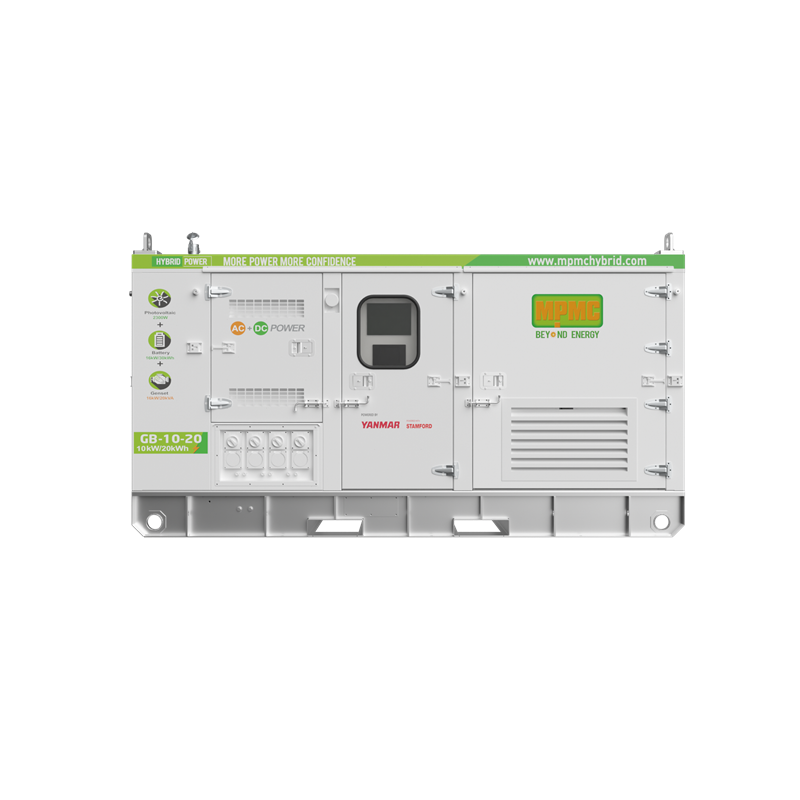

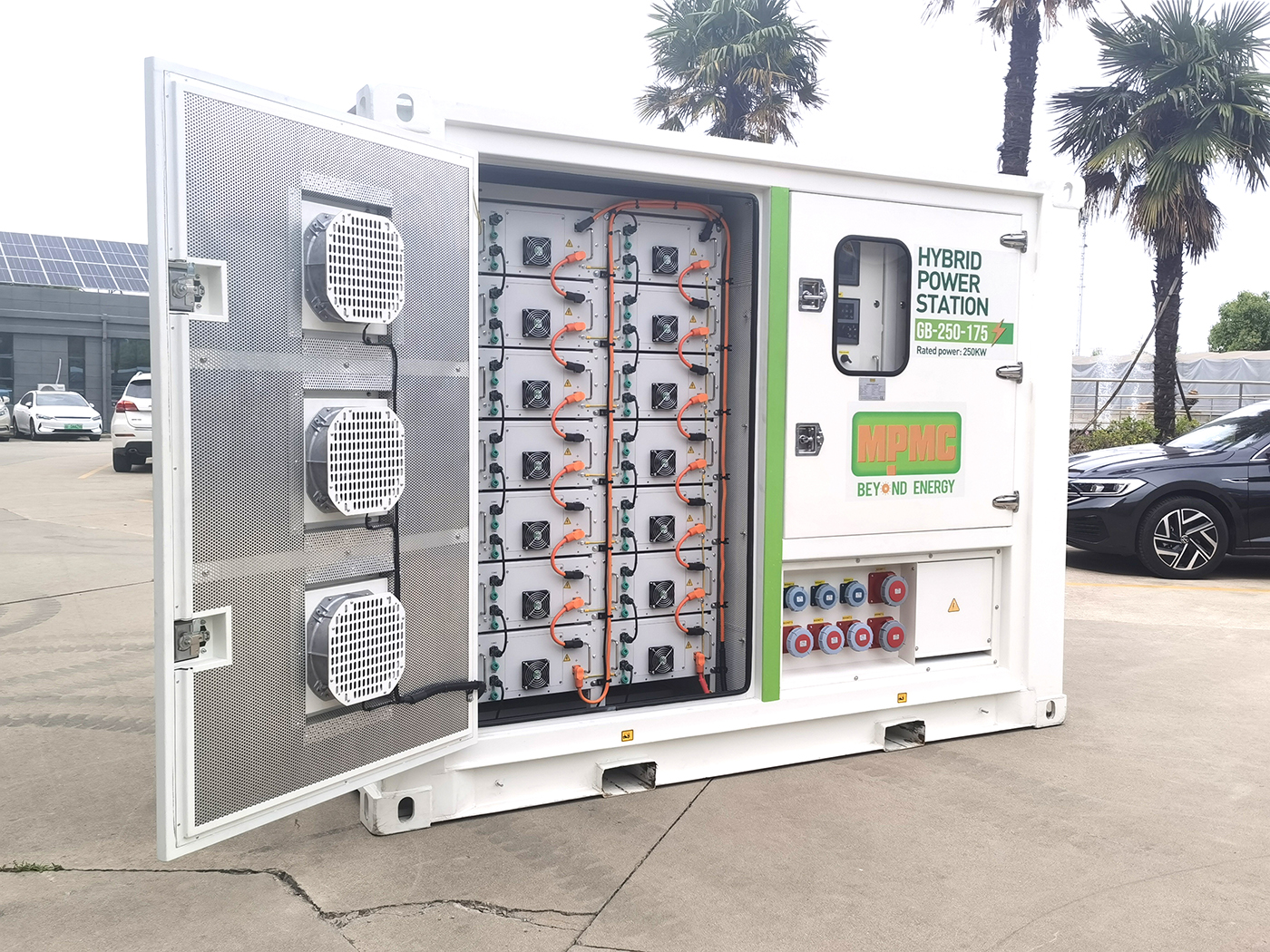

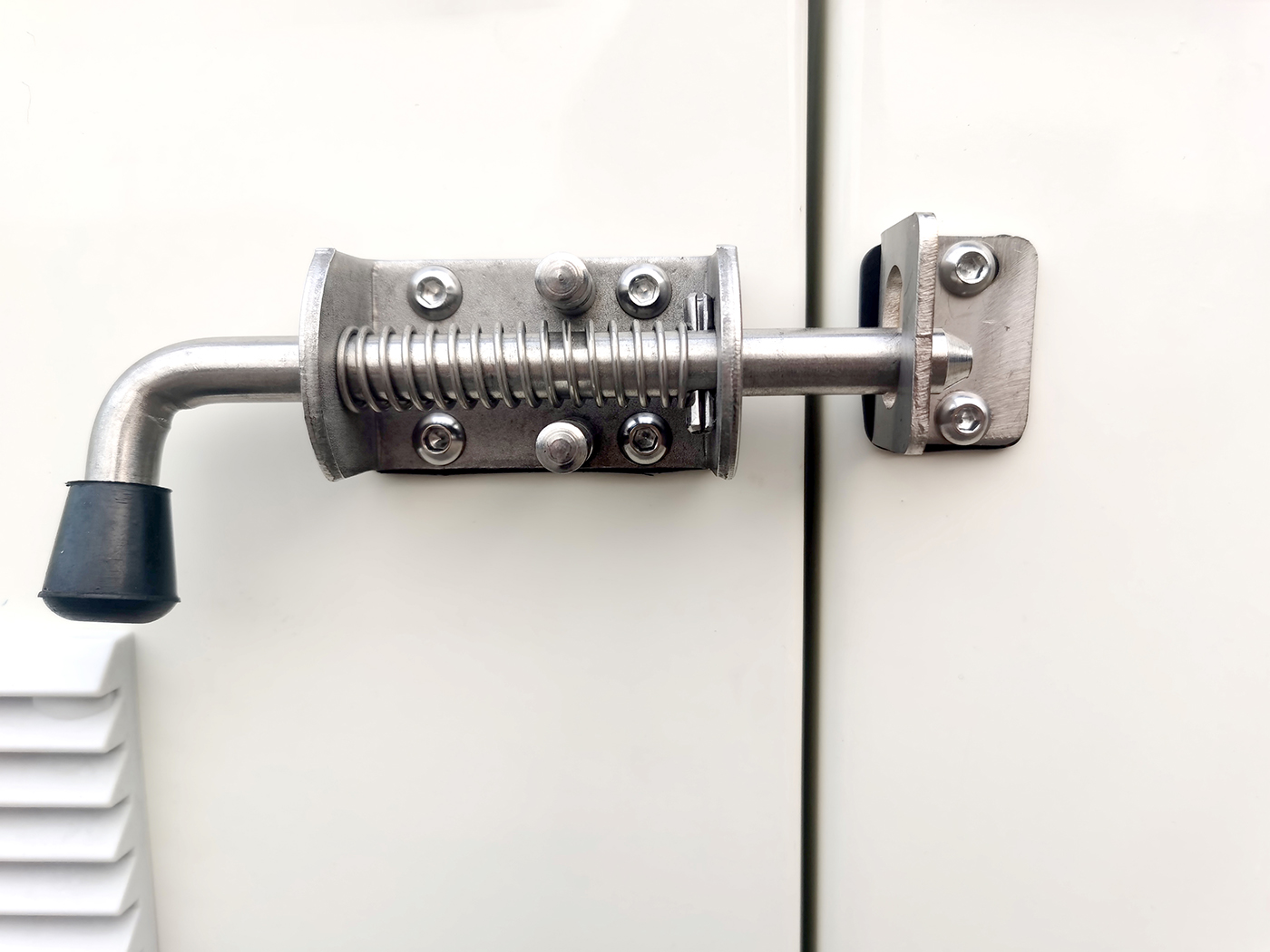

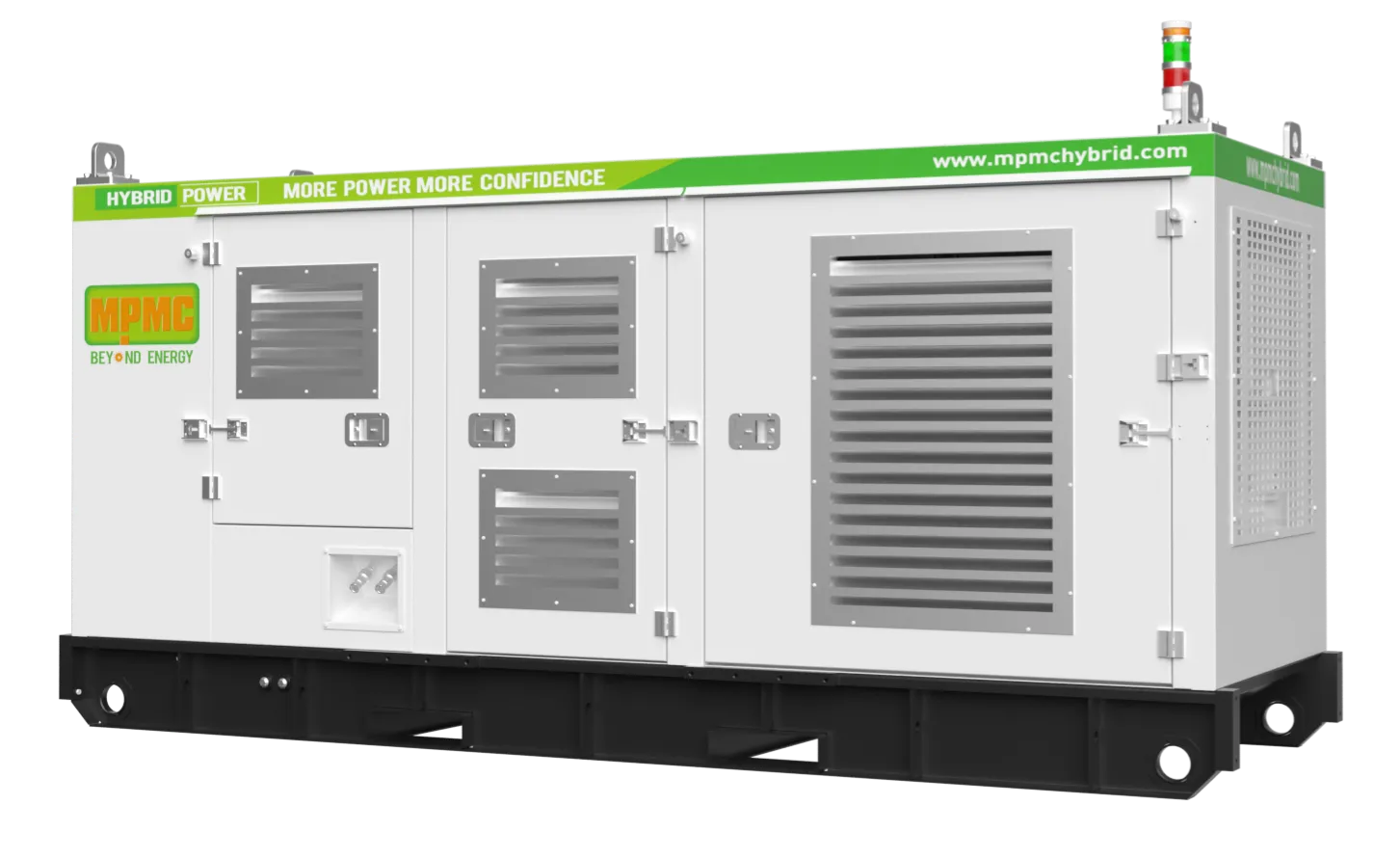

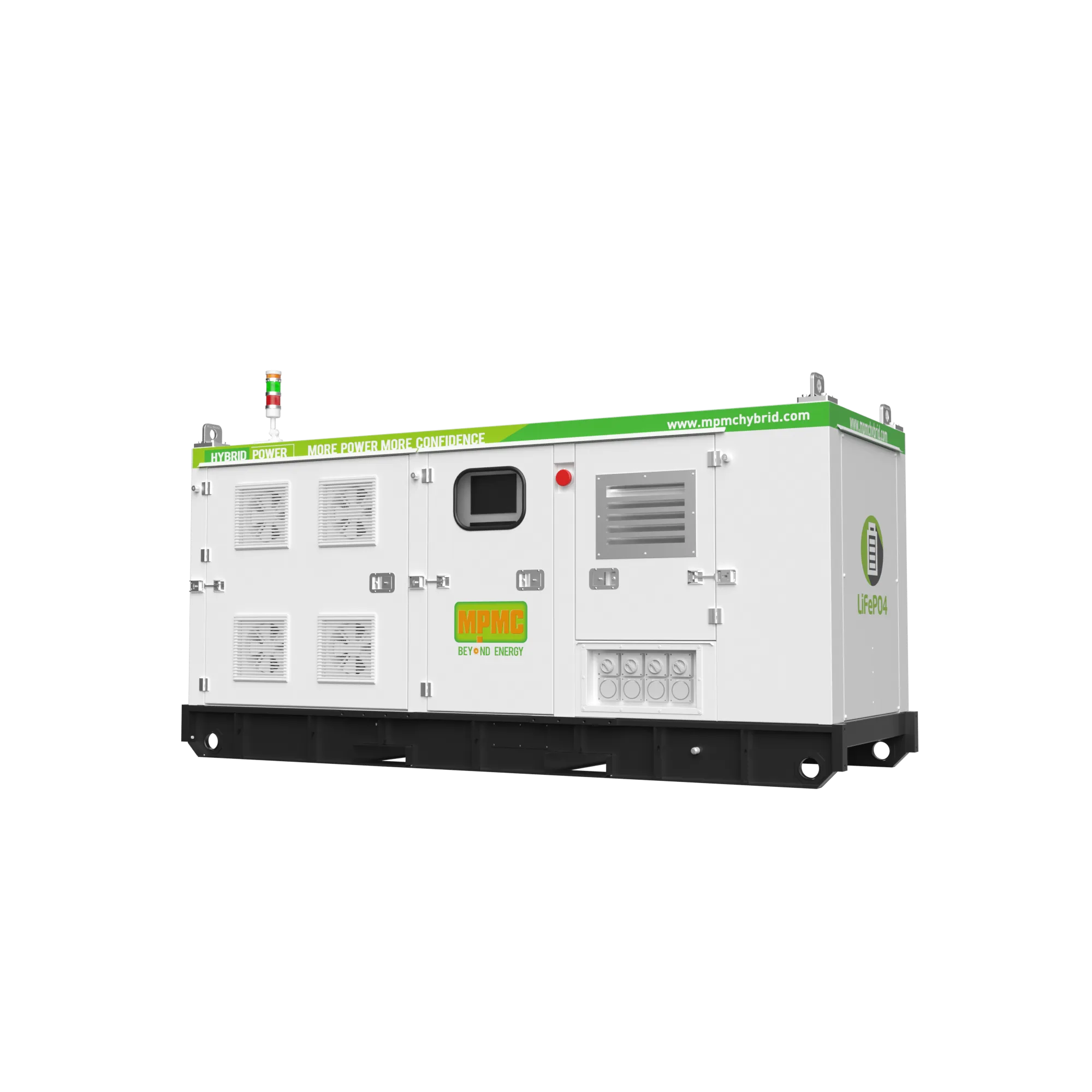

Product Picture

Specification

*Customization available

MODEL				GB-15S	GB-30S	GB-10	GB-30		GB-60
Rated Voltage			50HZ	208~240Vac	208~240Vac	380~415Vac	380~415Vac	380~415Vac	380~415Vac	380~415Vac
Rated Voltage			60HZ	208~240Vac	208~240Vac	380~415Vac	400Vac /480Vac (480Vac @3P3W)	400Vac /480Vac (480Vac @3P3W)	400Vac/ 480Vac (480Vac @3P3W)	400Vac/ 480Vac (480Vac @3P3W)
LFP Battery Energy Storage System @50Hz/60Hz	LFP Battery	Capacity kWh	Min.	20	30	10	40	100	100	200
		Capacity kWh	Max.	40	60	40	60	100	100	200
		Rack Vot.	Vdc	51.2	51.2	51.2	410~614	358	358	716
	Inverters		Model	MIV-15S	MIV-15S*2	MIV-10	MPC-30	MPC-30	MPC-30*2	MPC-30*2
			kVA	15	30	10	30	30	60	60
			Phase	1	1	3	3	3	3	3
	Cooling System			Fan	Fan	Fan	Fan	HVAC	HVAC	HVAC
Generator Set@50Hz/ 60Hz	Max. Rated Power (Prime @ISO 8528)		kW	15	30	16	24	24	48	48
	Max. Rated Power (Prime @ISO 8528)		kVA	15	30	20	30	30	60	60
	Fuel Tank		L	100	200	100	100	200	200	300
Solar Panel	Panel Power		W	Not Included
Solar Panel	Total Power		W	Not Included
Dimensions	Loading		LWH (mm)	2950* 1150* 1500	3250* 1150* 1600	2950* 1150* 1500	3250* 1150* 1500	3900* 1150* 1900	3900* 1150* 1900	3900* 1600* 2000
	Loading Qty.		20GP	4	2	4	2	2	2	1
	Loading Qty.		40HC	8	6	8	6	6	6	3
	Expand		LWH (mm)	N/A	N/A	N/A	N/A	N/A	N/A	N/A
	Net.weight (kG)			2300	2500	2300	2500	3200	3300	4000

MODEL				GB-20	GB-90	GB-120	GB-120	GB-200	GB-200	GB-500
Rated Voltage			50HZ	380~415Vac	380~415Vac	380~415Vac	380~415Vac	400Vac	400Vac	380~415Vac
Rated Voltage			60HZ	380~415Vac	400Vac /480Vac (480Vac @3P3W)	400Vac /480Vac (480Vac @3P3W)	400Vac /480Vac (480Vac @3P3W)	400Vac	400Vac	380~480Vac
LFP Battery Energy Storage System @50Hz/60Hz	LFP Battery	Capacity kWh	Min.	20	200	200	400	400	1000	1000
		Capacity kWh	Max.	40	200	200	400	400	1000	1000
		Rack Vot.	Vdc	51.2	716	716	716	716	716	716
	Inverters		Model	MIV-10*2	MPC-30*3	MPC-30*4	MPC-30*4	MPC-100*2	MPC-100*2	MPC-500
			kVA	20	90	120	120	200	200	500
			Phase	3	3	3	3	3	3	3
	Cooling System			Fan	HVAC	HVAC	HVAC	HVAC	HVAC	HVAC
Generator Set@50Hz/ 60Hz	Max. Rated Power (Prime @ISO 8528)		kW	16	80	100	100	160	160	400
	Max. Rated Power (Prime @ISO 8528)		kVA	20	100	125	125	200	200	500
	Fuel Tank		L	100	300	300	800	800	1000	1000
Dimensions	Loading		LWH (mm)	2950* 1150* 1500	3900* 1600* 2000	3900* 1600* 2000	20GP	20GP	40HC	40HC
	Loading Qty.		20GP	4	1	1	1	1	N/A	N/A
	Loading Qty.		40HC	8	3	3	2	2	1	1
	Expand		LWH (mm)	N/A	N/A	N/A	N/A	N/A	N/A	N/A
	Net.weight (kG)			2400	4200	4400	6200	9000	16000	23000
