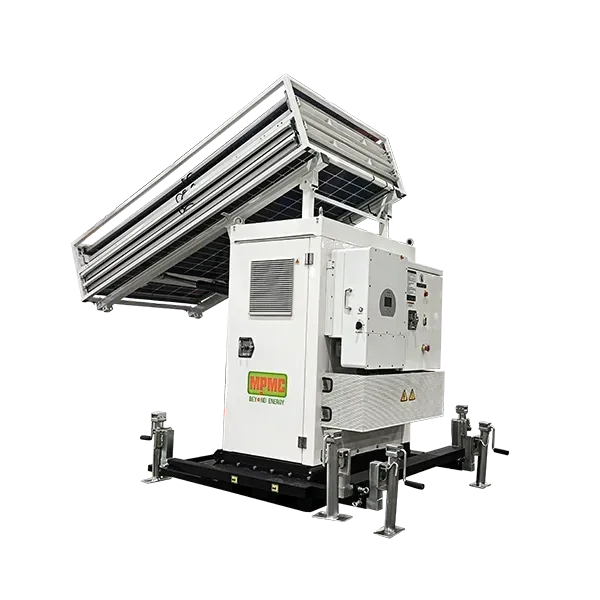

Solar+Battery Hybrid Power Station by optimizing the integration of solar power and energy storage systems, MPMC Hybrid Energy Solutions SB Series has lower costs than conventional solar & batteries storage systems on the market. MPMC SB Series have the advantages of free installation, inattentive operation & maintenance, and greatly shortening the investment return period.
The system ensures power supply at night and in remote areas without main grid, saving at least 3,600 kWh of electricity every year. By expanding the capacity, other than saving on electric bills, excess electricity can also be sold into the grid.
Based on a typical use of household electrical appliances and the shift to more energy - saving appliances, taking account of actual service time of each electrical appliance, the estimated daily household power consumption is9.58kWh and peak power is about 5940W. And system capacity can be expanded according to requirements.
*Customization available
MODEL |
SB-15S |
SB-10 |
SB-20 |
|||
Rated |
50HZ |
208~240Vac |
380~415Vac |
380~415Vac |
||
60HZ |
208~240Vac |
380~415Vac |
380~415Vac |
|||
LFP |
LFP |
Capacity |
Min. |
20 |
10 |
20 |
Max. |
30 |
30 |
30 |
|||
Rack Vot. |
Vdc |
51.2 |
51.2 |
51.2 |
||
Inverters |
Model |
MIV-15S |
MIV-10 |
MIV-10*2 |
||
kVA |
15 |
10 |
20 |
|||
Phase |
1 |
3 |
3 |
|||
Cooling |
Fan |
Fan |
Fan |
|||
Solar |
Panel |
W |
500 |
500 |
500 |
|
Total |
W |
21000 |
12000 |
24000 |
||
Dimensions |
Loading |
L*W*H(mm) |
2250*1650*2250 |
2250*825*2250 |
2250*1650*2250 |
|
Loading |
20GP |
3 |
7 |
3 |
||
40HC |
7 |
14 |
7 |
|||
Expand |
L*W*H(mm) |
2250*47640*2250 |
2250*23820*2250 |
2250*47640*2250 |
||
Net.weight (kG) |
2970 |
2570 |
3270 |
