HBL Series Hybrid Power Lighting Tower

The HBL Series Hybrid Power Lighting Tower is equipped with 4*150W LED lamps / 4*250W LED lamps / 4*350W LED lamps .

HBL Series Hybrid Power Lighting Tower

MLT4YL-600DHBL Datasheet-Yanmar.pdf

MLT4KL-1000DHBL Datasheet-Kubota.pdf

MLT4KL-600DHBL Datasheet-Kubota.pdf

MLT4KL-1400DHBL Datasheet-Kubota.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Video

Features

MPMC mobile light towers focus on improving product reliability and durability by improving fuel consumption efficiency; lowering operating costs and maintenance costs.

Product performance and advantages

● Environment friendly and resource saving ; Strong structure and easy operation;

● More than 9 hours lighting time by storage energy; Silent ligthing at night by LFP batteries;

● Low noise charging for daytime(less than 63dB(A)); BMS for LFP batteries protection;

● Auto control lights at day and night;

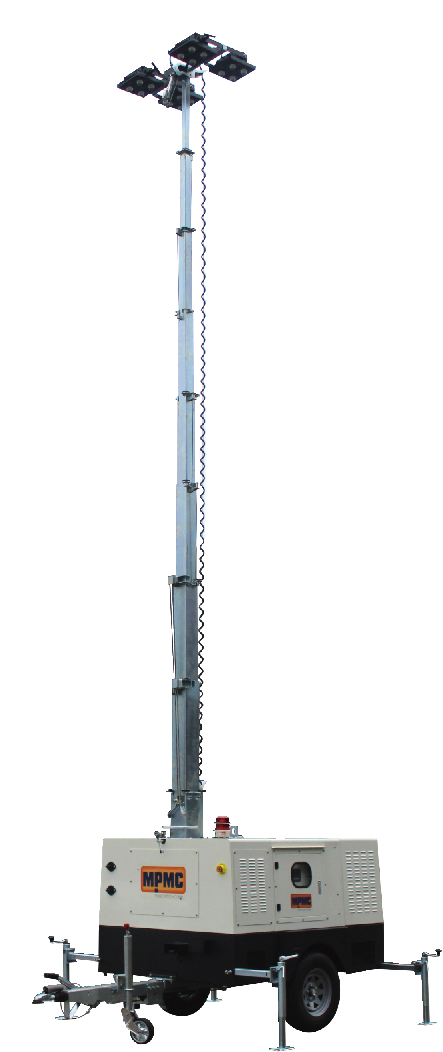

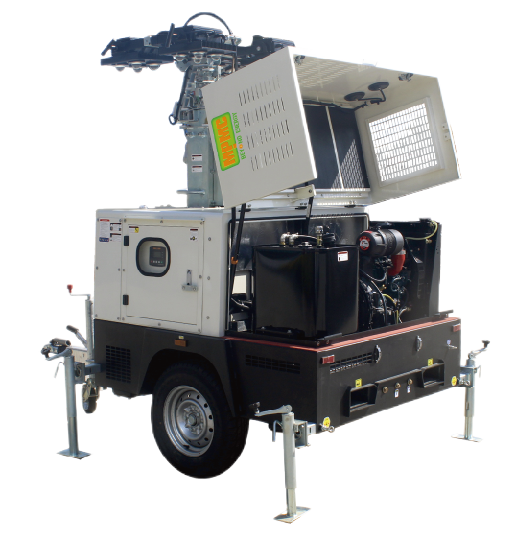

Product Picture

Technical Data

	Hybrid Lighting Tower ( HBL Series )








	MLT4KL-1400DHBL	MLT4KL-1000DHBL	MLT4KL-600DHBL
Light coverage (average 5 luxes)	36200㎡	30380㎡	18200㎡
Light coverage (average 20 luxes)	9360㎡	7750㎡	4470㎡
Lamps	4 x 350W LED	4 x 250W LED	4 x 150W LED
Mast	Hydraulic	Hydraulic	Hydraulic
Highlights	✔ Environment friendly and resource saving ✔ Silent lighting at work by LFP batterie ✔ Auto control lights at day and nights ✔ Easy transport ✔ Sturdy and durable ✔ BMS for LFP batteries protection ✔ On-road trailer
Performance data
Transport Efficiency	40’HC 7	40’HC 7	40’HC 7
Mast Height	9m	9m	9m
Lights	4 x 350W 170Lm/W LED	4 x 250W 170Lm/W LED	4 x 150W 200Lm/W LED
Genset Output (PRP)	6kW	6kW	3kW
Battery capacity	16.07kWh LFP	16.07kWh LFP	16.07kWh LFP
Brightness power by Battery(25%)	45 hours	64 hours	106 hours
Brightness power by Battery(50%)	23 hours	32 hours	54 hours
Brightness power by Battery(75%)	15hours	21 hours	35 hours
Brightness power by Battery(100%)	12hours	16 hours	27 hours
Battery Charging Time	3 hours	3 hours	6 hours
Operating temperature (min/max)	-10℃~50℃	-10℃~50℃	-10℃~50℃
Protection Class	IP54(Bess),IP23(Gen Set)	IP54(Bess),IP23(Gen Set)	IP54(Bess),IP23(Gen Set)
Engine
Type	Diesel	Diesel	Diesel
Model	Kubota Z482-3B	Kubota Z482-3B	Kubota Z482-B
Net Continuous power	6.9kW	6.9kW	4.1kW
Speed	3000rpm	3000rpm	1800rpm
Coolant	Water	Water	Water
Number of cylinders	2	2	2
Alternator
Model	MD6.0-48 MPMC	MD6.0-48 MPMC	MD3.0-48 MPMC
Rated output	6kVA	6kVA	3kVA
Insulation / Enclosure protection	H/23	H/23	H/23
Fuel consumption
Fuel Tank Capacity	100L	100L	100L
Automony	185hours	248hours	360hours
Battery
Model	MF51314	MF51314	MF51314
Type	LiFePO4	LiFePO4	LiFePO4
Spec.	314Ah 51.2V 16.07kWh	314Ah 51.2V 16.07kWh	314Ah 51.2V 16.07kWh
Cycle Life	6000	6000	6000
Mast
Type	Hydraulic	Hydraulic	Hydraulic
Rotation	355°	355°	355°
Maximum height	9m	9m	9m
Maximum wind speed	100km/h	100km/h	100km/h
Enclosure and trailer
Type	On-road with Parking hand break and Overrun device	On-road with Parking hand break and Overrun device	On-road with Parking hand break and Overrun device
Maximal Moving Speed	80km/h	80km/h	80km/h
Base frame	Powder coating	Powder coating	Powder coating
Enclosure	Galvanized steel canopy and powder coating	Galvanized steel canopy and powder coating	Galvanized steel canopy and powder coating
Dimensions and weight
Dimensions (Towing)	3454x1756x2529mm (L x W x H)	3454x1756 x2529mm (L x W x H)	3454x1756 x2529mm (L x W x H)
Dimensions (Traction bar folding)	2270x2193x2529mm (L x W x H)	2270x2193 x2529mm (L x W x H)	2270x2193 x2529mm (L x W x H)
Dimensions (Deployed)	3454x2456x9552mm (L x W x H)	3454x2456x9552mm (L x W x H)	3454x2456x9552mm (L x W x H)
Dimensions (Shipping)	3398x1480x2529mm (L x W x H)	3398x1480x2529mm (L x W x H)	3398 x1480 x2529mm (L x W x H)
Weight	1550kg	1550kg	1500kg
